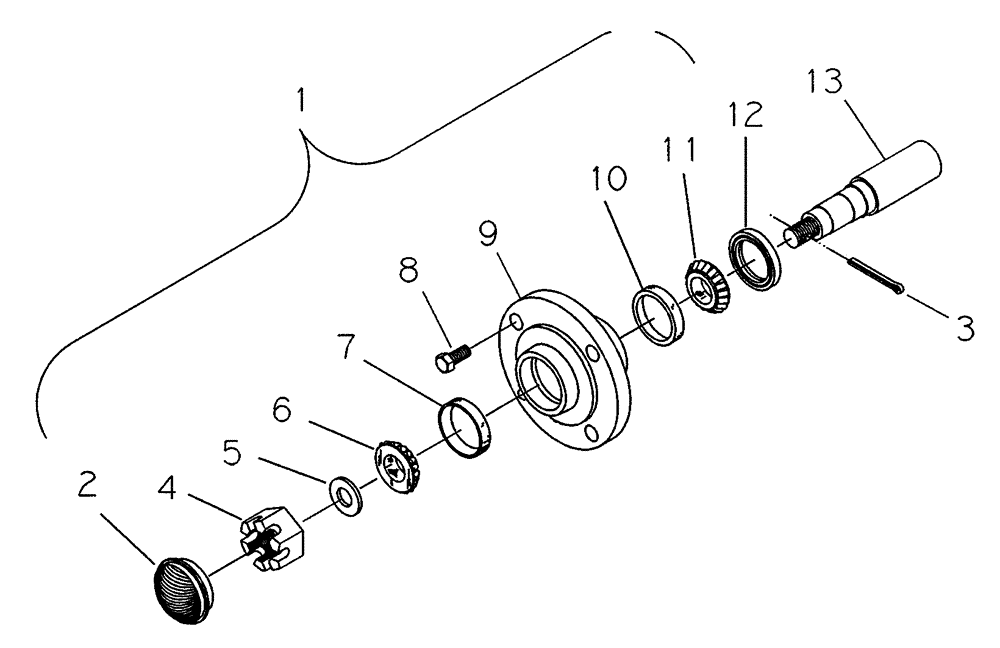

Запчасти Case IH TIGERMATE II (44.100.13) - 633 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

1

28063362

HUB ASSY.

1-1/2" Spindle, Includes Ref. 1 - 13

1шт.

1

28163311

HUB ASSY.

633, 4-Bolt, Includes Ref. 2-12

1шт.

2

28463300

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

Cotter pin, 5/32" x x1-1/2"

1шт.

4

NSS

NOT SOLD SEPARAT

NF Slotted Nut 3/4"

1шт.

5

NSS

NOT SOLD SEPARAT

SAE, 3/4"

1шт.

6

36724

BEARING CONE,19.07mm ID x 16.64mm W

Timken #LM11949 .75"

1шт.

7

36725

BEARING CUP,45.26mm OD x 12.06mm W

Timken#LM11910 1.78"

1шт.

8

198056

WHEEL BOLT,1/2" - 20 x 1.031"

NF Flat Head 1-1/4"

1шт.

9

NSS

NOT SOLD SEPARAT

Hub 633

1шт.

10

36723

BEARING CUP,59.16mm OD x 11.81mm W

Timken #LM67010 2.33" O.D

1шт.

11

36726

BEARING CONE,31.75mm ID x 16.76mm W

1.25",Timkem #LM67048

1шт.

11

84356153GV

BEARING

Value

1шт.

12

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

1.50" I.D x 2.33 O.D, CR 14975

1шт.

13

28363322

SPINDLE

1-1/2"

1шт.
