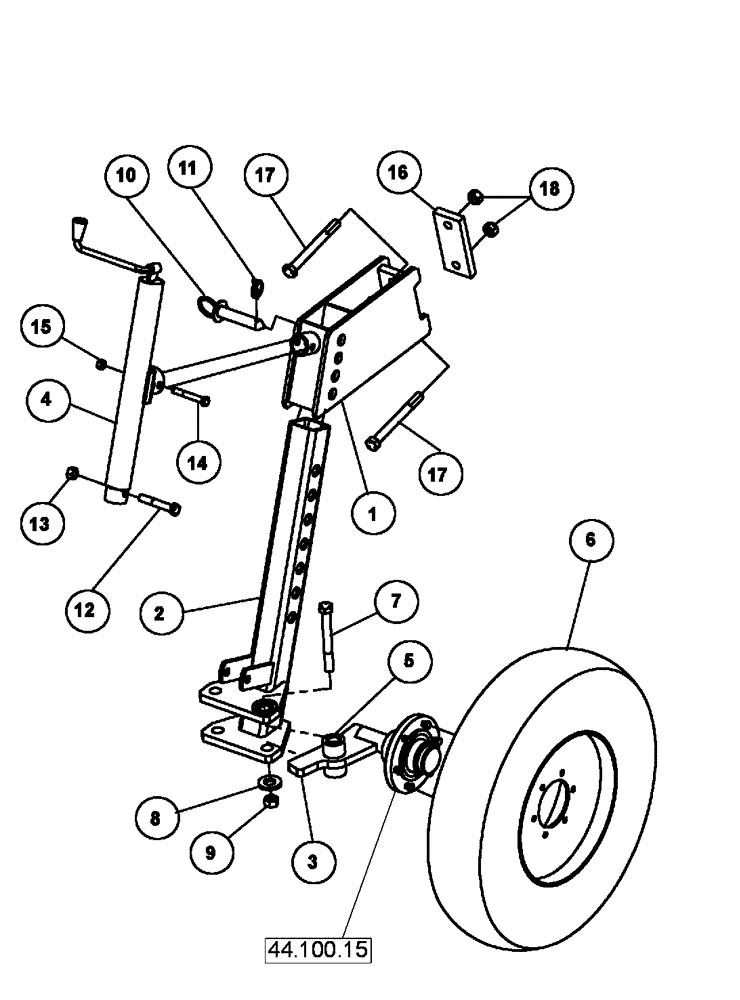

Запчасти Case IH TIGERMATE II (44.100.11) - PIVOT STABILIZING WHEEL 2008 AND AFTER UNITS (44) - WHEELS

1

87604180

BRACKET

Mount, Gauge

1шт.

2

87604184

BRACKET

Bracket, Gauge Wheel

1шт.

3

87604185

PIVOT

Inc. 710 Hub with 1.75" O.D. Spindle

1шт.

4

87604193

JACK

Weld

1шт.

For 14 Rear Truss

1шт.

4

84163961

JACK

Screw, Start Year: 01-DEC-09

1шт.

5

87584013

BEARING LINER,25.634 mm ID x 31.87 mm OD x 12.7 mm

Poly Bushing

2шт.

6

87451736

WHEEL ASSY.

7.6 x 15, Tube, Silver

1шт.

7

5971

BOLT,Hex, 1" - 8 x 6 3/8", Gr 5

1шт.

8

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

2шт.

9

86992219

LOCK NUT

1, Stover

1шт.

10

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

11

A30338

PIN

Klick

1шт.

12

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

13

85700693

NUT,5/8" - 11, Gr C

1шт.

14

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

15

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

16

87698627

BRACKET

Flat Mount

1шт.

17

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

6шт.

18

280375

NUT,3/4"-10, GC

6шт.
