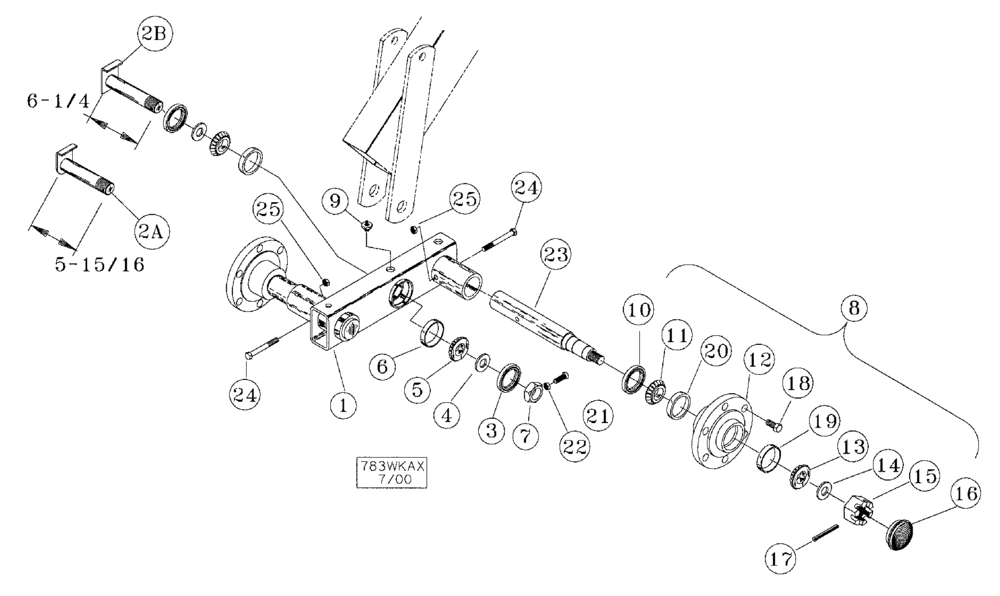

Запчасти Case IH TIGERMATE II (44.100.08[02]) - DOUBLE FOLD WALKING AXLE ASSEMBLY (WINGS ONLY) 48-1/2 THROUGH 60-1/2 MODELS - PRIOR TO 2006 (44) - WHEELS

1

06400450

TUBE ASSY.

RH Walking Axle Weld

1шт.

1

06400470

TUBE ASSY.

LH Walking Axle Weld

1шт.

2a

06400290

SPECIAL PIN

Axle, 10" And 12" Main Frame And Wings

1шт.

2b

04661850

PIN

Axle, 14" Single Fold Main Frame

1шт.

3

21932090

SEAL

2.094" Bore, CR#20952

2шт.

4

06201425

SPACER

2шт.

5

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

1.50", Timken #LM29749

2шт.

6

478793R1

BEARING CUP

2.56" O.D, Timken #LM29710

2шт.

7

14032409

NUT

1-1/2", Jam

1шт.

8

28178300

HUB ASSY.

783, 6-Bolt

2шт.

9

219-86

LUBE NIPPLE,1/8" NPTF

Self Tap

1шт.

10

145769C91

OIL SEAL

1.875" ID x 3.005" OD, CR# 18823

1шт.

11

663558R1

BEARING CUP

1шт.

12

28278300

HUB

1шт.

13

651817R1

BEARING CUP

1шт.

13

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

14

495-61094

WASHER,7/8" x 2 1/4" x .16"

1шт.

15

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

16

28477700

HUB CAP

1шт.

17

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

18

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2", NF x 1-15/32" Lug

6шт.

19

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

Cone

1шт.

20

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

Cone

1шт.

21

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8" x 1", Square Head Set

1шт.

22

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

23

28378351

SPINDLE

783 - 1-7/8", Middle Hole

2шт.

23

87327557

SPINDLE

783 - 1.875", End Hole

2шт.

24

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

25

86992215

LOCK NUT,1/2"-13, GC

Stover, Timken #LM501349

2шт.
