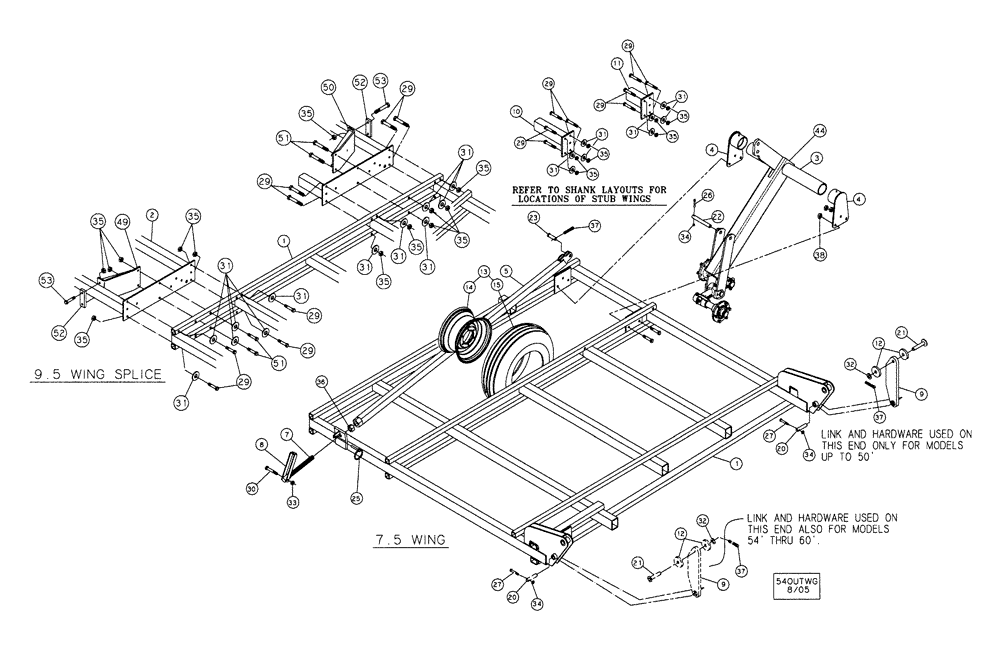

Запчасти Case IH TIGERMATE II (39.100.11) - 54-1/2 TO 60-1/2 DOUBLE FOLD OUTER WING (39) - FRAMES AND BALLASTING

1

86993832

TUBE ASSY.

Outer, 7-1/2, RH

1шт.

1

86993834

TUBE ASSY.

Outer, 7-1/2, LH

1шт.

1

86993822

TUBE ASSY.

Outer Base, 9-1/2, RH

1шт.

1

86993824

TUBE ASSY.

Outer Base, 9-1/2, LH

1шт.

2

86993597

TUBE ASSY.

Extension, 9-1/2, RH

1шт.

2

86993601

TUBE ASSY.

Extension, 9-1/2, LH

1шт.

3

06401100

ROCKSHAFT

RH, Wing without Tandem Assy.

1шт.

3

87337198

ROCKSHAFT

RH, Wing with Tandem Assy.

1шт.

3

06401150

AXLE

LH, Wing without Tandem Assy.

1шт.

3

87337200

ROCKSHAFT

LH, Wing with Tandem Assy.

1шт.

4

06401190

AXLE

Rockshaft

4шт.

5

06400820

STOP

Depth Adjust, 2 x 2

2шт.

7

06400840

ADJUSTER

Depth, 1-1/4 Dia. Thread

2шт.

Stamped 2 On End

1шт.

8

06400160

CRANKED HANDLE

2шт.

9

06402430

LINK

Wing Fold

2шт.

10

86993857

TUBE ASSY.

13-1/2

2шт.

11

86993852

TUBE ASSY.

9-1/2

2шт.

12

06220844

ROLLER

4шт.

13

10008256

LAND WHEEL

9.5L - 15SL, 8-Ply, Tubeless, Silver

2шт.

13

10008254

LAND WHEEL

9.5L - 15SL, 8-Ply, Tube, Silver

2шт.

14

10108254

WHEEL

8 x 15, 6-Hole with Guard, Silver

2шт.

15

NSS

NOT SOLD SEPARAT

9.5 x 15, 8-Ply Tire, Tube and Tubeless

2шт.

20

14891618

SPECIAL PIN,25.4mm OD x 114.3mm L

1 Dia. x 4-1/2

2шт.

21

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 Dia. x 4.30

2шт.

22

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 Dia. x 5.75

2шт.

23

25890100

KIT

1 Cylinder

2шт.

24

87629089

U-BOLT

4шт.

25

D33805

PIN

7/16 x 2, Klik

2шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

27

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

28

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

12шт.

29

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

30

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

31

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

32

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

33

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

34

86992213

NUT

3/8, NC, Stover

2шт.

35

85700693

NUT,5/8" - 11, Gr C

1шт.

36

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

37

432-1632

COTTER PIN,1/4" x 2"

2шт.

38

86993782

TUBE ASSY.

Front

2шт.

39

86993788

TUBE ASSY.

Rear

2шт.

40

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

8шт.

44

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

49

86993782

TUBE ASSY.

Front

2шт.

Used On 58-1/2 Through 60-1/2 Units

1шт.

50

86993788

TUBE ASSY.

Rear

2шт.

Used On 58-1/2 Through 60-1/2 Units

1шт.

51

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

52

06250333

WASHER

Backing

2шт.

53

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.
