Запчасти Case IH TIGERMATE II (39.100.09) - DOUBLE FOLD OUTER WING 38-1/2 THROUGH 50-1/2 MODELS (39) - FRAMES AND BALLASTING

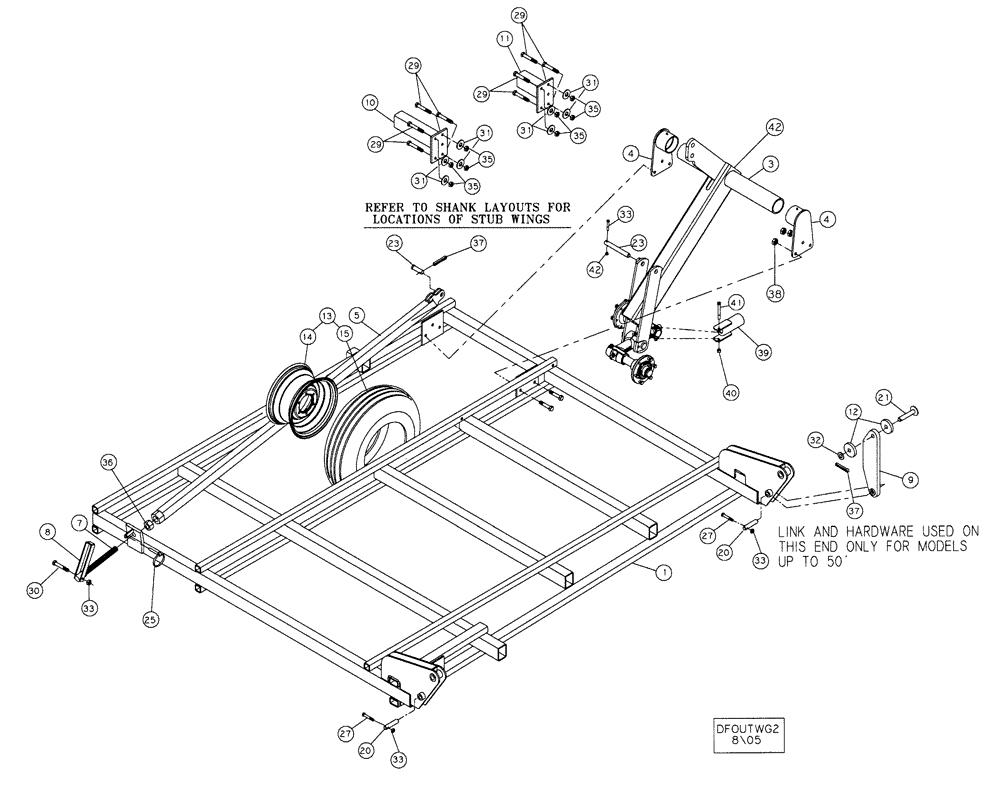

Схема запчастей Case IH TIGERMATE II - (39.100.09) - DOUBLE FOLD OUTER WING 38-1/2 THROUGH 50-1/2 MODELS (39) - FRAMES AND BALLASTING
42
4
7
11
1
31
42
33
8
29
32
33
35
31
4
37
29
35
33
40
10
23
13
31
31
21
9
38
5
12
3
30
29
27
39
35
14
35
29
20
15
23
37
33
20
25
27
36
41

Артикул

Название

Примечание

Количество

1

86993876

TUBE ASSY.

Outer, 5-1/2, Rh

1шт.

42 Thru 50 Machines

1шт.

1

86993878

TUBE ASSY.

Outer, 5-1/2, Lh

1шт.

42 Thru 50 Machines

1шт.

1

86993872

TUBE ASSY.

Outer, 5-1/2, Rh

1шт.

2009 And After Models

1шт.

1

86993874

TUBE ASSY.

Outer, 5-1/2, Lh

1шт.

2009 And After Models

1шт.

1

86993832

TUBE ASSY.

Outer, 7-1/2, Rh

1шт.

1

86993834

TUBE ASSY.

Outer, 7-1/2, Lh

1шт.

3

06401100

ROCKSHAFT

Rh, Wing Without Tandem

1шт.

3

87337198

ROCKSHAFT

Rh, Wing With Tandem

1шт.

3

06401150

AXLE

Lh, Wing Without Tandem

1шт.

3

87337200

ROCKSHAFT

Lh, Wing With Tandem

1шт.

4

06401190

AXLE

Rockshaft

4шт.

5

06400820

STOP

Depth Adjust, 2 x 2

2шт.

7

06400840

ADJUSTER

Depth

2шт.

Stamped 2 On End

1шт.

8

06400160

CRANKED HANDLE

2шт.

9

06402430

LINK

Wing Fold

2шт.

10

86993855

TUBE ASSY.

15-1/2, Red

2шт.

11

86993852

TUBE ASSY.

9-1/2, Red

2шт.

12

06220844

ROLLER

4шт.

13

10008256

LAND WHEEL

9.5L - 15SL, 8-Ply, Tubeless, Silver

2шт.

13

10008254

LAND WHEEL

9.5L - 15SL, 8-Ply, Tube, Silver

2шт.

14

10108254

WHEEL

8 x 15, 6-Hole With Guard, Silver

2шт.

15

NSS

NOT SOLD SEPARAT

9.5 x 15, 8-Ply Tire

2шт.

20

14891618

SPECIAL PIN,25.4mm OD x 114.3mm L

1 Dia. x 4-1/2, Requires Ref. 27 & Ref. 33

2шт.

21

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 Dia. x 4.30

2шт.

22

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 Dia. x 5.75

2шт.

23

25890100

KIT

3"X 1"Pin

2шт.

25

D33805

PIN

7/16 x 2, Klik

2шт.

26

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

27

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

28

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

12шт.

29

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

30

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

31

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

32

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

33

86992213

NUT

3/8, NC, Stover

1шт.

34

86992213

NUT

3/8, NC, Stover

2шт.

35

85700693

NUT,5/8" - 11, Gr C

1шт.

36

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

37

432-1632

COTTER PIN,1/4" x 2"

2шт.

39

87342062

COUNTERWEIGHT

Weight Wheel, Inc. 40 & 41, Used On 38.5 - 46.5 Units Only

1шт.

For Right Hand Walking Axle Only

1шт.

40

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

41

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

42

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

Выбрано товаров: 49
