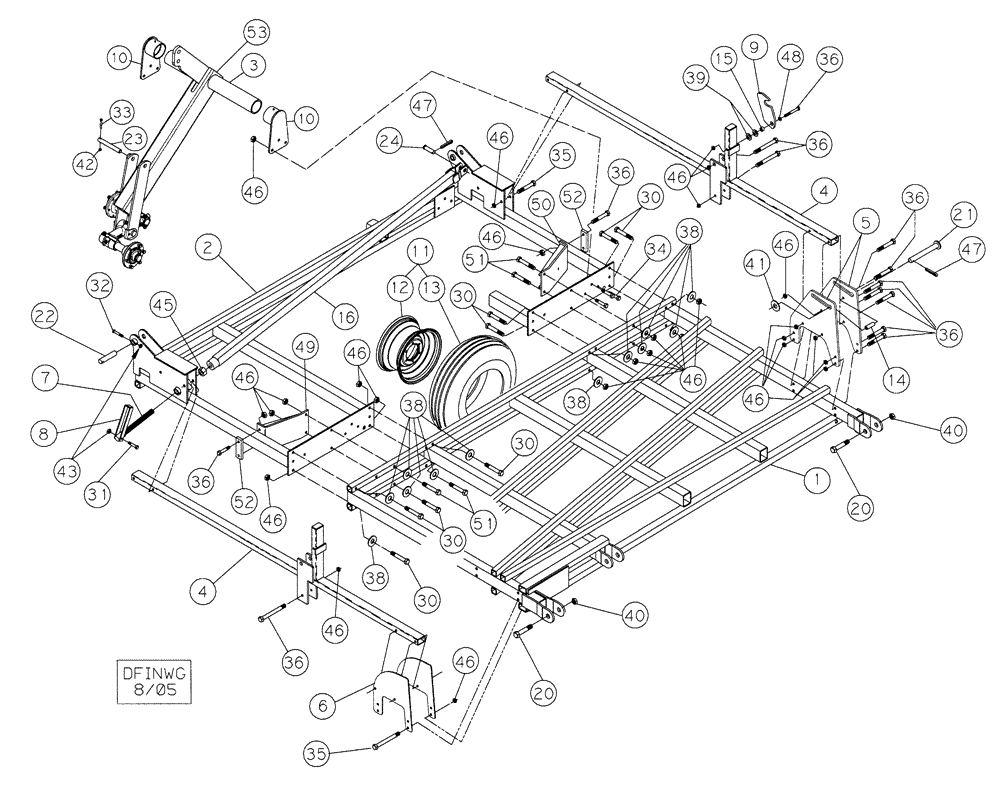

Запчасти Case IH TIGERMATE II (39.100.08) - DOUBLE FOLD INNER WING 38-1/2 THROUGH 50-1/2 MODELS (39) - FRAMES AND BALLASTING

1

86993793

TUBE ASSY.

7-1/2 Inner, Rh

1шт.

1

86993804

TUBE ASSY.

7-1/2 Inner, Lh

1шт.

1

86993840

TUBE ASSY.

9-1/2 Base, Rh

1шт.

1

86993842

TUBE ASSY.

9-1/2 Base, Lh

1шт.

2

86993806

TUBE ASSY.

9-1/2 Extension, Df, Rh

1шт.

2

86993808

TUBE ASSY.

9-1/2 Extension, Df, Lh

1шт.

3

06401100

ROCKSHAFT

Rh Wing, Without Tandems

1шт.

3

87337198

ROCKSHAFT

Rh Wing, With Tandems

1шт.

3

06401150

AXLE

Lh Wing, Without Tandems

1шт.

3

87337200

ROCKSHAFT

Lh Wing, With Tandems

1шт.

4

86993802

LUG

Wing, 7-1/2

4шт.

4

86993848

TUBE ASSY.

Wing, 9.5 And 7.5

4шт.

4

86993850

TUBE ASSY.

Wing, 9.5 And 5.5

4шт.

5

86993810

LUG

Cylinder, Df, Wing

4шт.

6

86993797

LUG

Wing, 7-1/2

4шт.

6

86993845

LUG

Mount, Truss, 9-1/2

4шт.

7

06400170

ADJUSTMENT SCREW,1 1/4" - 7 x 289.56mm

Depth, 1-1/2 Dia. Thread

1шт.

8

06400160

CRANKED HANDLE

1шт.

9

87413010

BAR ASSY.

Outer Wing

1шт.

10

06401190

AXLE

Rockshaft

2шт.

11

10008256

LAND WHEEL

9.5L - 15SL, 8-Ply, Tubeless, Silver

2шт.

11

10008254

LAND WHEEL

9.5L - 15SL, 8-Ply, Tube, Silver

2шт.

12

10108254

WHEEL

8 x 15, 6-Hole With Guard, Silver

2шт.

13

NSS

NOT SOLD SEPARAT

9.5 x 15, 8-Ply Tire

2шт.

14

06400430

SPACER

Cylinder

1шт.

15

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Painted

2шт.

16

06400140

TUBE,103" Length

Depth Adjust, 2-1/2 x 2-1/2

2шт.

20

16902025

BOLT,Hex, 1-1/4" - 7 x 6-9/16", Gr 5

1-1/4 x 6.56, A-325, Hex

6шт.

21

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 Dia. x 4.30

1шт.

22

14892076

SPECIAL PIN

1-1/4 Dia. x 5-7/8

2шт.

23

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 Dia. x 5-7/16

2шт.

24

25890100

KIT

1 Cylinder

1шт.

30

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

16шт.

31

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

32

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

4шт.

33

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

34

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

12шт.

35

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

36

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

38

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

6шт.

39

17618041

WASHER,28.98mm ID x 53.85mm OD x 1.19mm Thk

1-1/8 Machine, 18 ga, ZP

4шт.

40

86992220

NUT

1-1/4, Stover

6шт.

41

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

Standard, ZP

1шт.

42

86992213

NUT

3/8, NC, Stover

2шт.

43

86992215

LOCK NUT,1/2"-13, GC

Stover

6шт.

45

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

46

85700693

NUT,5/8" - 11, Gr C

1шт.

47

432-1632

COTTER PIN,1/4" x 2"

2шт.

48

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard, ZP

2шт.

49

86993782

TUBE ASSY.

Front, Corner, 42-1/2 Through 50-1/2 Models Only

2шт.

50

86993788

TUBE ASSY.

Rear Corner

2шт.

51

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

52

06250333

WASHER

Backing

2шт.

53

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
