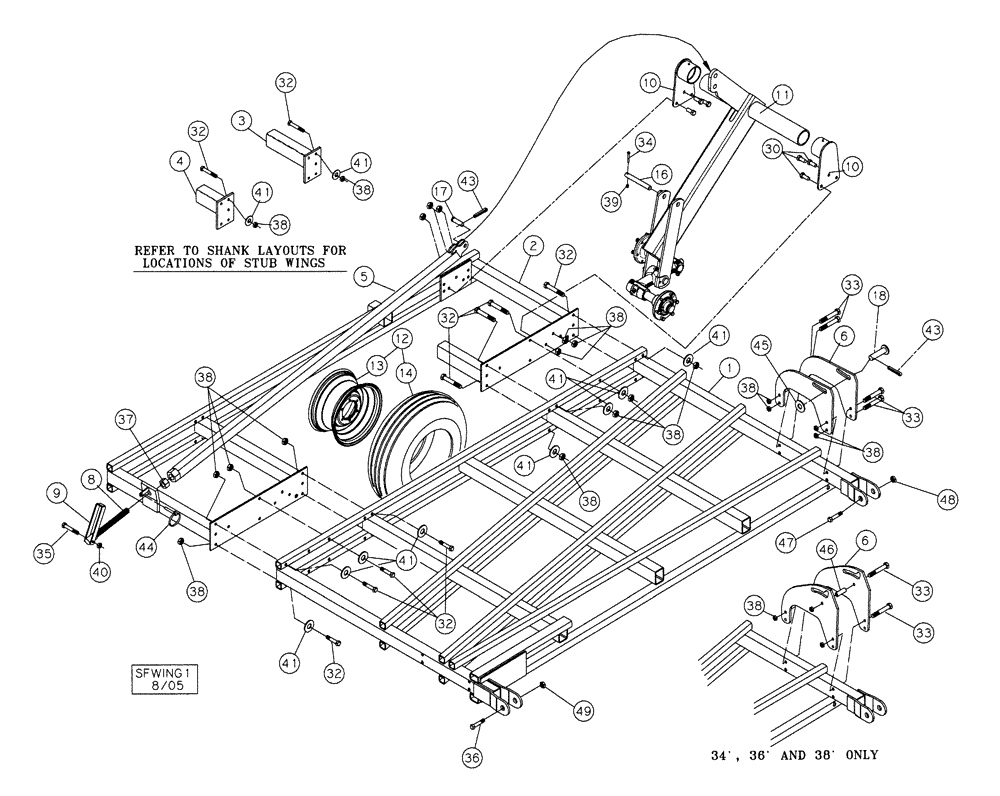

Запчасти Case IH TIGERMATE II (39.100.07) - WING FRAME SINGLE FOLD 12-1/2 THROUGH 38-1/2 (39) - FRAMES AND BALLASTING

1

86993585

TUBE ASSY.

3-1/2, Rh

1шт.

1

86993587

TUBE ASSY.

3-1/2, Lh

1шт.

1

86993884

TUBE ASSY.

5-1/2, Rh

1шт.

1

86993886

TUBE ASSY.

5-1/2, Lh

1шт.

1

86992885W

TUBE ASSY.

7-1/2, Rh

1шт.

1

86993890

TUBE ASSY.

7-1/2, Lh

1шт.

1

86993984

TUBE ASSY.

9-1/2, Rh

1шт.

1

86993986

TUBE ASSY.

9-1/2, Lh

1шт.

2

86993597

TUBE ASSY.

9-1/2, Extension, Rh

1шт.

2

86993601

TUBE ASSY.

9-1/2, Extension, Lh

1шт.

2

86993603

TUBE ASSY.

11-1/2, Extension, Rh

1шт.

2

86993791

TUBE ASSY.

11-1/2, Extension, Lh

1шт.

3

86993852

TUBE ASSY.

Stub, 9-1/2

1шт.

4

86993855

TUBE ASSY.

Stub, 15-1/2

1шт.

5

06400820

STOP

Depth Adjust, 2 x 2

2шт.

6

86993593

LUG

Cylinder, 30-1/2 With 10 Mainframe

4шт.

6

86993589

LUG

Cylinder, 18-1/2

4шт.

6

86993595

LUG

Cylinder, 30-1/2 Through 32-1/2

4шт.

6

86993591

LUG

Cylinder, 34-1/2 Through 38-1/2

4шт.

8

06400840

ADJUSTER

Depth, 1-1/4 Thread

2шт.

Stamped 2 On End

1шт.

9

06400160

CRANKED HANDLE

Depth Adjust

2шт.

10

06401190

AXLE

Rock Shaft

4шт.

11

06401100

ROCKSHAFT

Rh Wing, Without Tandems

1шт.

11

87337198

ROCKSHAFT

Rh Wing, With Tandems

1шт.

11

06401150

AXLE

Lh Wing, Without Tandems

1шт.

11

87337200

ROCKSHAFT

Lh Wing, With Tandems

1шт.

12

10008256

LAND WHEEL

9.5L x 15, 8-Ply, Tubeless, Silver

4шт.

12

10008254

LAND WHEEL

9.5L x 15, 8-Ply, Tube, Silver

4шт.

13

10108254

WHEEL

8 x 15, 6-Hole With Guard, Tube, Silver

4шт.

14

NSS

NOT SOLD SEPARAT

9.5 x 15, 8-Ply Tire, 1980928C1

4шт.

16

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 x 5.75

2шт.

17

25890100

KIT

1, Cylinder

1шт.

18

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 x 4.30

2шт.

30

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

12шт.

32

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

33

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

8шт.

34

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

35

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

36

16902025

BOLT,Hex, 1-1/4" - 7 x 6-9/16", Gr 5

1-1/4 x 6.56, Hex

2шт.

37

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

38

85700693

NUT,5/8" - 11, Gr C

1шт.

39

86992213

NUT

3/8, NC, Stover

2шт.

40

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

41

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

32шт.

42

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4 x 10 ga, Machinery

4шт.

43

432-1632

COTTER PIN,1/4" x 2"

4шт.

44

D33805

PIN

7/16 x 2, Klik

2шт.

45

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

Standard

2шт.

46

06400430

SPACER

Cylinder Lug

2шт.

47

16902025

BOLT,Hex, 1-1/4" - 7 x 6-9/16", Gr 5

1-1/4 x 6.56, Hex

2шт.

48

86992220

NUT

1-1/4, Stover

2шт.

49

86992220

NUT

1-1/4, Stover

2шт.

50

86992870W

FRAME

Rear Wing Rest, Not Shown

2шт.

51

18534243

REFLECTOR

Amber

1шт.

52

18534244

REFLECTOR

Red

1шт.
