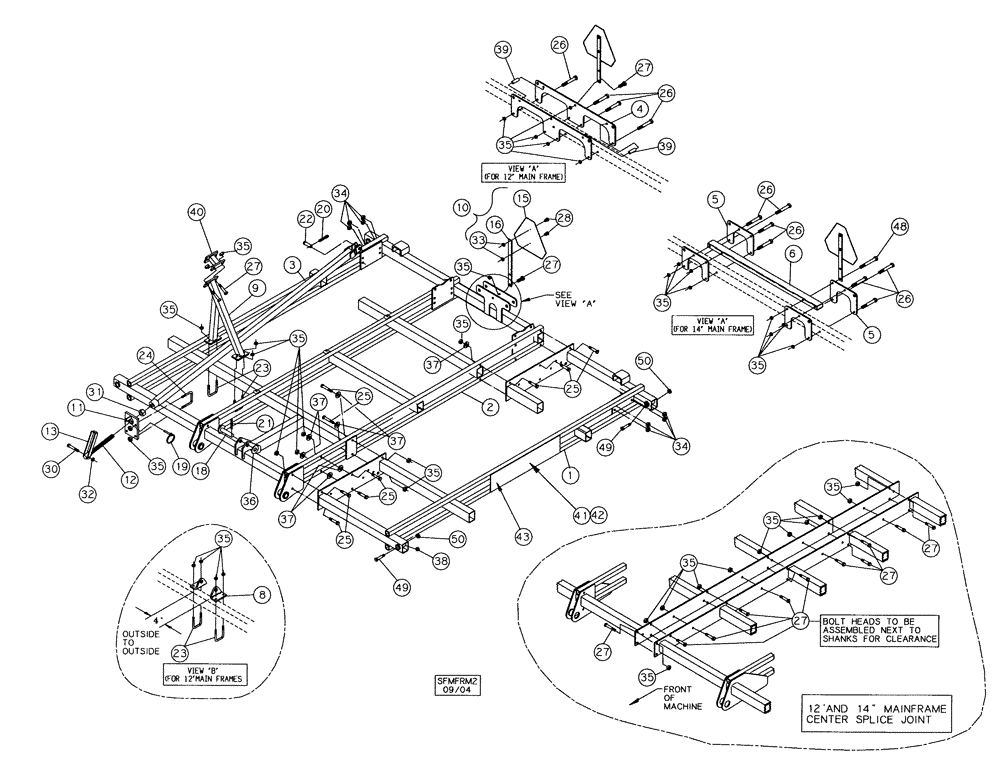

Запчасти Case IH TIGERMATE II (39.100.01) - SINGLE FOLD MAIN FRAME 12-1/2 THROUGH 38-1/2 (39) - FRAMES AND BALLASTING

1

87394967

FRAME

10, LH

1шт.

1

87394969

FRAME

12, LH

1шт.

1

87394972

FRAME

14, LH

1шт.

2

47743310

FRAME

10, RH

1шт.

2

87394968

FRAME

12, RH

1шт.

2

87394970

FRAME

14, RH

1шт.

3

06400140

TUBE,103" Length

Depth, 2-1/2 x 2-1/2

2шт.

4

86993553

LUG

12, Mainframe

2шт.

5

86993577

LUG

14, Single Fold Mainframe

4шт.

6

86993579

BAR ASSY.

14, Single Fold Brace

2шт.

8

06400460

BRACKET

Rocker Arm

2шт.

9

86993561

STOP DEVICE

Wing, Single Fold

2шт.

10

18582000

KIT

Kit

1шт.

11

06400130

PIVOT PLATE

Depth Adjust

2шт.

12

06400170

ADJUSTMENT SCREW,1 1/4" - 7 x 289.56mm

1-1/4 Dia., Thread

2шт.

13

06400160

CRANKED HANDLE

Depth Adjust

2шт.

15

311860A1

EMBLEM

SMV, Steel Back

1шт.

16

06200199

PRODUCT GRAPHIC

SMV

1шт.

18

14820442

PIN,31.75mm OD x 153.29mm L

1-1/4 Dia. x 5-1/2

1шт.

19

D33805

PIN

7/16 x 2

2шт.

20

432-1632

COTTER PIN,1/4" x 2"

2шт.

21

438-32440

PIN,3/8" x 2 1/2", Coiled

1шт.

22

25890100

KIT

1, Cylinder

1шт.

23

87629102

U-BOLT

1шт.

24

87629089

U-BOLT

4шт.

25

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

10 Mainframe

12шт.

26

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

14шт.

27

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

30

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

31

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

32

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

33

86992211

NUT

1/4, NC, Hex

2шт.

34

280375

NUT,3/4"-10, GC

1шт.

35

85700693

NUT,5/8" - 11, Gr C

1шт.

36

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4 x 10 ga

1шт.

37

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

14шт.

38

219-86

LUBE NIPPLE,1/8" NPTF

8шт.

39

06400430

SPACER

2шт.

40

06400440

STOP

Wing

2шт.

41

18535012

DECAL

TMII Case IH, Rh

1шт.

42

18535011

DECAL

TMII Case IH, Lh

1шт.

43

311864A1

REFLECTOR

Amber

2шт.

44

18534307

DECAL

Helping Plants Thrive

1шт.

47

18534308

DECAL

Depth Control

1шт.

48

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

49

16902025

BOLT,Hex, 1-1/4" - 7 x 6-9/16", Gr 5

1-1/4 x 6.56, Hex

4шт.

50

86992220

NUT

1-1/4, Stover

4шт.
