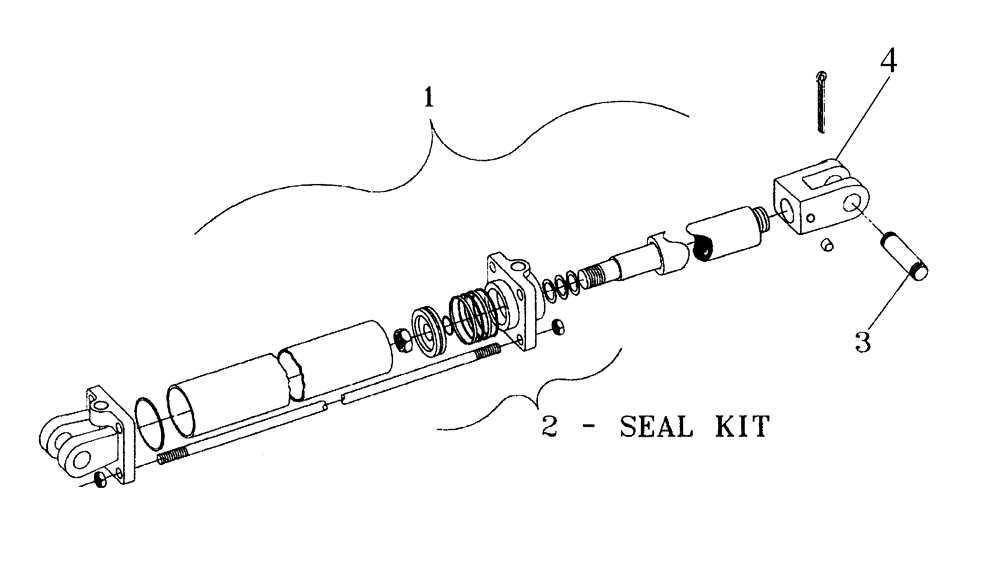

Запчасти Case IH TIGERMATE II (35.100.10) - HYDRAULIC CYLINDERS 3000 PSI (35) - HYDRAULIC SYSTEMS

1

87423770

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/4 x 8, Rephase

1шт.

1

87423770R

REMAN-HYD CYLINDER

200, TIGERMATE II CASE IH FIELD CULTIVATOR

1шт.

1

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

87423771

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2 x 8, Rephase, Monarch

1шт.

1

84255910R

REMAN-HYD CYLINDER

200, TIGERMATE II, Reman For New P/N 87423771

1шт.

1

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

1

84255910

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

Replaces 87423771 - Eagle

1шт.

1

84255910R

REMAN-HYD CYLINDER

200, TIGERMATE II

1шт.

1

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

1

25340301

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 762mm Stroke

4 x 30

1шт.

1

25340362

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 x 36

1шт.

1

25340362R

REMAN-HYD CYLINDER

200 - TIGERMATE & TIGERMATE II CASE IH FIELD CULTIVATOR

1шт.

1

25340362C

CORE-HYD CYLINDER

Return Number

1шт.

1

25320040

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke

2 x 4

1шт.

1

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 x 24

1шт.

1

25330360

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 914.4mm Stroke

3 x 36

1шт.

1

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24

1шт.

1

25335242R

REMAN-HYD CYLINDER

TIGERMATE II , 200

1шт.

1

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

1

25335361

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

3-1/2 x 36

1шт.

1

25335361R

REMAN-HYD CYLINDER

200 TIGERMATE, TIGERMATE II, Both CASE IH FIELD CULTIVATOR, 3-1/2 x 36 3000 PSI

1шт.

1

25335361C

CORE-HYD CYLINDER

Return Number

1шт.

1

25340242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

4 x 24

1шт.

1

25340242R

REMAN-HYD CYLINDER

200 TIGERMATE, TIGERMATE II, Both CASE IH FIELD CULTIVATOR, 3000 PSI, 4 x 24

1шт.

1

25340242C

CORE-HYD CYLINDER

Return Number

1шт.

1

87423768

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8

1шт.

1

87423768R

REMAN-HYD CYLINDER

200, TIGERMATE II

1шт.

1

87423768C

CORE-HYD CYLINDER

Return Number

1шт.

1

87423766

CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3-3/4 x 8, Rephase

1шт.

1

87423766R

REMAN-HYD CYLINDER

Reman for New PN 87423766

1шт.

1

87423766C

CORE-HYD CYLINDER

Return Number

1шт.

1

87423777

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

4 x 8

1шт.

1

87423777R

REMAN-HYD CYLINDER

Reman for New PN 87423777

1шт.

1

87423777C

CORE-HYD CYLINDER

Return Number

1шт.

1

25037580C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833050

SEAL KIT

2 x 4

1шт.

2

25803100

SEAL KIT

3 x 8

1шт.

2

87409037

SEAL KIT

3-1/4 x 8

1шт.

2

87409038

SEAL KIT

3-1/2 x 8, Monarch

1шт.

2

84332697

SEAL KIT

Eagle

1шт.

2

25834024

SEAL KIT

4 x 24 And 4 x 30 And 4 x 36

1шт.

2

25833007

SEAL KIT

3 x 24 And 3 x 36

1шт.

2

25833527

SEAL KIT

3-1/2 x 24 And 3-1/2 x 36

1шт.

2

87409040

SEAL KIT

3-3/4 x 8

1шт.

2

87409033

SEAL KIT

4 x 8

1шт.

3

25890100

KIT

All Cylinders

1шт.

4

87409391

CLEVIS,1 -1/2" - 12

4 x 24 Cylinder

1шт.
