Запчасти Case IH TIGERMATE II (35.100.09) - WING FOLD HYDRAULICS 54-1/2 THROUGH 60-1/2 (35) - HYDRAULIC SYSTEMS

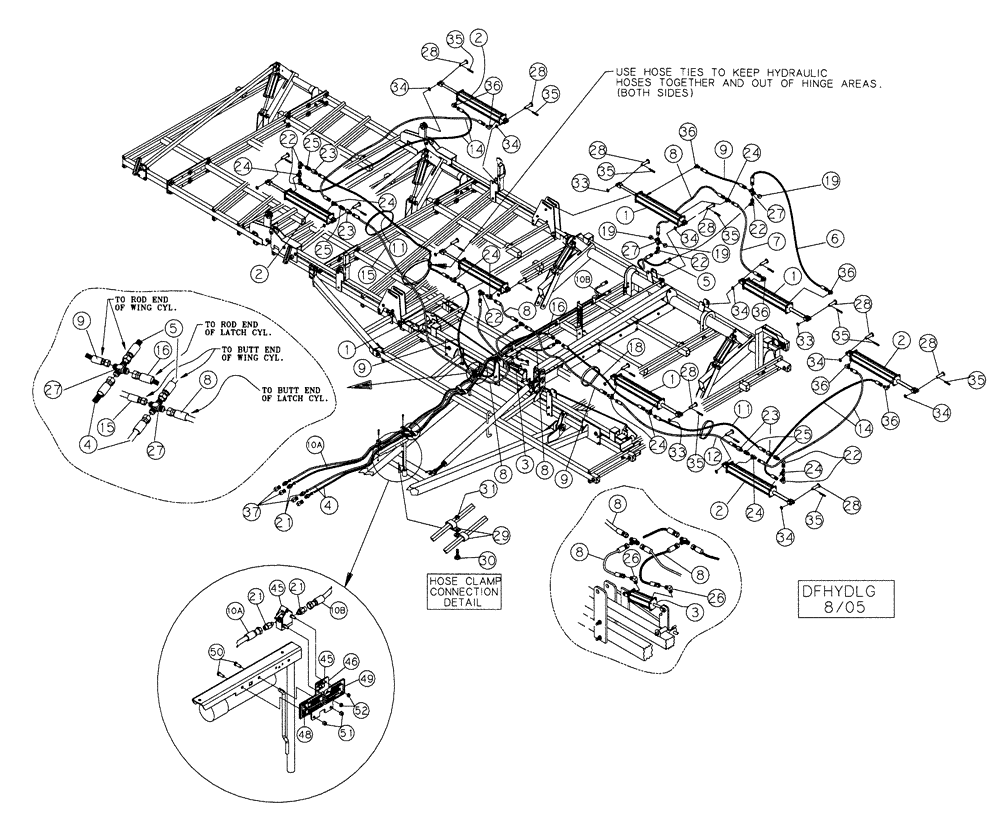

Схема запчастей Case IH TIGERMATE II - (35.100.09) - WING FOLD HYDRAULICS 54-1/2 THROUGH 60-1/2 (35) - HYDRAULIC SYSTEMS
2
30
11
36
27
31
7
15
28
22
21
6
36
16
22
22
5
26
10a
46
21
2
45
24
24
29
34
35
22
28
27
36
8
8
10b
22
28
35
35
4
2
50
34
35
24
48
1
25
8
34
24
23
28
36
3
24
52
9
35
18
23
10a
14
4
28
15
9
9
23
14
27
16
28
36
8
26
1
21
34
45
33
33
8
25
28
8
37
34
19
36
34
25
36
25
2
33
12
24
19
19
10b
1
24
8
33
1
28
8
35
9
27
46
51
5
3
35

Артикул

Название

Примечание

Количество

1

25335361

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

3-1/2 x 36, 3000 psi, Front Inner Wing Lift

2шт.

1

25335361R

REMAN-HYD CYLINDER

200 TIGERMATE, TIGERMATE II, Both CASE IH FIELD CULTIVATOR, 3-1/2 x 36, 3000 psi, Front Inner Wing Lift, 54-1/2 THROUGH 60-1/2

2шт.

1

25335361C

CORE-HYD CYLINDER

Return Number

2шт.

1

25340362

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 x 36, 3000 psi, Rear Inner Wing Lift

2шт.

1

25340362R

REMAN-HYD CYLINDER

200 - TIGERMATE & TIGERMATE II CASE IH FIELD CULTIVATOR

2шт.

1

25340362C

CORE-HYD CYLINDER

Return Number

2шт.

2

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24, 3000 psi, Front Outer Wing Lift

2шт.

25335242R

REMAN-HYD CYLINDER

200 Tigermate

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25340242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

4 x 24, 3000 psi, Rear Outer Wing Lift

2шт.

2

25340242R

REMAN-HYD CYLINDER

200 TIGERMATE, TIGERMATE II, Both CASE IH FIELD CULTIVATOR, 54-1/2 THROUGH 60-1/2, 4 x 24, 3000 psi, Rear Outer Wing Lift

2шт.

2

25340242C

CORE-HYD CYLINDER

Return Number

2шт.

3

25320040

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke

2 x 4, 3000 psi

1шт.

4

25600707

HYDRAULIC HOSE,0.38" ID x 246.00", SAE 100R17

2шт.

5

25600726

HYDRAULIC HOSE,0.38" ID x 130.50", SAE 100R17

2шт.

6

25600724

HYDRAULIC HOSE,0.38" ID x 104.50", SAE 100R17

1шт.

7

25600708

HYDRAULIC HOSE,9.65mm ID x 1270mm L, SAE 100R17

1шт.

8

25600613

HYDRAULIC HOSE,0.38" ID x 12.00", SAE 100R17

4шт.

9

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

3шт.

10

134209A1

HOSE

1/2 x 345

1шт.

10a

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

10b

1978106C1

HOSE

1/2 x 240

1шт.

11

25600606

HYDRAULIC HOSE,0.38" ID x 150.00", SAE 100R17

2шт.

12

25600752

HYDRAULIC HOSE,9.68mm ID x 161mm L

1шт.

14

25600706

HYDRAULIC HOSE,0.38" ID x 144.00", SAE 100R17

4шт.

15

25600717

HYDRAULIC HOSE,0.38" ID x 155.00", SAE 100R17

1шт.

16

25600714

HYDRAULIC HOSE,0.38" ID x 26.00", SAE 100R17

1шт.

17

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

1шт.

18

25600607

HYDRAULIC HOSE,0.38" ID x 76.00", SAE 100R17

1шт.

19

218-755

CAP,37 Degree, 3/4"-16

3шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

6шт.

22

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

6шт.

23

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle, Purple

4шт.

23

25407502

CONTROL VALVE

Throttle, Pink

4шт.

24

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

9шт.

25

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

4шт.

26

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

2шт.

27

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

4шт.

28

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 x 4.30

16шт.

29

22510700

HOSE CLAMP,15.86mm

5/8

1шт.

29

22510710

HOSE CLAMP

3/4

1шт.

30

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

31

86992213

NUT

3/8, NC, Stover

1шт.

32

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

33

495-21106

WASHER,1"

Standard, Flat

4шт.

34

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

Machine, 10 ga

12шт.

35

432-1632

COTTER PIN,1/4" x 2"

1шт.

36

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

7шт.

37

25705041

COUPLING

Male, ISO, 3/4 SAEF

4шт.

38

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

2шт.

45

87328528

SHUT-OFF VALVE

Hydraulic

1шт.

46

87328931

PLATE

Bracket

1шт.

47

87343258

DECAL

Hydraulic Transport Operation

1шт.

48

87353780

DECAL

Warning Crushing Hazard

1шт.

49

87353782

DECAL

Transport Hazard

1шт.

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

51

86992213

NUT

3/8 Hex, Stover

2шт.

52

86992212

NUT

5/16, Hex, Stover

2шт.

Выбрано товаров: 58
