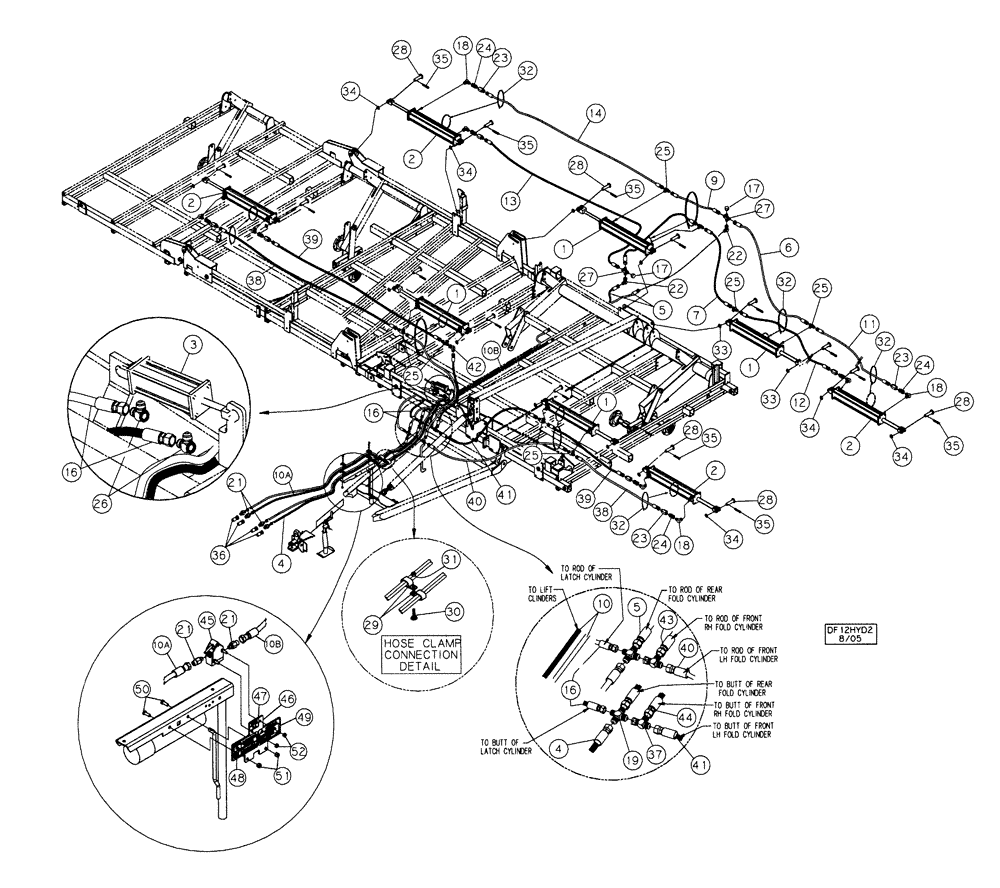

Запчасти Case IH TIGERMATE II (35.100.08) - FRONT WING LIFT HYDRAULICS OPTION 46-1/2 THROUGH 50-1/2 (35) - HYDRAULIC SYSTEMS

1

25340362

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 x 36, 3000 psi, Rear Inner Wing

2шт.

1

25340362R

REMAN-HYD CYLINDER

200 - TIGERMATE & TIGERMATE II CASE IH FIELD CULTIVATOR

2шт.

1

25340362C

CORE-HYD CYLINDER

Return Number

2шт.

1

25335361

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

3-1/2 x 36, 3000 psi, Optional Front Inner Wing

2шт.

1

25335361R

REMAN-HYD CYLINDER

200 TIGERMATE, TIGERMATE II, Both CASE IH FIELD CULTIVATOR, 3-1/2 x 36, 3000 psi, Optional Front Inner Wing, 46-1/2 THROUGH 50-1/2

2шт.

1

25335361C

CORE-HYD CYLINDER

Return Number

2шт.

2

25340242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

4 x 24, 3000 psi, Rear Outer Wing

2шт.

2

25340242R

REMAN-HYD CYLINDER

200 TIGERMATE, TIGERMATE II, Both CASE IH FIELD CULTIVATOR, 46-1/2 THROUGH 50-1/2, 4 x 24, 3000 psi, Rear Outer Wing

2шт.

2

25340242C

CORE-HYD CYLINDER

Return Number

2шт.

2

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24, 3000 psi, Optional Front Outer Wing

2шт.

25335242R

REMAN-HYD CYLINDER

TIGERMATE II , 200

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

3

25320040

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke

2 x 4, 3000 psi

1шт.

4

25600707

HYDRAULIC HOSE,0.38" ID x 246.00", SAE 100R17

2шт.

5

25600726

HYDRAULIC HOSE,0.38" ID x 130.50", SAE 100R17

2шт.

6

25600724

HYDRAULIC HOSE,0.38" ID x 104.50", SAE 100R17

1шт.

7

25600708

HYDRAULIC HOSE,9.65mm ID x 1270mm L, SAE 100R17

1шт.

8

25600613

HYDRAULIC HOSE,0.38" ID x 12.00", SAE 100R17

1шт.

9

25600738

HYDRAULIC HOSE,0.38" ID x 33.50", SAE 100R17

1шт.

10

134209A1

HOSE

1/2 x 345

1шт.

10a

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

10b

1978106C1

HOSE

1/2 x 240

1шт.

11

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

1шт.

12

25600684

HYDRAULIC HOSE,0.38" ID x 132.00", SAE 100R17

1шт.

13

25600650

HYDRAULIC HOSE,9.53mm ID x 3251.2mm L

1шт.

14

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

1шт.

15

25600841

HYDRAULIC HOSE

1/2 x 246

2шт.

16

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

2шт.

17

218-755

CAP,37 Degree, 3/4"-16

2шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

8шт.

19

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

6шт.

22

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

23

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle, Purple

8шт.

23

25407502

CONTROL VALVE

Throttle, Pink

8шт.

24

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

8шт.

25

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

8шт.

26

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

2шт.

27

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

28

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 x 4.30

8шт.

29

22510700

HOSE CLAMP,15.86mm

5/8

1шт.

29

22510710

HOSE CLAMP

3/4

1шт.

30

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

31

86992213

NUT

3/8, NC, Stover

1шт.

32

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

33

495-21106

WASHER,1"

Standard Flat

4шт.

34

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

Machine, 10 ga

12шт.

35

432-1632

COTTER PIN,1/4" x 2"

1шт.

36

25705041

COUPLING

Male, ISO, 3/4 SAEF

4шт.

37

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Tube, Side Swive

2шт.

38

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

2шт.

39

25600684

HYDRAULIC HOSE,0.38" ID x 132.00", SAE 100R17

2шт.

40

25600724

HYDRAULIC HOSE,0.38" ID x 104.50", SAE 100R17

1шт.

41

25600664

HYDRAULIC HOSE,0.38" ID x 60.00", SAE 100R17

1шт.

42

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

43

25600738

HYDRAULIC HOSE,0.38" ID x 33.50", SAE 100R17

1шт.

44

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

1шт.

45

87328528

SHUT-OFF VALVE

Hydraulic Shut Off

1шт.

46

87328931

PLATE

Bracket

1шт.

47

87343258

DECAL

Hydraulic Transport Operation

1шт.

48

87353780

DECAL

Warning Crushing Hazard

1шт.

49

87353782

DECAL

Transport Hazard

1шт.

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

51

86992213

NUT

3/8, Hex, Stover

2шт.

52

86992212

NUT

5/16, Hex, Stover

2шт.
