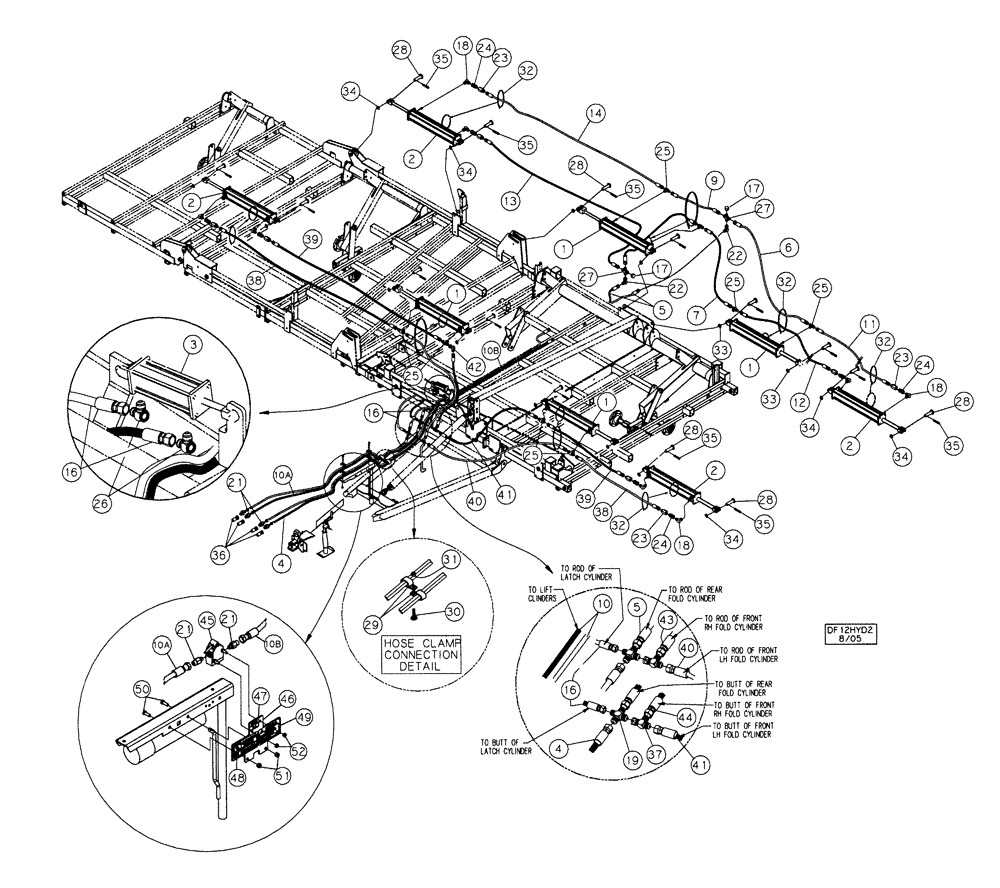

Запчасти Case IH TIGERMATE II (35.100.07) - FRONT WING LIFT HYDRAULICS OPTION 38-1/2 THROUGH 46-1/2 (35) - HYDRAULIC SYSTEMS

1

25340362

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 x 36, 3000 psi., Rear Inner Wing

2шт.

1

25340362R

REMAN-HYD CYLINDER

200 - TIGERMATE & TIGERMATE II CASE IH FIELD CULTIVATOR

2шт.

1

25340362C

CORE-HYD CYLINDER

Return Number

2шт.

1

25330360

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 914.4mm Stroke

3 x 36, 3000 psi, Optional Front Inner Wing

2шт.

2

25340242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

4 x 24, 3000 psi, Rear Outer Wing

2шт.

2

25340242R

REMAN-HYD CYLINDER

200 TIGERMATE, TIGERMATE II, Both CASE IH FIELD CULTIVATOR, 38-1/2 THROUGH 46-1/2, 4 x 24, 3000 psi, Rear Outer Wing

2шт.

2

25340242C

CORE-HYD CYLINDER

Return Number

2шт.

2

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 x 24, 3000 psi, Optional Front Outer Wing

2шт.

3

25320040

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke

2 x 4, 3000 psi

1шт.

4

25600747

HYDRAULIC HOSE,0.38" ID x 212.00", SAE 100R17

2шт.

5

25600726

HYDRAULIC HOSE,0.38" ID x 130.50", SAE 100R17

2шт.

6

25600739

HYDRAULIC HOSE,0.38" ID x 86.50", SAE 100R17

1шт.

7

25600721

HYDRAULIC HOSE,0.38" ID x 32.00", SAE 100R17

1шт.

8

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

1шт.

9

25600713

HYDRAULIC HOSE,0.38" ID x 27.50", SAE 100R17

1шт.

10

113710A1

HOSE

1/2 x 295

1шт.

10a

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

10b

91205C1

HYDRAULIC HOSE,12.70 mm ID x 5335.00 mm, SAE 100R1

12 Mainframe

1шт.

11

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

38-1/2 to 40-1/2 Models

1шт.

11

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

42-1/2 to 46-1/2 Models

1шт.

12

25600724

HYDRAULIC HOSE,0.38" ID x 104.50", SAE 100R17

38-1/2 To 40-1/2 Models

1шт.

12

25600684

HYDRAULIC HOSE,0.38" ID x 132.00", SAE 100R17

42-1/2 to 46-1/2 Models

1шт.

13

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

38-1/2 to 40-1/2 Models

1шт.

13

25600650

HYDRAULIC HOSE,9.53mm ID x 3251.2mm L

42-1/2 to 46-1/2 Models

1шт.

14

25600720

HYDRAULIC HOSE,0.38" ID x 90.00", SAE 100R17

38-1/2 To 40-1/2 Models

1шт.

14

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

42-1/2 to 46-1/2 Models

1шт.

16

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

2шт.

17

218-755

CAP,37 Degree, 3/4"-16

2шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

10шт.

19

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

4шт.

22

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

23

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle, Purple

8шт.

24

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

8шт.

25

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

8шт.

26

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

2шт.

27

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

28

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 x 4.30

8шт.

29

22510700

HOSE CLAMP,15.86mm

5/8

1шт.

29

22510710

HOSE CLAMP

3/4

1шт.

30

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

31

86992213

NUT

3/8, NC, Stover

1шт.

32

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

33

495-21106

WASHER,1"

Standard, Flat

4шт.

34

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

Machine, 10 ga

12шт.

35

432-1632

COTTER PIN,1/4" x 2"

1шт.

36

25705041

COUPLING

Male, ISO, 3/4 SAEF

4шт.

37

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Tube, Slide Swivel

2шт.

38

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

38-1/2 to 40-1/2 Models

2шт.

38

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

42-1/2 to 46-1/2 Models

2шт.

39

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

38-1/2 to 40-1/2 Models

2шт.

39

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

42-1/2 to 46-1/2 Models

2шт.

40

25600735

HYDRAULIC HOSE,0.38" ID x 82.00", SAE 100R17

1шт.

41

25600758

HYDRAULIC HOSE,0.38" ID x 39.00", SAE 100R17

1шт.

42

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

43

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

1шт.

44

25600618

HYDRAULIC HOSE,9.53mm ID x 457.2mm L, SAE 100R17

1шт.

45

87328528

SHUT-OFF VALVE

Hydraulic

1шт.

46

87328931

PLATE

1шт.

47

87343258

DECAL

Hydraulic Transport Operation

1шт.

48

87353780

DECAL

Warning Crushing Hazard

1шт.

49

87353782

DECAL

Transport Hazard

1шт.

50

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

51

86992213

NUT

3/8, Hex, Stover

2шт.

52

86992212

NUT

5/16 , Hex, Stover

2шт.
