Запчасти Case IH TIGERMATE II (35.100.04) - TRANSPORT HYDRAULICS 58-1/2 - 60-1/2 MODELS (35) - HYDRAULIC SYSTEMS

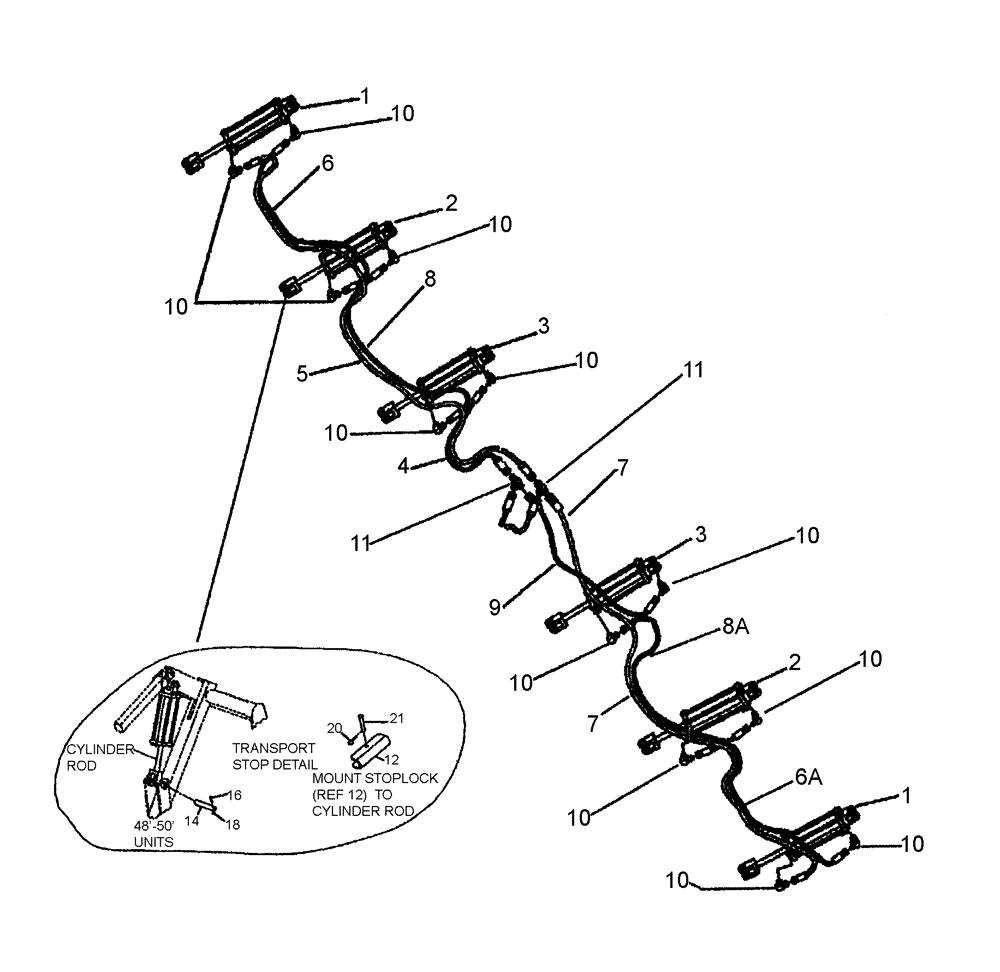

Схема запчастей Case IH TIGERMATE II - (35.100.04) - TRANSPORT HYDRAULICS 58-1/2 - 60-1/2 MODELS (35) - HYDRAULIC SYSTEMS
20
1
10
1
2
7
10
16
18
10
10
12
14
8
7
2
10
8a
21
5
10
11
10
10
6
11
3
10
10
6a
4
9
3
10

Артикул

Название

Примечание

Количество

1

87423771

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2 X 8, Rephase, Monarch

2шт.

1

84255910R

REMAN-HYD CYLINDER

200, TIGERMATE II, Reman For New P/N 87423771

2шт.

1

84255910C

CORE-HYD CYLINDER

Return Number

2шт.

1

84255910

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

Replaces 87423771, Eagle

2шт.

1

84255910R

REMAN-HYD CYLINDER

200, TIGERMATE II

2шт.

1

84255910C

CORE-HYD CYLINDER

Return Number

2шт.

2

87423766

CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

3-3/4 x 8, Rephase

2шт.

2

87423766R

REMAN-HYD CYLINDER

Reman for New PN 87423766

2шт.

2

87423766C

CORE-HYD CYLINDER

Return Number

2шт.

3

87423777

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 203.2mm Stroke

4 x 8, Rephase

2шт.

3

87423777R

REMAN-HYD CYLINDER

Reman for New PN 87423777

2шт.

3

87423777C

CORE-HYD CYLINDER

Return Number

2шт.

4

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

1шт.

5

25600609

HYDRAULIC HOSE,0.38" ID x 311.00", SAE 100R17

1шт.

6

25600704

HYDRAULIC HOSE,9.53mm ID x 2463.8mm L, SAE 100R17

3/8 x 141

1шт.

6a

25600814

HYDRAULIC HOSE

3/8 x 148

1шт.

7

25600611

HYDRAULIC HOSE,0.38" ID x 383.00", SAE 100R17

1шт.

8

25600615

HYDRAULIC HOSE,0.38" ID x 173.00", SAE 100R17

1шт.

8a

87437414

HYDRAULIC HOSE,0.38" ID x 178.00", SAE J517

1шт.

9

25600669

HYDRAULIC HOSE,9.65mm ID x 2895.6mm L, SAE 100R17

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

12шт.

11

218-594

TEE,3/4"-16, 37 Degree

2шт.

12

87404919

STOP

12 Transport

1шт.

14

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 x 5-3/4

6шт.

16

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

18

86992213

NUT

3/8, NC Stover

6шт.

19

87437414

HYDRAULIC HOSE,0.38" ID x 178.00", SAE J517

1шт.

20

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

1шт.

21

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/4

1шт.

22

25600814

HYDRAULIC HOSE

3/8 x 148, (Not Shown)

1шт.

Выбрано товаров: 30
