Запчасти Case IH TIGER-MATE (39.100.06) - 54-1/2 THROUGH 60-1/2 DOUBLE FOLD LIFT SYSTEM AND PULL FRAME (39) - FRAMES AND BALLASTING

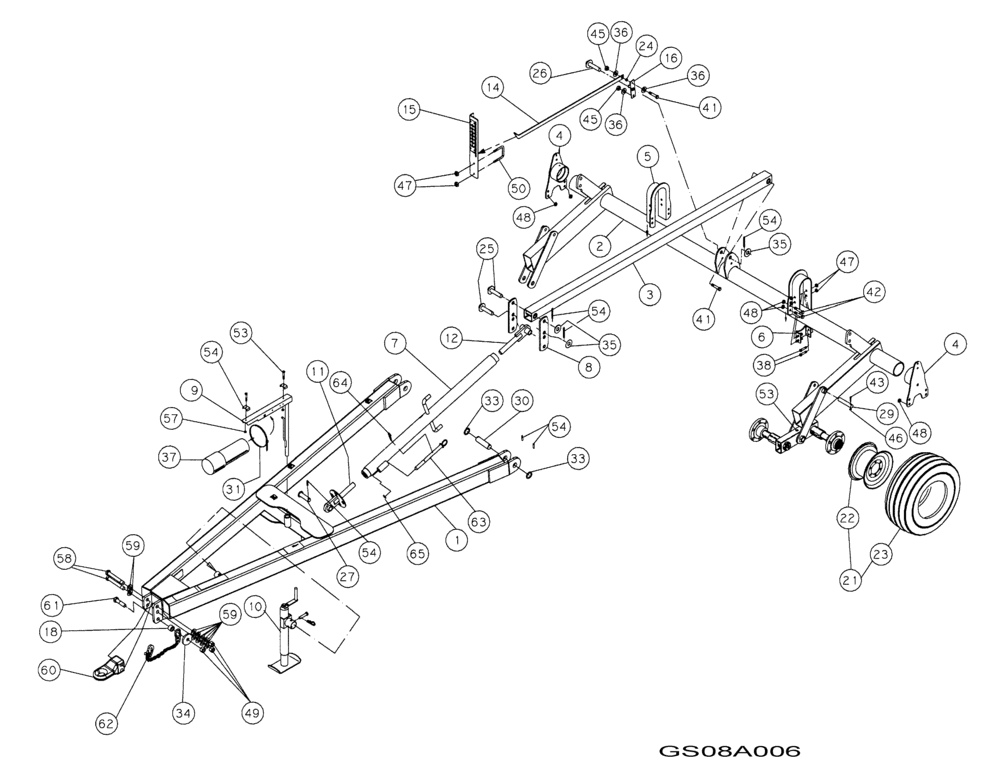

Схема запчастей Case IH TIGER-MATE - (39.100.06) - 54-1/2 THROUGH 60-1/2 DOUBLE FOLD LIFT SYSTEM AND PULL FRAME (39) - FRAMES AND BALLASTING
45
59
31
43
11
50
10
6
30
36
57
48
27
42
36
14
34
58
64
54
3
48
47
63
62
21
29
16
36
18
23
26
9
38
47
48
54
12
60
54
59
54
45
8
9
25
61
53
2
46
1
33
5
35
35
22
15
4
33
4
49
65
41
53
7
41
37
24

Артикул

Название

Примечание

Количество

1

87445710

FRAME, HITCH

14 Main

1шт.

2

87527143

ROCKSHAFT

14 Mainframe Without Tandems

1шт.

2

87337427

ROCKSHAFT

14 Mainframe With Tandems

1шт.

3

86993573

CONNECTING LINK

Constant Level Rear

1шт.

4

87458288

MOUNTING PARTS

Rock Shaft

2шт.

5

06401020

DRAWBAR CLAMP

Rock Shaft

2шт.

6

06401025

BRACKET

Rock Shaft

2шт.

7

87449031

TURNBUCKLE

14 Mainframe assembly

1шт.

8

06400690

BAR ASSY.

Rocker

2шт.

9

05302150

STAND

Hose

1шт.

10

32252000

JACK ASSY.

5000 lb

1шт.

11

87449026

ADJUSTMENT SCREW

1-1/2, LH

1шт.

12

87449028

ADJUSTMENT SCREW

1-1/2, RH

1шт.

14

06400760

INDICATOR

1шт.

15

06400770

GAUGE

1шт.

16

06400780

BRACKET

Finger

1шт.

18

04681211

BUSHING

1шт.

21

10010186

WHEEL ASSY.

12.5L - 15 FI (F), Tubeless, White

4шт.

21

10010185

LAND WHEEL

12.5L - 15 FI (F), Tube, White

4шт.

22

10110174

WHEEL

10 x 15, 8-Hole With Guard, White, Tube And Tubeless Type

4шт.

23

NSS

NOT SOLD SEPARAT

12.5L x 15 FI (F) Tire, 11012181, Tube And Tubeless Type

4шт.

24

06400720

BUSHING

1шт.

25

14820442

PIN,31.75mm OD x 153.29mm L

1-1/4 Dia. x 5-1/2

2шт.

26

14820461

PIN

1-1/4 Dia. x 6

1шт.

27

14820211

PIN,31.75mm OD x 112.14mm L

1-1/4 Dia. x 3-7/8

1шт.

29

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 Dia. x 5.75

2шт.

30

14892649

SPECIAL PIN,41.28mm OD x 177.8mm L

1.625 Dia. x 6.200

2шт.

31

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

33

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8 ID x 14 Ga, Machine

4шт.

34

06400065

WASHER

Heavy

1шт.

35

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4 x 10 ga, Machine

8шт.

36

495-21056

WASHER,1/2"

Standard, Flat

3шт.

37

30026030

TUBE

Manual

1шт.

38

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

41

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

42

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

43

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

44

86992211

NUT

1/4, NC, Stover

2шт.

45

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

46

86992213

NUT

3/8, NC, Stover

2шт.

47

85700693

NUT,5/8" - 11, Gr C

10шт.

48

280375

NUT,3/4"-10, GC

2шт.

49

86992219

LOCK NUT

1, NC, Stover

3шт.

50

87629089

U-BOLT

1шт.

51

432-1632

COTTER PIN,1/4" x 2"

8шт.

53

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

54

438-32440

PIN,3/8" x 2 1/2", Coiled

4шт.

55

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

56

425-106

NUT,3/8"-16, Cl 5

2шт.

58

87030492

BOLT,Hex, 1" - 8 x 7 1/4", Gr 8, Spcl

2шт.

59

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

10шт.

60

362934A1

HITCH ASSY

Catagory 4

1шт.

61

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

62

87389757

CHAIN

30,400, Safety

1шт.

63

395028A2

HITCH PIN

Turnbuckle

1шт.

64

1978738C1

HAIR PIN COTTER

1шт.

65

103-11100

SNAP RING,#100, .925", Ext

Retaining

1шт.

39

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

66

87348155

EMBLEM

Tigermate II, RH, Not Shown

1шт.

67

87348162

EMBLEM

Tigermate II, LH, Not Shown

1шт.

Выбрано товаров: 60
