Запчасти Case IH TIGER-MATE (39.100.04) - SINGLE FOLD LIFT SYSTEM (39) - FRAMES AND BALLASTING

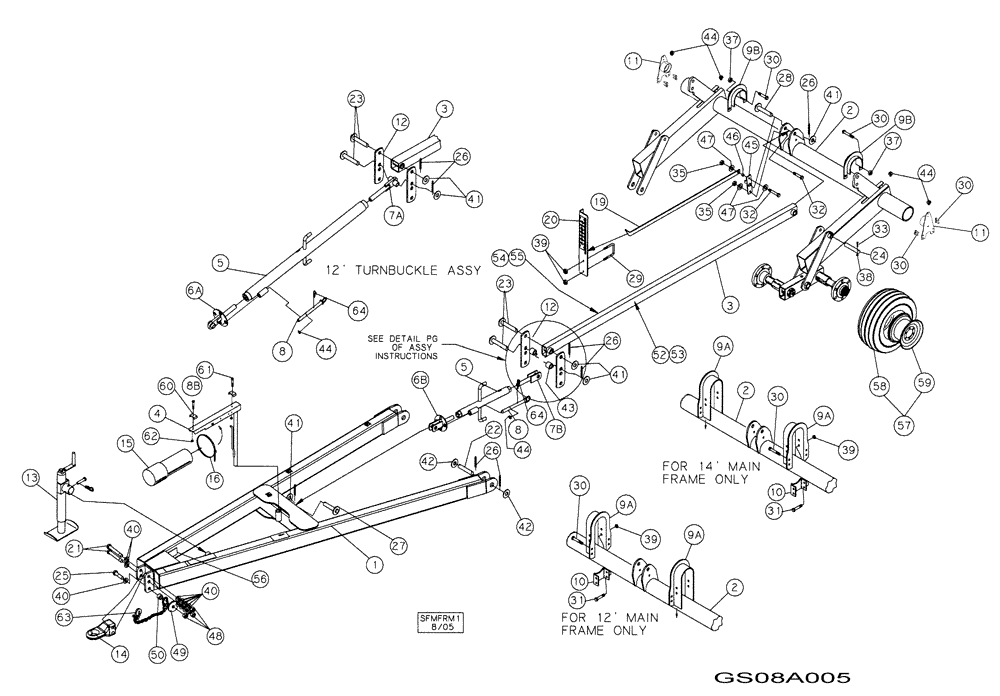

Схема запчастей Case IH TIGER-MATE - (39.100.04) - SINGLE FOLD LIFT SYSTEM (39) - FRAMES AND BALLASTING
7b
26
41
12
30
10
59
50
44
53
44
43
22
2
62
39
49
32
64
11
35
64
7a
16
9b
63
37
2
5
8
6a
9b
31
41
46
11
47
2
14
30
40
28
15
25
9a
8b
27
26
19
58
40
42
30
39
12
38
37
10
6b
26
61
60
42
44
3
32
39
48
52
41
3
29
4
24
44
9a
21
8
23
55
30
33
35
1
45
30
26
57
20
31
54
41
30
9a
9a
40
47
56
23

Артикул

Название

Примечание

Количество

1

87445706

FRAME ASSY

10 Main, Blue

1шт.

1

87445708

FRAME ASSY

12 Main, Blue

1шт.

1

87445710

FRAME, HITCH

14 Main, Blue

1шт.

2

87337184

ROCKSHAFT

10 Main Frame, With Tandems

1шт.

2

87455061

ROCKSHAFT

10 Main Frame, Without Tandems

1шт.

2

87337222

ROCKSHAFT

12 Main Frame, With Tandems

1шт.

2

06400200

AXLE

12 Main Frame, Without Tandems

1шт.

2

87337249

ROCKSHAFT

14 Main Frame, With Tandems

1шт.

2

06400400

AXLE

14 Main Frame, Without Tandems

1шт.

3

87403177

CONNECTING LINK

Constant Level, Rear, 10 Main Frame

1шт.

3

86993573

CONNECTING LINK

Constant Level, Rear, 12 And 14 Main Frame

1шт.

4

05302150

STAND

Hose

1шт.

5

87448226

TURNBUCKLE

Assembly, 10 Main Frame

1шт.

5

87449029

TURNBUCKLE

Assembly, 12 Main Frame

1шт.

5

87449031

TURNBUCKLE

Assembly, 14 Single Fold, Main Frame

1шт.

6a

87449026

ADJUSTMENT SCREW

1-1/2 LH, 12 And 14 Main Frame

1шт.

6b

87448225

CLEVIS

1-1/4 LH, 10 Main Frame

1шт.

7a

32408110

CLEVIS,1-1/2" - 6

1-1/2 RH, 12 And 14 Main Frame

1шт.

7b

32408060

CLEVIS

1-1/4 RH, 10 Main Frame

1шт.

8

395028A2

HITCH PIN

Turnbuckle

1шт.

8b

32408130

JAM NUT

1-1/2, 6NC, Jam

1шт.

9a

06401020

DRAWBAR CLAMP

Rockshaft, 12 And 14 Mainframe

2шт.

9b

06401055

DRAWBAR CLAMP

Rockshaft, 10 Main Frame

2шт.

10

06401025

BRACKET

Rockshaft, 12 And 14 Main Frame

2шт.

11

87458288

MOUNTING PARTS

Rockshaft And Light

2шт.

12

06400590

BAR ASSY.

12 And 14, Single Fold

2шт.

12

06400690

BAR ASSY.

10 Main Frame

2шт.

13

121558A1

JACK

5000 LB

1шт.

14

362933A1

HITCH

Catagory 3, 10 Main Frame

1шт.

14

362934A1

HITCH ASSY

Catagory 4, 12 14 Main Frame

1шт.

15

30026030

TUBE

Manual

1шт.

16

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Gear

1шт.

19

06400760

INDICATOR

1шт.

20

06400770

GAUGE

1шт.

21

87030492

BOLT,Hex, 1" - 8 x 7 1/4", Gr 8, Spcl

2шт.

22

14892649

SPECIAL PIN,41.28mm OD x 177.8mm L

1-5/8 Dia. x 6.20, 12 And 14 Main Frame

2шт.

22

14892650

SPECIAL PIN

1-5/8 Dia. x 5.83, 10 Main Frame

2шт.

23

14820442

PIN,31.75mm OD x 153.29mm L

1-1/4 Dia. x 5.50

2шт.

24

14891630

SPECIAL PIN,25.4mm OD x 162.05mm L

1 Dia. x 5.75

2шт.

25

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

26

438-32440

PIN,3/8" x 2 1/2", Coiled

7шт.

27

14820211

PIN,31.75mm OD x 112.14mm L

1-1/4 Dia. x 3.88

1шт.

28

14820461

PIN

1-1/4 Dia. x 6.00

1шт.

29

87427159

U-BOLT,5/8" - 11 x 4" W x 4 1/2" L

BOLT "U" 5/8 x 4 x 4-1/2

1шт.

30

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

31

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

1шт.

32

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

33

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

35

86992215

LOCK NUT,1/2"-13, GC

2шт.

37

86992217

NUT

3/4, NC, Stover

1шт.

38

86992213

NUT

3/8, NC, Stover

2шт.

39

86992216

NUT

5/8, NC, Stover

1шт.

40

495-11106

WASHER,1", SAE

10шт.

41

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4 x 10 Ga

3шт.

42

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8 x 14 Ga, Machine

4шт.

43

06401070

BUSHING

Large, Turnbuckle, 10 Main Frame Only

2шт.

44

103-11100

SNAP RING,#100, .925", Ext

2шт.

45

06400780

BRACKET

Finger

1шт.

46

06400720

BUSHING

Large

1шт.

47

495-21056

WASHER,1/2"

3шт.

48

86992219

LOCK NUT

1, NC Stover

3шт.

49

06400065

WASHER

Heavy

1шт.

50

04681211

BUSHING

1шт.

51

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

52

18534303

DECAL

Tiger Stripe, LH., Front

1шт.

53

18534314

DECAL

Tiger Stripe, LH, Rear

1шт.

54

18534313

DECAL

Tiger Stripe, RH, Front

1шт.

55

18534315

DECAL

Tiger Stripe, RH, Rear

1шт.

56

18534107

DECAL

Patent

1шт.

56

18534140

WARNING DECAL

Warning

1шт.

56

18534277

DECAL

Warning, Spring Compression

1шт.

56

18534348

DECAL

Warning, Towing Hazard

1шт.

57

10008156

WHEEL ASSY.

9.5L x 15. 8-Ply Tire, Tubeless, White, 18 Through 24 Models

4шт.

57

10008154

WHEEL ASSY.

9.5L x 15, 8-Ply Tire, Tube, White, 18 Through 24 Models

4шт.

57

10008161

WHEEL

9.5L x 15, 12-Ply Tire, Tubeless, White, 26 Through 32

4шт.

57

10008158

WHEEL ASSY.

9.5L x 15 12-Ply, Tire, Tube, White, 26 Through 32 Models

4шт.

57

10008162

WHEEL

9.5L x 15 FI (E), Tire, Tubeless, White, 34 Thorugh 38 Models

4шт.

57

10008163

LAND WHEEL

9.5L x 15 FI (E), Tire, Tube, White, 34 Through 38 Models

4шт.

58

10108154

WHEEL

8 x 15, 6-Hole With Guard, White

4шт.

59

NSS

NOT SOLD SEPARAT

9.5 x 15, 8-Ply, 18 Through 24 Models

4шт.

59

NSS

NOT SOLD SEPARAT

9.5 x 15, 12 Ply, 26 Through 32 Models

4шт.

59

NSS

NOT SOLD SEPARAT

9.5 x 15 FI (E), 34 Through 38 Models

4шт.

60

06200125

HOSE CLAMP

4шт.

61

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

62

86992213

NUT

Hex., 3/8"

2шт.

63

87393082

CHAIN

Safety, 20,200 LB

1шт.

64

1978738C1

HAIR PIN COTTER

1шт.

Выбрано товаров: 87
