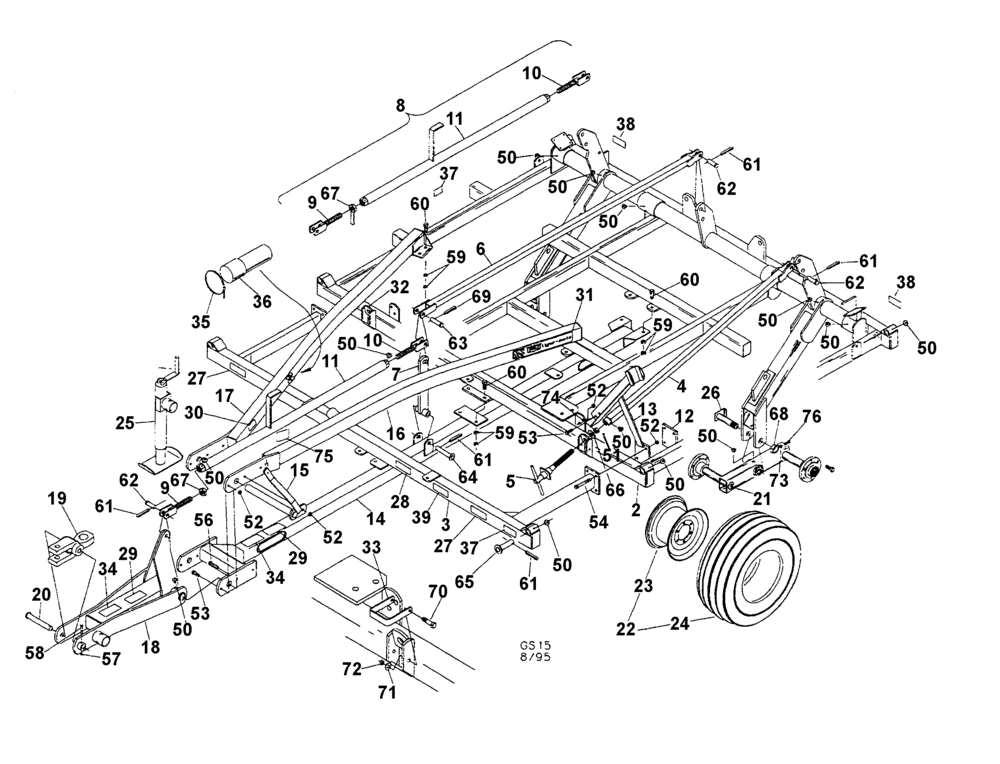

Запчасти Case IH TIGER-MATE (09-01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

2

06200060

FRAME

Center

1шт.

3

06200200

BRACKET

Front Bar

1шт.

4

06201740

TUBE,71" Length

Depth Adjust

2шт.

4

06201710

TUBE,71.25" Length

Depth Adjust

2шт.

For Mahcines With Serial Number 523708 & Before

1шт.

5

06201750

TUBE

Depth Adjust Screw

2шт.

5

06201725

ADJUSTMENT SCREW,1 1/4" - 5

Depth, Start Serial: 523708

2шт.

For Mahcines With Serial Number 523708 & Before

1шт.

6

06201800

TUBE,102" Length

Transport Adjust

1шт.

7

06201850

ROCKER ARM

1шт.

8

06201950

TURNBUCKLE

Assembly (Inc. # 9 - 11 & 67 )

1шт.

9

06201920

CLEVIS

Threaded, RH

1шт.

10

06201930

CLEVIS

Threaded, LH

1шт.

11

06201910

TURNBUCKLE

Body

1шт.

12

06202170

PLATE

FLat, Used With 5-1/2' Wing Only

2шт.

13

06202100

STOP

Wing, For 7-1/2' , RH

1шт.

13

06202150

STOP

Wing, For 7-1/2' , LH

1шт.

13

06202200

STOP

Wing, For 9-1/2' RH, With Holes

1шт.

13

06202250

STOP

Wing, For 9-1/2' , LH With Holes

1шт.

14

06202310

HITCH PIN

Pull

1шт.

15

06202490

HITCH PIN

1шт.

16

06202350

TUBE,102.69" Length

Pull Hitch, LH

1шт.

17

06202370

HITCH PIN

Pull Hitch, RH

1шт.

18

06202400

HITCH PIN

1шт.

19

20092400

HITCH

Clevis

1шт.

19

06202450

CLEVIS

Hitch, replaced by pn # 20092400, Start Serial: 222301

1шт.

For Machines With Serial Number 222301 & Before

1шт.

20

06202480

HITCH PIN

1-1/4"

1шт.

21

06201200

AXLE

Walking, RH, 888

1шт.

21

06201300

BAR ASSY.

Walking, LH, 888

1шт.

22

10008148

TYRE/TIRE

With Guard, 9.5L x 15"

4шт.

23

10108152

WHEEL ASSY.

6 Bolt With Guard, 8 x 15"

4шт.

24

11009157

TYRE/TIRE

9.5 x 15", 6 Ply

4шт.

25

32252000

JACK ASSY.

5000

1шт.

25

84533450

JACK

5000 lb

1шт.

For Machines With Serial Number 121829 & Before

1шт.

26

06201400

ROD

Kit, Incl 68

1шт.

26

04661850

PIN

Axle, 1-1/2"

1шт.

27

18534227

DANGER DECAL

2шт.

28

18534228

DECAL

1шт.

29

18534140

WARNING DECAL

1шт.

30

18534134

DECAL

1шт.

31

18534225

DECAL

Tiger-mate, Obsolete

2шт.

32

18534221

DECAL

Deeper

6шт.

33

06201727

STOP

Handle, Start Serial: 322396

2шт.

For Machines With Serial Number 322396 & After

1шт.

33

06220140

STOP

Handle, Start Serial: 121416-222301

2шт.

For Machines With Serial Number 121416-222301

1шт.

34

18534275

DANGER DECAL

2шт.

35

22513500

CARRIAGE BOLT

Worm Gear Clamp

1шт.

36

30026030

TUBE

Manual Canister

1шт.

37

18534243

REFLECTOR

Amber

1шт.

38

18534244

REFLECTOR

Red

1шт.

39

18534277

DECAL

1шт.

50

NSS

NOT SOLD SEPARAT

Self Tapping Zerk, 1/8" NPT

26шт.

51

NSS

NOT SOLD SEPARAT

Cup Point Set Screw, 3/8" - 16 NC

2шт.

52

NSS

NOT SOLD SEPARAT

Hex Nut, 5/8" NC

18шт.

53

NSS

NOT SOLD SEPARAT

Cap Screw, 5/8" x 1-3/4" Nc

9шт.

54

16010205

BOLT

Cap Screw, 5/8" x 5" NC Gd 5

8шт.

56

NSS

NOT SOLD SEPARAT

Cap Screw, 5/8" x 2-1/2" Nc

1шт.

57

NSS

NOT SOLD SEPARAT

Hex Nut, 7/16" NC

1шт.

58

NSS

NOT SOLD SEPARAT

Cap Screw, 7/16" x 2-1/2" NC

1шт.

59

NSS

NOT SOLD SEPARAT

Hex Nut, 3/4" NC

24шт.

60

NSS

NOT SOLD SEPARAT

Cap Screw, 3/4" x 2-1/2" NC

12шт.

61

NSS

NOT SOLD SEPARAT

Cotter Pin, 1/4" x 2"

15шт.

62

14816180

HEADED PIN

Clevis, 1" Dia. X 3" EL

2шт.

63

14816261

CLEVIS

1" x 3-1/4", EL

1шт.

64

14816426

CLEVIS

1" X 5-1/4", EL

1шт.

65

14820355

PIN

Pin, 1-1/4" X 4-3/8"

6шт.

66

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4"

4шт.

67

06221340

LOCK NUT

Jam

1шт.

68

14032409

NUT

Jam 1-1/2"

1шт.

69

NSS

NOT SOLD SEPARAT

Cotter Pin, 3/16" x 2-1/2"

1шт.

70

NSS

NOT SOLD SEPARAT

Cap Screw, 3/8" x 1" NC

4шт.

71

NSS

NOT SOLD SEPARAT

Lock Washer, 3/8"

4шт.

72

NSS

NOT SOLD SEPARAT

Lock Nut, 3/8"

4шт.

73

NSS

NOT SOLD SEPARAT

Hex Jam Nut, 3/8" NC

1шт.

74

14022004

LOCK NUT

Acme Jam, 1-1/4" - 5

2шт.

75

18534107

DECAL

Patent

1шт.

76

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

Square Head Set, 3/8" x 1", NC

2шт.
