Запчасти Case IH TIGER-MATE (08-03) - 3000 PSI CYLINDER (08) - HYDRAULICS

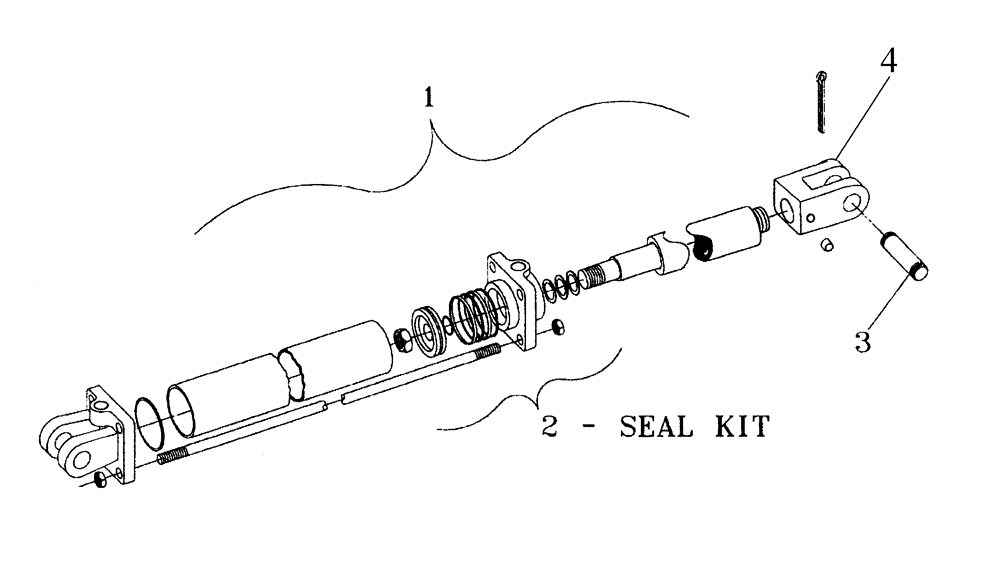

Схема запчастей Case IH TIGER-MATE - (08-03) - 3000 PSI CYLINDER (08) - HYDRAULICS
3
1
2
4

Артикул

Название

Примечание

Количество

1

25032081

CYLINDER

Stroke, 3-1/4" Bore x 8", Rephase

1шт.

87423770R

REMAN-HYD CYLINDER

TIGER-MATE® DMI SINGLE FOLD FIELD CULTIVATOR, Reman for New P/N 25032081

1шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

25035083

CYLINDER

Stroke, 3-1/2" Bore x 8", Rephase

1шт.

84255910R

REMAN-HYD CYLINDER

TIGER-MATE®, Reman For New P/N 25035083

1шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

1

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3" Bore x 24" Stroke - 3000 p.s.i(34-1/4" closed)

1шт.

1

25340241

CYLINDER ASSY.

4" Bore x 24" Stroke - 3000 p.s.i(34-1/2" closed)

1шт.

25340242R

REMAN-HYD CYLINDER

TIGER-MATE® DMI Single Fold Field Cultivator, Reman for New P/N 25340241

1шт.

25340242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25803300

SEAL KIT

Seal Kit, 3.25" Dia Cylinder

1шт.

2

84332697

SEAL KIT

Seal Kit, 3.50" Dia Cylinder

1шт.

2

25833007

SEAL KIT

Seal Kit, 3.00" Dia Cylinder

1шт.

2

25834023

SEAL KIT

Seal Kit, 4.00" Dia Cylinder

1шт.

3

14816241

CLEVIS PIN

1" Dia x 3"

1шт.

Выбрано товаров: 15
