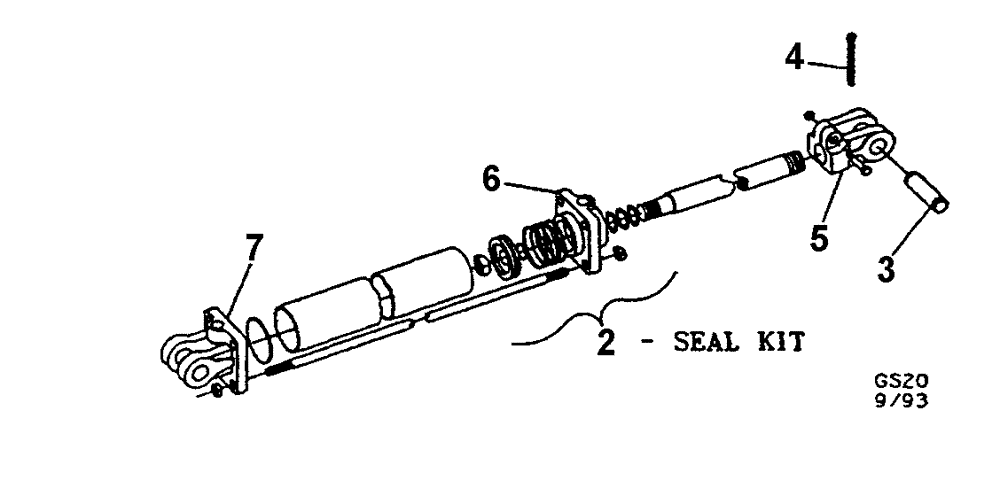

Запчасти Case IH TIGER-MATE (08-02) - 2500 PSI CYLINDERS (08) - HYDRAULICS

1

25032080

Stroke, 3-1/4" Bore x 8", Rephase

1шт.

1

25035082

HYDRAULIC CYLINDER

Stroke, 3-1/2" Bore x 8", Rephase

1шт.

1

25030242

CYLINDER ASSY.

Stroke, 3" Bore x 24" - 2500 PSI

1шт.

1

25035241

CYLINDER ASSY.

Stroke, 3-1/2" Bore x 24" - 2500 PSI

1шт.

25335242R

REMAN-HYD CYLINDER

TIGER-MATE®;Reman For New P/N25035241

1шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

1

25040242

CYLINDER ASSY.

Stroke, 4" Bore x 24" - 2500 PSI

1шт.

2

25803200

KIT

Seal, 3-1/4" x 8"

1шт.

2

25803535

KIT

Seal, 3-1/2" x 8"

1шт.

2

25803035

KIT

Seal, 3" x 24"

1шт.

2

25803526

KIT

Seal, 3-1/2" x 24"

1шт.

2

25804023

SEAL KIT

Kit, 4" x 24"

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3"

2шт.

4

NSS

NOT SOLD SEPARAT

Cotter Pin, 1/8"

2шт.

5

25803030

CLEVIS

3" X 24"

1шт.

5

25804057

SHAFT

3-1/2" x 24" Clevis

1шт.

5

25804031

CLEVIS

4" x 24"

1шт.

6

25803025

SHAFT

Cylinder Head, 3" x 24", 3/4" SAE Ports

1шт.

6

25803529

SHAFT

Cylinder Head, 3-1/2" x 24", 3/4" SAE Ports

1шт.

6

25804052

CYLINDER ASSY.

4" x 24" Head, 3/4" SAE Ports

1шт.

7

25803026

SHAFT

Cylinder Base, 3" x 24", 3/4" SAE Ports

1шт.

7

25803523

SHAFT

Cylinder Base, 3-1/2" x 24", 3/4" SAE Ports

1шт.

7

25804055

CYLINDER ASSY.

4" x 24" Base, 3/4" SAE Ports

1шт.
