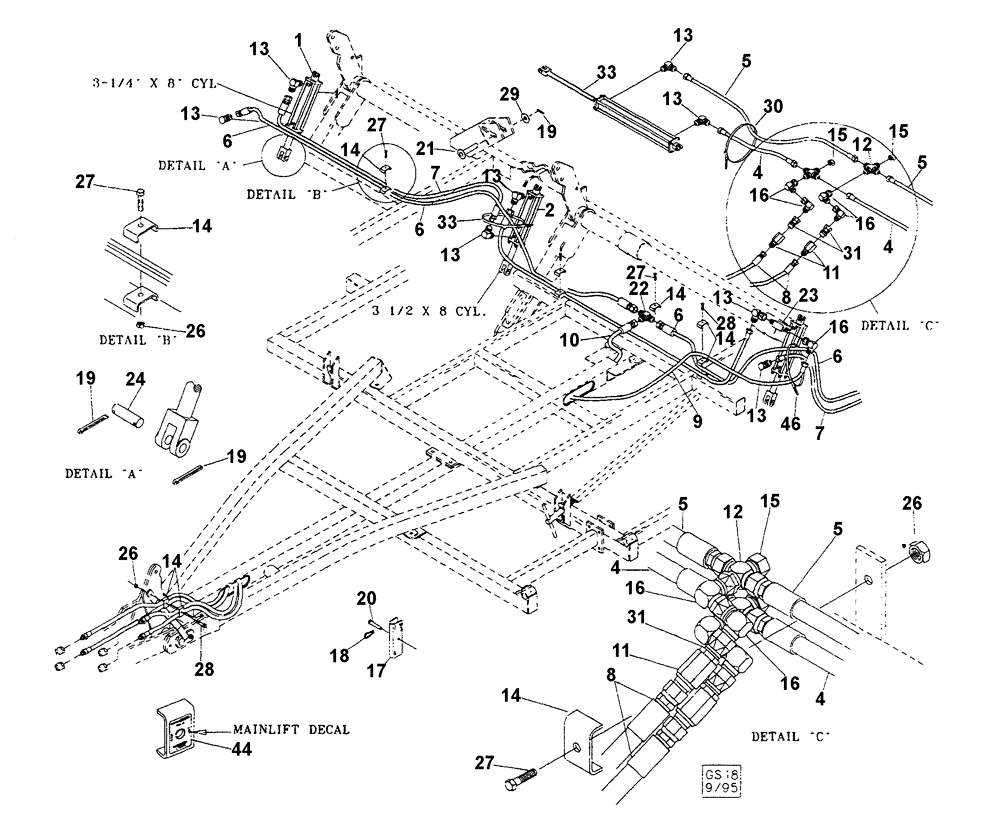

Запчасти Case IH TIGER-MATE (08-01) - HYDRAULICS (08) - HYDRAULICS

1

25032081

CYLINDER

Hydraulic, 3-1/4" x 8", Rephase

2шт.

87423770R

REMAN-HYD CYLINDER

TIGER-MATE® DMI SINGLE FOLD FIELD CULTIVATOR, Reman for New P/N 25032081

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

25032080

Hydrualic Cylinder, 3-1/4" x 8", Rephase, Start Serial: 801053

2шт.

For Machines With Serial Number 801053 & Before

1шт.

2

25035083

CYLINDER

Hydraulic, 3-1/2" x 8", Rephase

2шт.

84255910R

REMAN-HYD CYLINDER

TIGER-MATE®, Reman For New P/N 25035083

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

2

25035082

HYDRAULIC CYLINDER

3-1/2" x 8", Rephase, Start Serial: 801053

2шт.

For Machines With Serial Number 801053 & Before

1шт.

3

25340241

CYLINDER ASSY.

4" x 24", 3000 psi, 20-1/2' - 31-1/2' Frames, Start Serial: 620044

2шт.

For Machines With Serial Number 620044 & After

1шт.

25340242R

REMAN-HYD CYLINDER

TIGER-MATE® DMI Single Fold Field Cultivator, Reman for New P/N 25340241

2шт.

25340242C

CORE-HYD CYLINDER

Return Number

1шт.

3

25040242

CYLINDER ASSY.

Hydrualic, 4" x 24", 2500 psi, 20-1/2' - 30-1/'2 Frames, Start Serial: 523708

2шт.

For Mahcines With Serial Number 523708 & Before

1шт.

3

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

Hydraulic, 3" x 24", 3000 psi, 16-1/2' - 18-1/2' Frames, Start Serial: 620044

2шт.

For Machines With Serial Number 620044 & After

1шт.

3

25030242

CYLINDER ASSY.

Hydrualic, 3" x 24", 2500 psi, 16-1/2' - 18-1/2' Frames, Start Serial: 523708

2шт.

For Mahcines With Serial Number 523708 & Before

1шт.

3

25035241

CYLINDER ASSY.

Hydraulic, 3-1/2" x 24", 2500 psi, 25-1/2' - 27-1/2' Frames, Start Serial: 901149

2шт.

For Machines With Serial Number 901149 & Before

1шт.

25335242R

REMAN-HYD CYLINDER

TIGER-MATE®;S/N 901149 & Before ;Reman For New P/N25035241

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

4

25600658

HOSE ASSY.

Hydraulic, 3/8" - 16" Long

2шт.

5

25600643

HYDRAULIC HOSE,0.38" ID x 44.50", SAE 100R17

3/8" - 44-1/2" Long

2шт.

6

25600643

HYDRAULIC HOSE,0.38" ID x 44.50", SAE 100R17

3/8" - 44-1/2" Long

2шт.

6

25600705

HOSE ASSY.

Hydraulic, 3/8" - 120" Long (21-1/2' , 23-1/2' Frames)

2шт.

6

25600706

HYDRAULIC HOSE,0.38" ID x 144.00", SAE 100R17

3/8" - 144" Long (25-1/2', 27-1/2' Frames )

2шт.

6

25600659

HYDRAULIC HOSE,0.38" ID x 167.00", SAE 100R17

3/8" - 167" Long (29-1/2' Frame)

2шт.

7

25600676

HYDRAULIC HOSE,0.38" ID x 88.00", SAE 100R17

3/8" - 88" Long (21-1/2' , 23-1/2' Frames)

2шт.

7

25600669

HYDRAULIC HOSE,9.65mm ID x 2895.6mm L, SAE 100R17

3/8" - 114" Long (25-1/2 & 27-1/2 Frames)

2шт.

7

25600671

HYDRAULIC HOSE,0.38" ID x 138.00", SAE 100R17

3/8" - 138" Long - 29-12/ Frame

2шт.

8

25610700

HYDRAULIC HOSE

3/8" - 280" Long

2шт.

9

25610852

HYDRAULIC HOSE

1/2" - 294" Long

1шт.

10

25610851

HOSE ASSY.

Hydraulic, 1/2" - 250" Long

1шт.

11

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle

2шт.

12

25707516

UNION

3/4", JICM Cross

2шт.

13

25707521

ELBOW

JICM 3/4" x 3/4" SAEM, 90 Degree

11шт.

14

6200125

SPROCKET

Painted

11шт.

15

25707535

CAP COVER

2шт.

16

25707531

ELBOW

3/4" JICM x 3/4" JICF

6шт.

17

04632710

STOP

Cylinder, Blue

2шт.

18

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair

2шт.

19

14700803

COTTER PIN

1/4" x 2"

2шт.

20

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/2", EL

2шт.

21

14816360

CLEVIS

Pin, 1" Dia. x 4-1/2", EL

2шт.

22

25707518

3 WAY CONNECTION

Tee, 3/4" JICM

1шт.

23

25707522

3 WAY CONNECTION

Tee, 3/4" JICM x 3/4" SAEM

1шт.

24

14816229

CLEVIS PIN

1" Dia. x 2-3/4" EL

2шт.

25

25600691

HYDRAULIC HOSE,9.65mm ID x 2514.6mm L, SAE 100R17

3/8" - 98" Long

1шт.

26

14000601

NUT,3/8"-16, G5

Hex, NC, 3/8"

8шт.

27

16006061

BOLT

3/8" x 1-1/2", NC, Cap

5шт.

28

16006091

SCREW,Hex, 3/8" - 16 x 2 1/4", Gr 2

Cap, 3/8" x 2-1/4"

3шт.

29

17016001

WASHER

Standard, 1"

2шт.

30

30007006

PLASTIC RING

Hose Tie, 6"

2шт.

31

25707534

ADAPTER

3/4" SAEM x 3/4" JICF

2шт.

32

18534237

DECAL

Main Lift

1шт.

33

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 24" Hose

2шт.
