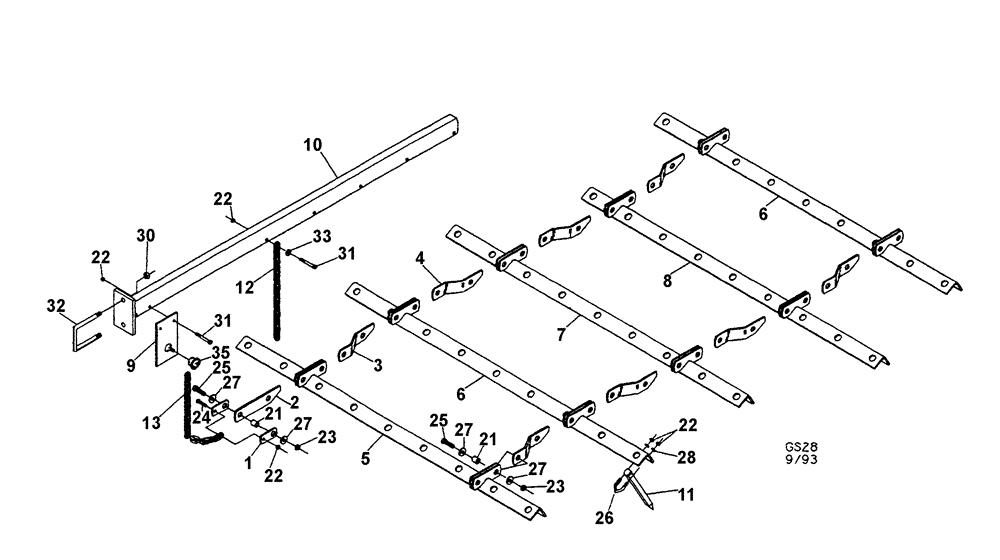

Запчасти Case IH TIGER-MATE (09-13) - SPIKE TOOTH HARROW (09) - CHASSIS/ATTACHMENTS

1

06260066

LINK

Connecting

4шт.

2

06260067

LINK

Straight

2шт.

3

06260068

LINK

RH

4шт.

4

06260069

LINK

LH

4шт.

5

06260061

CHANNEL

6 Spike Harrow, 1st Bar

1шт.

5

06260071

CHANNEL

7 Spike Harrow, 1st Bar

1шт.

5

06260091

CHANNEL

9 Spike Harrow, 1st Bar

1шт.

5

06260111

CHANNEL

11 Spike Harrow, 1st Bar

1шт.

6

06260062

CHANNEL

6 Spike Harrow, 2nd & 5th Bar

2шт.

6

06260072

CHANNEL

7 Spike Harrow, 2nd & 5th Bar

2шт.

6

06260092

CHANNEL

9 Spike Harrow, 2nd & 5th Bar

2шт.

6

06260112

CHANNEL

11 Spike Harrow, 2nd & 5th Bar

2шт.

7

06260063

CHANNEL

6 Spike Harrow, 3rd Bar

1шт.

7

06260073

CHANNEL

7 Spike Harrow, 3rd Bar

1шт.

7

06260093

CHANNEL

9 Spike Harrow, 3rd Bar

1шт.

7

06260113

CHANNEL

11 Spike Harrow, 3rd Bar

1шт.

8

06260064

BAR

6 Spike Harrow, 4th Bar

1шт.

8

06260074

CHANNEL

7 Spike Harrow, 4th Bar

1шт.

8

06260094

CHANNEL

9 Spike Harrow, 4th Bar

1шт.

8

06260114

CHANNEL

11 Spike Harrow, 4th Bar

1шт.

9

06260020

PLATE

Chain Tow

2шт.

10

06260010

CHANNEL

Spike Harrow Mount

2шт.

11

33407513

SHOVEL

Harrow Spike Tooth

1шт.

12

22004221

CHAIN

Lift, 1/4" x 22-1/2" Long

10шт.

13

22004301

CHAIN

Pull, 1/4" x 30-1/2" Long

2шт.

21

02323002

BUSHING

Heat Treated

20шт.

22

NSS

NOT SOLD SEPARAT

NC Hex Nut, 3/8"

1шт.

23

NSS

NOT SOLD SEPARAT

NC Hex Nut, 1/2"

20шт.

24

16006065

BOLT

NC Cap Screw, 3/8" x 1-1/2", Gd. 5

2шт.

25

16008075

BOLT

NC Cap Screw, 1/2" x 1-3/4", Gd. 5

20шт.

26

16306050

U-BOLT

3/8" x 1-1/16" x 2-1/8"

1шт.

27

NSS

NOT SOLD SEPARAT

Flat Washer, 1/2"

40шт.

28

NSS

NOT SOLD SEPARAT

Lock Washer, 3/8"

1шт.

30

NSS

NOT SOLD SEPARAT

NC Hex Nut, 5/8"

4шт.

31

16006125

BOLT

Cap Screw, 3/8"-16 x 3", NC, Gd. 5

14шт.

32

16310009

U-BOLT

BOLT "U" 5/8" x 4" x 4-1/2"

2шт.

33

NSS

NOT SOLD SEPARAT

Flat Washer, 3/8"

10шт.

35

30000170

LUG

Caplug, 5/16" Dia.

21шт.
