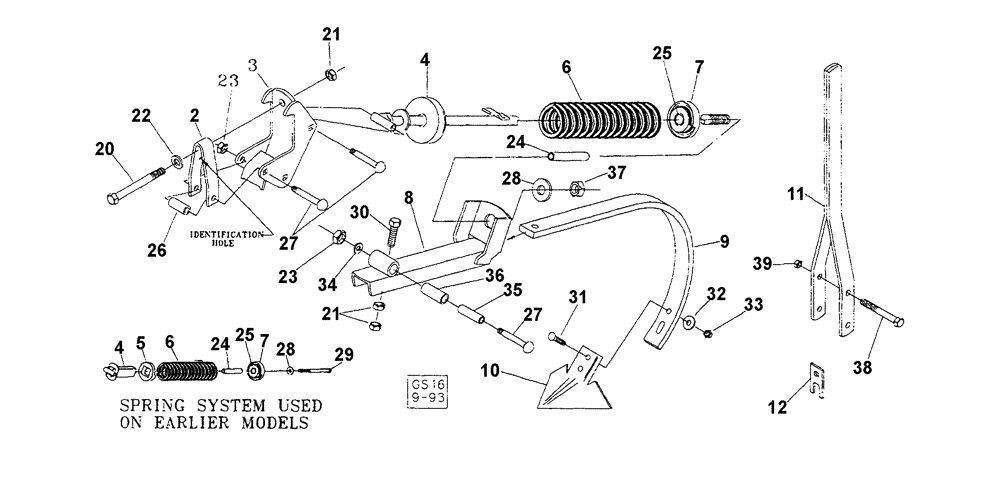

Запчасти Case IH TIGER-MATE (09-06) - SHANK (09) - CHASSIS/ATTACHMENTS

1

06210000

SHANK

Mount Assy, Does Not Inc. 9 - 10, Or 31 - 33

1шт.

1

06200009

SHANK

Assembly, Does Not Inc. 10 Or 31 - 33

1шт.

2

06210150

BRACKET

1шт.

3

06210100

SHANK

Mount

1шт.

4

06210400

SPRING BOX

Holder

1шт.

4

06210300

SPRING BOX

Holder - Replaced by PN #06210400 (Earlier Machines SN # 901149 & Before), Start Serial: 901149

1шт.

Used On Serial Number 901149 & Before

1шт.

5

20090110

SPRING BOX

Casting, Holder

1шт.

Used On Earlier Models

1шт.

6

24143891

COIL SPRING

Compression

1шт.

7

20090101

HOLDER

Spring Casting, Inc. 25

1шт.

8

06210200

CHANNEL

1шт.

9

33017512

SHANK

1шт.

10

33200007

SWEEP

7"

1шт.

10

33200008

SWEEP

MAXXI-POINT 7.3" - Ultrawing

1шт.

10

33200009

SWEEP

9"

1шт.

10

33200010

SWEEP

MAXXI-POINT 9.3" - Ultrawing

1шт.

10

33200017

SWEEP

7", Low Crown

1шт.

11

06200040

LEVER ASSY.

Spring Compression

1шт.

12

06200042

SPACER

Plate

1шт.

20

16010245

BOLT

Cap, 5/8" x 6", NC, Gd 5

1шт.

21

NSS

NOT SOLD SEPARAT

Hex Nut, 5/8", NC

3шт.

22

NSS

NOT SOLD SEPARAT

Flat Washer, 5/8"

1шт.

23

NSS

NOT SOLD SEPARAT

Hex Lock Nut, 1/2" NC

3шт.

24

06210370

BUSHING

1шт.

Used On Earlier Models

1шт.

25

06210350

BUSHING

1шт.

26

06210170

TUBE,0.546" ID, 0.84" OD, 1.88" Length

Bushing

1шт.

27

16108144

CARRIAGE BOLT,1/2" - 13 x 3 5/8", Gr 5

1/2" x 3-5/8", NC

3шт.

28

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

Special, 9/16" x 1-3/8"

1шт.

Used On Earlier Models

1шт.

29

16900832

BOLT

Hex, 1/2" x 8", NC, Gd 5

1шт.

Used On Earlier Models

1шт.

30

16010085

BOLT

Cap, 5/8" x 2", NC, Gd. 5

1шт.

31

16207060

PLOW BOLT

7/16" x 1-1/2", NC

2шт.

32

NSS

NOT SOLD SEPARAT

Flat Washer,, 7/16"

2шт.

33

NSS

NOT SOLD SEPARAT

Hex Nut, 7/16" NC

2шт.

34

17208001

LOCK WASHER

1/2"

1шт.

35

06210250

TUBE,0.532" ID, 0.747" OD, 2.5" Length

Bushing, 3/4" OD, HT

1шт.

36

44007510

BUSHING,19.43mm ID x 25.78mm OD x 61.92mm L

Connex,, 3/4" ID, HT

1шт.

37

14020801

NUT

Hex, 1/2", NC, Heavy Duty

1шт.

38

16008201

BOLT

Hex, 1/2" x 5", NC

2шт.

39

14000801

NUT,1/2"-13, G5

Hex

2шт.
