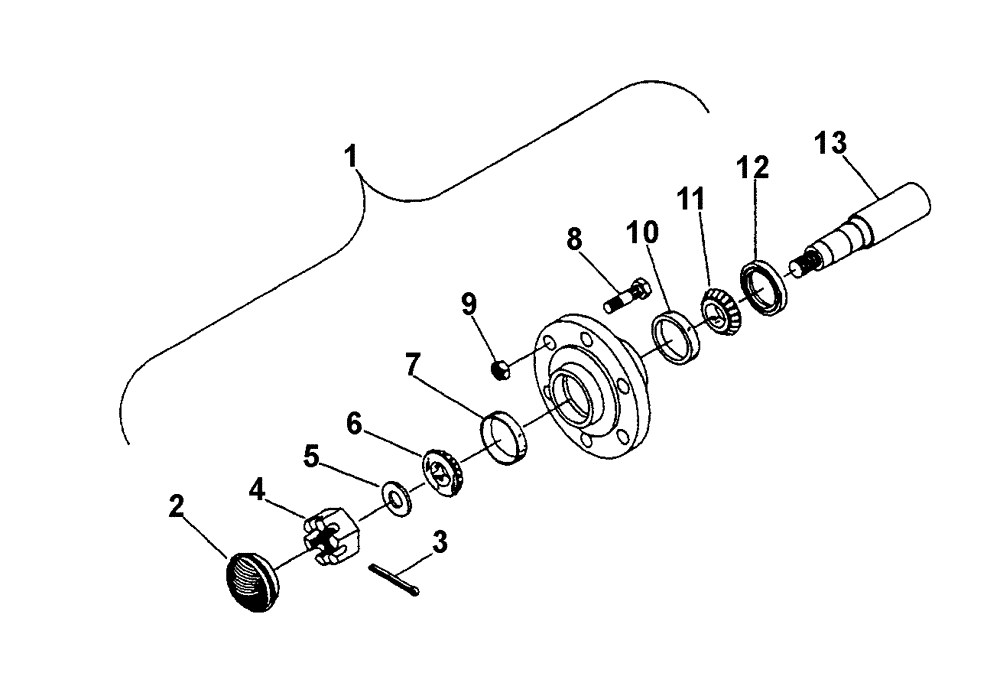

Запчасти Case IH TIGER-MATE (09-05) - W545 HUB & SPINDLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

28015501

HUB ASSY.

W545, With Spindle

1шт.

2

28480330

DUST CAP

1шт.

3

14700403

COTTER PIN

1/8 x 1-1/2, Obsolete

1шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

NF

1шт.

5

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

6

572563R1

ROLLER BEARING,27 mm ID x 50.317 mm OD x 14.732 mm

Outer, L44649

1шт.

7

572564R1

BEARING CUP

Outer, L44610

1шт.

8

16408083

STUD

1/2 X 1-7/8, NF

5шт.

9

14080802

NUT

1/2, NF Wheel

5шт.

10

536054R1

BEARING CUP,60mm OD x 11.94mm W

Inner, L68111

1шт.

11

536053R91

ROLLER BEARING,1.3775" ID x 2.3622" OD x 0.66"

Inner, L68149

1шт.

12

21931752

OIL SEAL

17146

1шт.

13

28015501

HUB ASSY.

Spindle

1шт.
