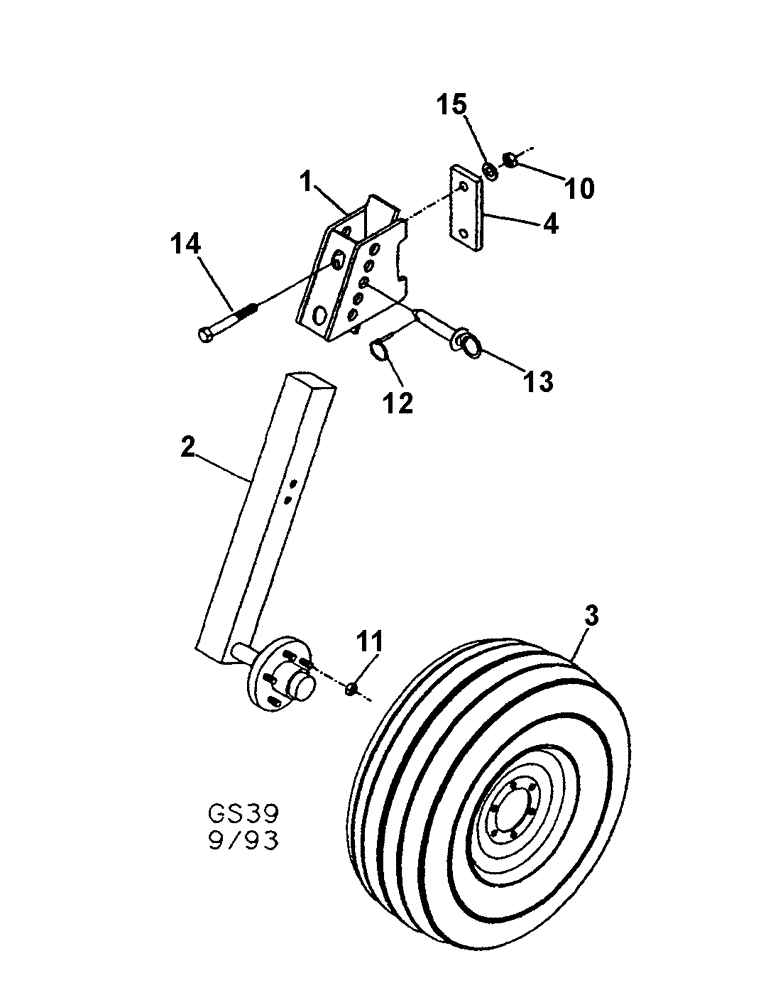

Запчасти Case IH TIGER-MATE (09-03) - OPTIONAL STABILIZER WHEEL (09) - CHASSIS/ATTACHMENTS

1

06222020

BRACKET

Stabilizer Wheel

1шт.

2

06222030

BRACKET

Stabilizer Wheel Tube

1шт.

3

10008100

WHEEL ASSY.

20.5 x 8

1шт.

4

05021000

PLATE

Upper Shank, Painted

1шт.

10

14001201

NUT

Hex, 3/4", NC, Gd.2

2шт.

11

14080802

NUT

Hex,1/2", NF, Tapered Lug

5шт.

12

14710814

SMALL PIN

1/4 x 1-3/4", Klik

1шт.

13

14816348

PIN,25.4mm OD x 133.35mm L

5/8" x 3-1/8"

1шт.

14

16012225

BOLT

3/4" x 5-1/2", NC, Cap, Gd 5

2шт.

15

17212001

LOCK WASHER

3/4"

2шт.
