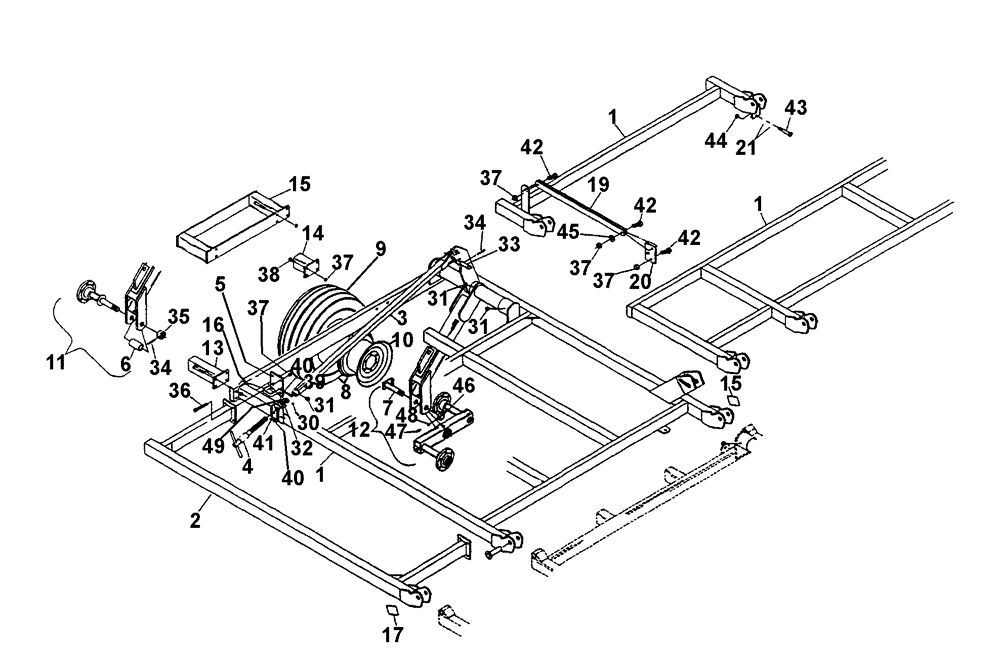

Запчасти Case IH TIGER-MATE (09-02) - WING FRAME (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
06202500
BAR ASSY.
1-1/2' Wing, RH, 12-1/2' - 14-1/2' Machines
1шт.
1
06202550
FRAME
1-1/2' Wing, LH, 12-1/2' - 14-1/2' Machines
1шт.
1
06202600
FRAME
3-1/2' Wing, RH, 16-1/2' - 18-1/2' Machines
1шт.
1
06202650
FRAME
3-1/2' Wing, LH, 16-1/2' - 18-1/2' Machines
1шт.
1
06200350
FRAME
5-1/2' Wing, RH, 21-1/2' - 23-1/2' Machines
1шт.
1
06200450
FRAME
5-1/2' Wing, LH, 21-1/2' - 23-1/2' Machines
1шт.
1
06200550
BAR ASSY.
7-1/2' Wing, LH, 25-1/2' - 27-1/2' Machines
1шт.
1
06200650
BAR ASSY.
7-1/2' Wing, RH, 25-1/2' - 27-1/2' Machines
1шт.
1
06200750
BAR ASSY.
9-1/2' Wing, RH, 29-1/2' - 31-1/2' Machines
1шт.
1
06200850
BAR ASSY.
9-1/2' Wing, LH, 29-1/2' - 31-1/2' Machines
1шт.
2
06200900
BAR ASSY.
9-1/2' Wing, Front, LH, 29-1/2' - 31-1/2' Machines
1шт.
2
06201000
BAR ASSY.
9-1/2' Wing, Front, RH, 29-1/2' - 31-1/2' Machines
1шт.
3
06201740
TUBE,71" Length
Depth Adjustment
2шт.
3
06201710
TUBE,71.25" Length
Depth Adjustment, Start Serial: 523708
2шт.
For Machines With Serial Number 523708 & Before
1шт.
4
06201750
TUBE
Depth Adjustment Screw
2шт.
4
06201725
ADJUSTMENT SCREW,1 1/4" - 5
Depth, Start Serial: 523708
2шт.
For Machines With Serial Number 523708 & Before
1шт.
5
06202170
PLATE
Flat
1шт.
6
06201450
SPACER
Tube
2шт.
7
06201400
ROD
Kit, Incl 35, 46, 47
2шт.
7
04661850
PIN
Pivot Axle, 1-1/2"
2шт.
8
10008148
TYRE/TIRE
9.5L x 15", Assembly
1шт.
8
10006150
WHEEL ASSY.
7.60 x 15", Assembly
1шт.
9
11009157
TYRE/TIRE
9.5L x 15", 6-Ply
1шт.
9
11007150
TYRE/TIRE
7.60 x 15", 6-Ply
1шт.
10
10108152
WHEEL ASSY.
6-Hole, 8" x 15"
1шт.
10
10106150
LAND WHEEL
6-Hole, 6" x 15"
1шт.
11
28070962
HUB ASSY.
Single Axle, 709
1шт.
12
06201500
AXLE
LH, Walking Assembly
1шт.
12
06201600
AXLE
RH, Walking Assembly
1шт.
13
06202020
BAR ASSY.
10" Extension
1шт.
14
06202000
BAR ASSY.
4" Extension
1шт.
15
06202030
BAR ASSY.
12" Double Extension, Wing
1шт.
16
06201727
STOP
Handle, Start Serial: 322396
2шт.
For Machines With Serial Number 322396 & After
1шт.
16
06220140
STOP
Handle, Start Serial: 121416-222301
2шт.
For Machines With Serial Number 121416-222301
1шт.
17
18534243
REFLECTOR
Amber
2шт.
18
18534244
REFLECTOR
Red
2шт.
19
06202580
LINK
Hold Down
2шт.
20
06202590
LUG
Hold Down
2шт.
21
04626120
SHIM
.060 Thick
1шт.
21
04626130
SHIM
.113 Thick
1шт.
30
NSS
NOT SOLD SEPARAT
Cup Point, 3/8" - 16, NC
2шт.
31
NSS
NOT SOLD SEPARAT
NPT Self Tapping, Zerk1/8"
1шт.
32
17620030
WASHER,32.15mm ID x 47.63mm OD x 10mm Thk
1-1/4"
2шт.
33
14816180
HEADED PIN
Clevis, 1" Dia. x 3", EL
2шт.
34
NSS
NOT SOLD SEPARAT
Cotter Pin, 1/4" x 2"
4шт.
35
14032408
JAM NUT
Slotted, 1-1/2", NC
2шт.
36
16010205
BOLT
Cap Screw, 5/8" x 5" NC Gd.5
16шт.
37
NSS
NOT SOLD SEPARAT
Hex Nut, 5/8" NC
1шт.
38
NSS
NOT SOLD SEPARAT
Cap Screw, 5/8" x 3-1/4" NC
16шт.
39
NSS
NOT SOLD SEPARAT
Hex Screw, 3/8" x 1" Gd.5
2шт.
40
NSS
NOT SOLD SEPARAT
Lock Washer, 3/8"
2шт.
41
NSS
NOT SOLD SEPARAT
Lock Nut, 3/8"
2шт.
42
NSS
NOT SOLD SEPARAT
Cap Screw, 5/8" x 1-3/4" NC
8шт.
43
NSS
NOT SOLD SEPARAT
Cap Screw, 1/2" x 1-1/2" NC
2шт.
44
NSS
NOT SOLD SEPARAT
Hex Nut, 1/2" NC
2шт.
45
NSS
NOT SOLD SEPARAT
Standard Washer, 5/8"
2шт.
46
14032409
NUT
Hex Jam, 1-1/2", NC
2шт.
47
16806045
SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"
Square Head Set, 3/8" X 1", NC
2шт.
48
NSS
NOT SOLD SEPARAT
Hex Nut, 3/8" NC
2шт.
49
14022004
LOCK NUT
Jam, 1-1/4" - 5" Acme
2шт.
49
NSS
NOT SOLD SEPARAT
Roll, 1/4" x 2-1/4", (for Machine With W/Sn., #523708 & Before), Start Serial: 523708
2шт.
Выбрано товаров: 65
