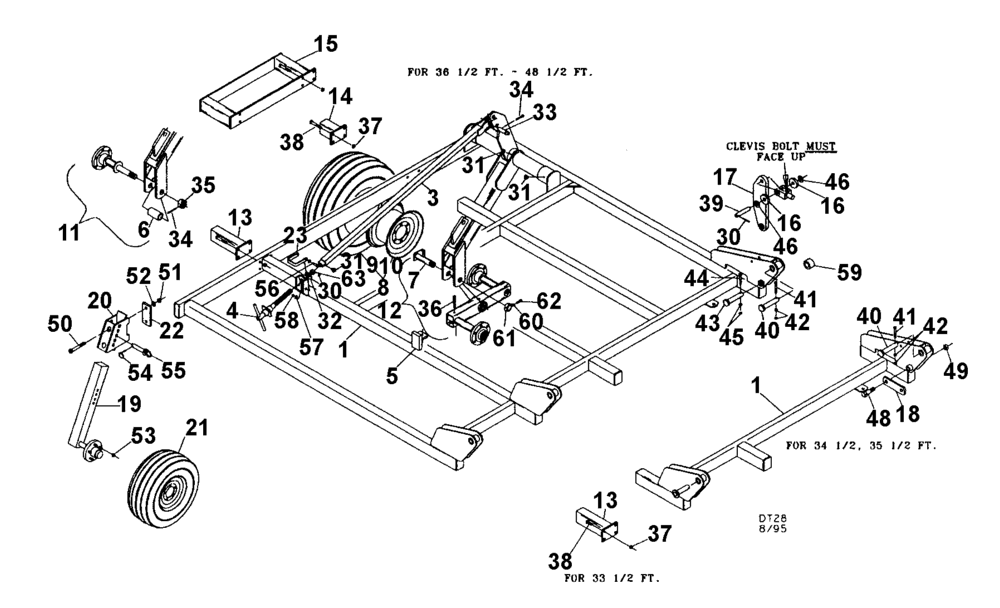

Запчасти Case IH TIGER-MATE (09-03) - OUTER WING (09) - CHASSIS/ATTACHMENTS

1

06223300

BAR ASSY.

Extension Wing, RH, 34-1/2" Machine

1шт.

1

06223400

BAR ASSY.

Extension Wing, LH, 34-1/2" Machine

1шт.

1

06220300

BAR ASSY.

5-1/2", Outer Wing, RH

1шт.

1

06220400

BAR ASSY.

5-1/2", Outer Wing, LH

1шт.

1

06220500

BAR ASSY.

7-1/2" Outer Wing, RH

1шт.

1

06220600

BAR ASSY.

7-1/2" Outer Wing, LH

1шт.

3

06201740

TUBE,71" Length

Depth Adjustment

2шт.

3

06201710

TUBE,71.25" Length

Depth Ajustment, Start Serial: 5236

2шт.

For Machines With Serial Number 523649 & Before

1шт.

4

06201750

TUBE

Depth Adjsutment

2шт.

4

06201725

ADJUSTMENT SCREW,1 1/4" - 5

Depth

2шт.

For Machines With Serial Number 523649 & Before

1шт.

5

06220350

WHEEL WEIGHT

, Start Serial: 5236

1шт.

6

06201450

SPACER

2шт.

7

06201400

ROD

Kit, Incl 60 - 62

2шт.

7

04661850

PIN

Pivot Axle, 1 1/2"

2шт.

8

10008148

TYRE/TIRE

9.5L x 15", For 5-1/2 Wings With Single Axles

2шт.

8

10006150

WHEEL ASSY.

7.60 x 15, For 7-1/2' & 9-1/2" Wings With Tandem Axles

4шт.

9

11009157

TYRE/TIRE

9.5L x 15", 6 - Ply, Obsolete

1шт.

9

11007150

TYRE/TIRE

7.60 x 15", 6 - Ply

1шт.

10

10108152

WHEEL ASSY.

15 x 8, 6 - Hole

1шт.

10

10106150

LAND WHEEL

15 x 6, 6 - Hole

1шт.

11

28070962

HUB ASSY.

709, Single Axle

1шт.

12

06201500

AXLE

LH, Walking Axle

1шт.

12

06201600

AXLE

RH, Walking Axle

1шт.

13

06202020

BAR ASSY.

Extension Wing, 10"

1шт.

14

06202000

BAR ASSY.

Extension Wing, 4"

1шт.

15

06202030

BAR ASSY.

Double, Extension Wing, 12"

1шт.

16

06220844

ROLLER

4шт.

17

06220450

LINK

Weld

2шт.

18

06223350

LINK/SHACKLE

Hold

2шт.

19

06222030

BRACKET

Tiger-mate Gauge Wheel

2шт.

20

06222020

BRACKET

Gauge Wheel Mounting

2шт.

21

10008100

WHEEL ASSY.

Tire, 20.5 x 8

2шт.

22

05021000

PLATE

2шт.

23

06201727

STOP

Handlle

1шт.

For Machines With Serial Number 322323 & After

1шт.

23

06220140

STOP

Handle 3223 for ref, Start Serial: 1

1шт.

For Machines With Serial Number 222322 & Before

1шт.

30

NSS

NOT SOLD SEPARAT

Cup Point Set Screw 3/8" - 16, NC

2шт.

31

NSS

NOT SOLD SEPARAT

1/8", NPT, Self Tapping Zerk

1шт.

32

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Dia.

2шт.

33

14816180

HEADED PIN

1" Dia. x 3', EL, Clevis

2шт.

34

NSS

NOT SOLD SEPARAT

Cotter Pin 1/4" x 2"

4шт.

35

NSS

NOT SOLD SEPARAT

Hex, Slotted Nut (14052401), 1-1/2" NC

2шт.

36

NSS

NOT SOLD SEPARAT

1/2" x 1", NC, Hex Bolt

2шт.

37

NSS

NOT SOLD SEPARAT

NC Hex, Nut, 5/8"

1шт.

38

NSS

NOT SOLD SEPARAT

5/8" x 3-1/4", NC, Cap Screw

16шт.

39

06220790

ROD ASSY.

Pin

2шт.

40

14820356

CLEVIS

1-1/4 x 5-1/8

6шт.

41

NSS

NOT SOLD SEPARAT

Bolt, 7/16' x 3"

6шт.

42

NSS

NOT SOLD SEPARAT

NUT, 7/16"-14, G5

12шт.

43

14816351

CLEVIS

1 Dia. x 4.31, Obsolete

2шт.

44

NSS

NOT SOLD SEPARAT

BOLT, Hex, 3/8"-16 x 3"

2шт.

45

NSS

NOT SOLD SEPARAT

NUT, 3/8"-16

4шт.

46

NSS

NOT SOLD SEPARAT

WASHER, 1", SAE

4шт.

48

NSS

NOT SOLD SEPARAT

BOLT, Hex, 1"-8 x 2 1/2"

4шт.

49

NSS

NOT SOLD SEPARAT

NUT, 1"-8

4шт.

50

NSS

NOT SOLD SEPARAT

Hex, Bolt, GD 5, 3/4" X 5-1/2"

4шт.

51

NSS

NOT SOLD SEPARAT

Nut, 3/4"

4шт.

52

NSS

NOT SOLD SEPARAT

Lock Washer, 3/4"

4шт.

53

NSS

NOT SOLD SEPARAT

Hex Wheel Nut, 1/2" NF

10шт.

54

14710814

SMALL PIN

1/4 Dia. x 1-3/4, Klik

2шт.

55

14816348

PIN,25.4mm OD x 133.35mm L

Weldment

2шт.

56

NSS

NOT SOLD SEPARAT

Hex, Head, Cap Screw 3/8"-16 x 1"

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER, LOCK, 3/8"

2шт.

58

NSS

NOT SOLD SEPARAT

NUT, LOCK, 3/8"-16

2шт.

59

06220360

BUSHING

Collar

2шт.

60

NSS

NOT SOLD SEPARAT

NUT, 3/8" NC, Hex Jam

2шт.

61

14032409

NUT

1-1/2, NC, Jam

2шт.

62

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, NC, Square Head Set

2шт.

63

14022004

LOCK NUT

1-1/4 - 5 Acme, Jam

2шт.

63

NSS

NOT SOLD SEPARAT

1/4" x 2-1/4" Roll pin

2шт.

For Machines With Serial Number 523649 & Before

1шт.
