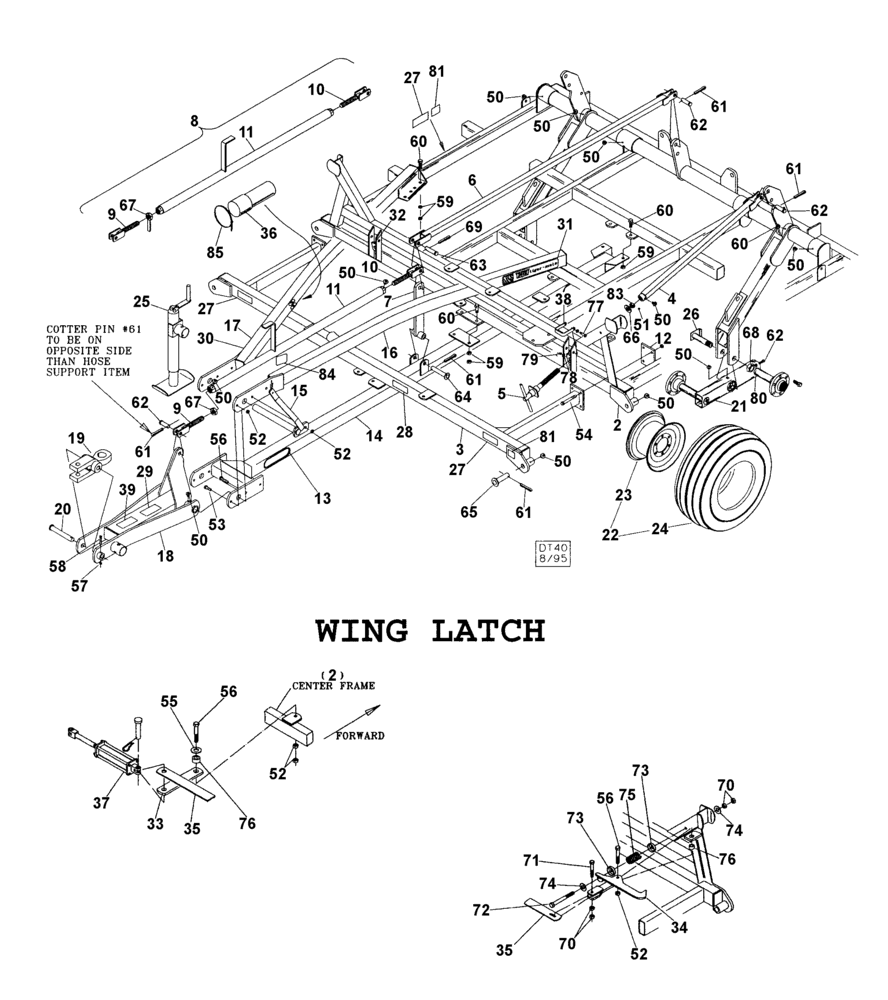

Запчасти Case IH TIGER-MATE (09-01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
2
06225060
BAR ASSY.
Center Frame
1шт.
3
06220200
BAR ASSY.
Front
1шт.
4
06201740
TUBE,71" Length
Depth Adjust
2шт.
4
06201710
TUBE,71.25" Length
Depth Adjust, Start Serial: 523649
2шт.
For Machines With Serial Number 523649 & Before
1шт.
5
06201750
TUBE
Depth Adjust Screw
2шт.
5
06201725
ADJUSTMENT SCREW,1 1/4" - 5
2шт.
For Machines With Serial Number 523649 & Before
1шт.
6
06201800
TUBE,102" Length
Transport Adjust
1шт.
7
06201850
ROCKER ARM
1шт.
8
06221350
TURNBUCKLE
Inc. 9 - 11 & 67
1шт.
9
06201920
CLEVIS
Threaded, RH
1шт.
10
06201930
CLEVIS
Threaded, LH
1шт.
11
06221310
TURNBUCKLE
Body
1шт.
12
06202170
PLATE
Flat
2шт.
13
30004200
SEALING STRIP
Grommet
2шт.
14
06221200
HITCH PIN
Pull
1шт.
15
06202490
HITCH PIN
1шт.
16
06221250
HITCH PIN
LH
1шт.
17
06221270
HITCH PIN
RH
1шт.
18
06202400
HITCH PIN
1шт.
19
20092400
HITCH
Clevis
1шт.
19
06202450
CLEVIS
, Start Serial: 222322
1шт.
For Machines With Serial Number 222322 & Before
1шт.
20
06202480
HITCH PIN
1-1/4
1шт.
21
06221400
TUBE ASSY.
Walking Axle, RH, 783
1шт.
21
06221450
TUBE ASSY.
Walking Axle, LH, 783
1шт.
22
10008156
WHEEL ASSY.
9.5L x 15, With Guard - 8 Ply
4шт.
23
10108154
WHEEL
8 x 15, 6 Hole, With Guard
4шт.
24
1980928C1
TYRE/TIRE
9.5 x 15, 8 - Ply
4шт.
25
32252000
JACK ASSY.
5000, Painted
1шт.
25
32223000
JACK ASSY.
3000
1шт.
26
06201400
ROD
Kit, Incl 62, 68
1шт.
26
04661850
PIN
1-1/2 Dia Pivot Axle
1шт.
27
18534227
DANGER DECAL
Danger
4шт.
28
18534228
DECAL
Caution
1шт.
29
18534140
WARNING DECAL
Warning
1шт.
30
18534134
DECAL
Caution
1шт.
31
18534225
DECAL
Tiger-mate, Obsolete
2шт.
32
18534221
DECAL
Deeper
6шт.
33
06223110
LINK/SHACKLE
Flat
2шт.
34
06223100
BRACKET
Wing Holder, RH
1шт.
34
06223130
SPRING BOX
Wing Holder, LH
1шт.
35
06223120
LINK
2шт.
36
30026030
TUBE
Manual Canister
1шт.
37
25320040
CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke
2 x 4, 3000 psi, Start Serial: 620000
1шт.
For Machines With Serial Number 620000 & After
1шт.
37
25320040
CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke
2 x 4, 3000 PSI, Start Serial: 523649
1шт.
For Machines With Serial Number 523649 & Before
1шт.
38
06201727
STOP
Handle
2шт.
39
18534275
DANGER DECAL
Danger
1шт.
50
NSS
NOT SOLD SEPARAT
NPT Self-Tapping Zerk
26шт.
51
NSS
NOT SOLD SEPARAT
3/8 - 16, NC, Cup Point
2шт.
52
NSS
NOT SOLD SEPARAT
Hex Nut.
18шт.
53
NSS
NOT SOLD SEPARAT
Cap Screw
5шт.
54
16010205
BOLT
Cap Screw
8шт.
55
NSS
NOT SOLD SEPARAT
Std Washer., Z.P.
4шт.
56
NSS
NOT SOLD SEPARAT
BOLT, Hex., 5/8"-11 x 2 1/2", G5
1шт.
57
NSS
NOT SOLD SEPARAT
NC Hex Nut
1шт.
58
NSS
NOT SOLD SEPARAT
NC, Cap Screw
1шт.
59
NSS
NOT SOLD SEPARAT
NC, Hex Nut.
24шт.
60
NSS
NOT SOLD SEPARAT
NC, Cap Screw
12шт.
61
NSS
NOT SOLD SEPARAT
Cotter Pin
13шт.
62
14816180
HEADED PIN
1 Dia. x 3, Clevis
2шт.
63
14816261
CLEVIS
1 x 3-1/4, Pin
1шт.
64
14816426
CLEVIS
1 x 5-1/4, Pin
1шт.
65
14820357
CLEVIS
1-1/4 Dia. x 5-1/8, Pin
6шт.
66
17620030
WASHER,32.15mm ID x 47.63mm OD x 10mm Thk
1-1/4 Dia. Washer
4шт.
67
06221340
LOCK NUT
Jam
1шт.
68
14032409
NUT
1-1/2, NC, Hex, Jam
2шт.
69
NSS
NOT SOLD SEPARAT
Cotter Pin 3/16 x 2-1/2, Obsolete
1шт.
70
NSS
NOT SOLD SEPARAT
NC Hex Nut
8шт.
71
NSS
NOT SOLD SEPARAT
NC Cap Screw
2шт.
72
16008245
BOLT
NC, Cap
2шт.
73
17506010
CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk
Z.P.
4шт.
74
NSS
NOT SOLD SEPARAT
Standard Washer, Z.P.
4шт.
75
24117700
COMPRESSION SPRING
2шт.
76
44006200
BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L
4шт.
77
NSS
NOT SOLD SEPARAT
Cap Screw
4шт.
78
NSS
NOT SOLD SEPARAT
WASHER, LOCK, 3/8"
4шт.
79
NSS
NOT SOLD SEPARAT
Lock Nut
4шт.
80
NSS
NOT SOLD SEPARAT
NC, Hex Nut
2шт.
81
18534243
REFLECTOR
Amber
3шт.
82
16806045
SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"
3/8 x 1, NC, Square Head Set
2шт.
83
14022004
LOCK NUT
1-1/4 ACME, Jam
2шт.
83
NSS
NOT SOLD SEPARAT
1/4" x 2-1/4", Roll Pin
2шт.
84
18534107
DECAL
Patent
1шт.
85
214-1452
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
Worm Gear
1шт.
Выбрано товаров: 88
