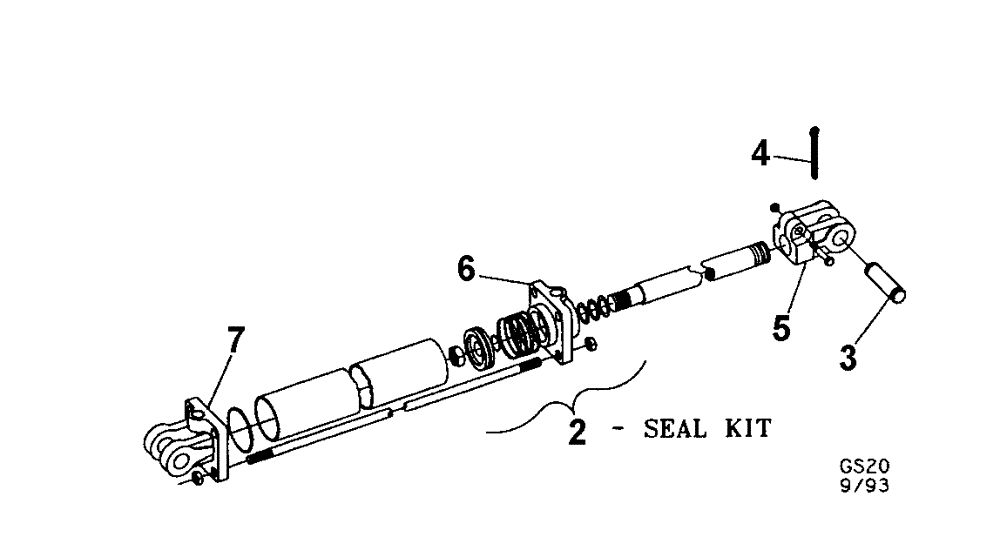

Запчасти Case IH TIGER-MATE (08-02) - 2500 PSI CYLINDER (08) - HYDRAULICS

1

25320040

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke

2" Bore x 4" Stroke

1шт.

1

25030242

CYLINDER ASSY.

3" Bore x 24" Stroke (34-1/4" Closed)

1шт.

1

25040242

CYLINDER ASSY.

4" Bore x 24" Stroke (34-1/2" Closed)

1шт.

1

25040300

CYLINDER

4" Bore x 30" Stroke (40-5/8" Closed)

1шт.

2

25803050

KIT

2" x 4"

1шт.

2

25803035

KIT

3" x 24"

1шт.

2

25804023

SEAL KIT

4" x 24"

1шт.

2

25804023

SEAL KIT

4" x 30"

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3"

2шт.

4

NSI

1/8" Cotter Pin

4шт.

5

25803030

CLEVIS

3" x 24"

1шт.

5

25804031

CLEVIS

4" x 24"

1шт.

5

25804031

CLEVIS

4" x 30"

1шт.

6

25803025

SHAFT

Cylinder Head, 3/4" SAE Ports, 3" x 24", Obsolete

1шт.

6

25804052

CYLINDER ASSY.

3/4" SAE Ports, 4" x 24", Obsolete

1шт.

6

25804052

CYLINDER ASSY.

3/4" SAE Ports, 4" x 30", Obsolete

1шт.

7

25803026

SHAFT

Base, 3/4" SAE Ports, 3" x 24"

1шт.

7

25804055

CYLINDER ASSY.

Base, 3/4" SAE Ports, 4" x 24"

1шт.

7

25804055

CYLINDER ASSY.

Base, 3/4" SAE Ports, 4" x 30"

1шт.
