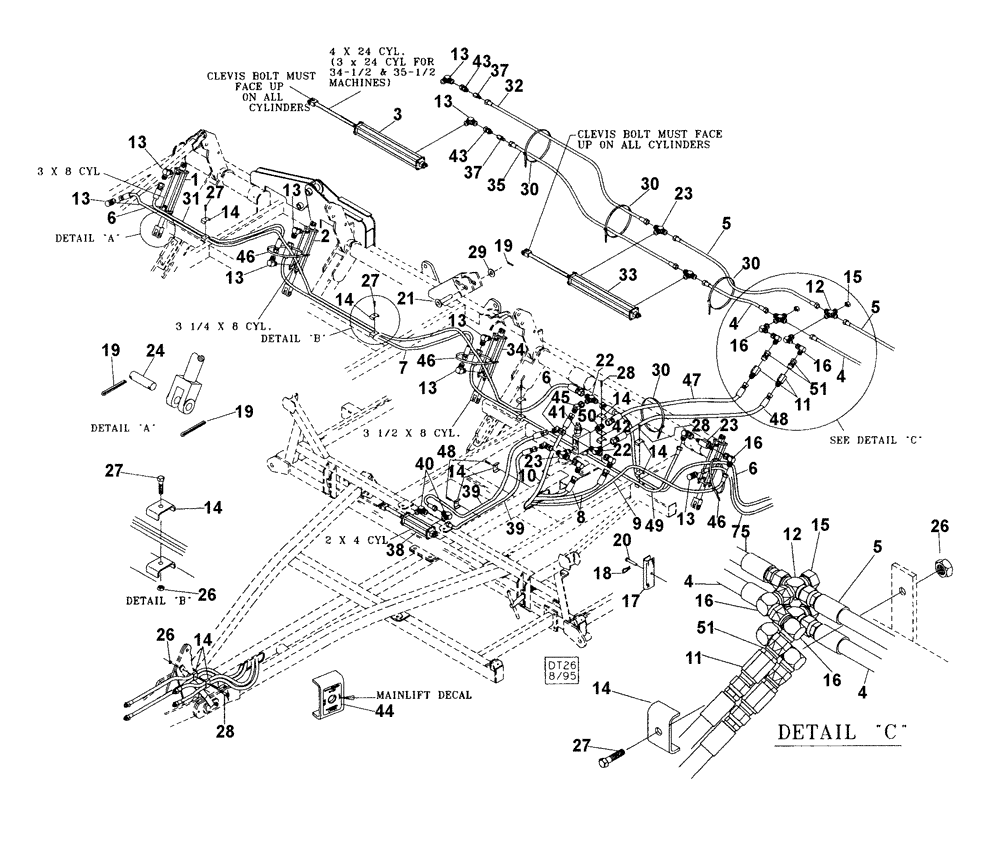

Запчасти Case IH TIGER-MATE (08-01) - HYDRAULICS (08) - HYDRAULICS

1

87423768

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8", Rephase

2шт.

87423768R

REMAN-HYD CYLINDER

TIGER-MATE® - DMI DOUBLE FOLD FIELD CULTIVATOR

2шт.

87423768C

CORE-HYD CYLINDER

Return Number

1шт.

2

87423770

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/4" x 8", Rephase

2шт.

87423770R

REMAN-HYD CYLINDER

TIGER-MATE®

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

3

25340241

CYLINDER ASSY.

4" x 24"

2шт.

For Machines With Serial Number 620000 & After

1шт.

25340242R

REMAN-HYD CYLINDER

TIGER-MATE® DMI Double Fold Field Cultivator, Reman for New P/N 25340241

2шт.

25340242C

CORE-HYD CYLINDER

Return Number

1шт.

3

25040242

CYLINDER ASSY.

4" x 24"

2шт.

For Machines With Serial Number 523649 & Before

1шт.

3

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3" x 24', 34-1/2 & 35-1/2 Machines

2шт.

For Machines With Serial Number 620000 & After

1шт.

3

25030242

CYLINDER ASSY.

3" x 24", 34-1/2 & 35-1/2 Machines

2шт.

For Machines With Serial Number 523649 & Before

1шт.

4

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

0.38" ID x 22.00", SAE 100R17

2шт.

5

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

0.38" ID x 55.00", SAE 100R17

2шт.

6

25600667

HYDRAULIC HOSE,0.38" ID x 187.00", SAE 100R17

- 31-1/2 - 35-1/2 Machines 0.38" ID x 187.00", SAE 100R17

2шт.

6

25600707

HYDRAULIC HOSE,0.38" ID x 246.00", SAE 100R17

- 38-1/2 - 40-1/2 Machines 0.38" ID x 246.00", SAE 100R17

2шт.

6

25600652

HYDRAULIC HOSE,0.38" ID x 270.00", SAE 100R17

42-1/2 - 45-1/2 Machines

2шт.

6

25600653

HYDRAULIC HOSE,0.38" ID x 294.00", SAE 100R17

- 46-1/2 - 48-1/2 Machines 0.38" ID x 294.00", SAE 100R17

2шт.

7

25600646

HYDRAULIC HOSE,0.38" ID x 118.00", SAE 100R17

- 7-1/2 Inner Wing 0.38" ID x 118.00", SAE 100R17

2шт.

7

25600709

HYDRAULIC HOSE,0.38" ID x 141.00", SAE 100R17

- 9-1/2 Inner Wing 0.38" ID x 141.00", SAE 100R17

2шт.

8

25610700

HYDRAULIC HOSE

3/8 x 280

2шт.

9

25610854

HYDRAULIC HOSE

1/2 x 350

1шт.

10

25610852

HYDRAULIC HOSE

1/2 x 292

1шт.

11

25407502

CONTROL VALVE

Throttle, Pink

2шт.

For Machines With Serial Number 620000 & After

1шт.

11

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle, Purple

2шт.

For Machines With Serial Numbers 221893 - 423123

1шт.

11

25405009

CONTROL VALVE

Throttle, Yellow

2шт.

For Machines With Serial Number 121843 & Before

1шт.

12

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

JICM Cross

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ELBOW, JICM x 3/4 SAEM, 90 Degree

1шт.

14

06200125

HOSE CLAMP

Painted

1шт.

15

218-755

CAP,37 Degree, 3/4"-16

CAP, 37º, 3/4"-16

2шт.

16

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

6шт.

17

04632710

STOP

Cylinder, Black

2шт.

18

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair

2шт.

19

432-1632

COTTER PIN,1/4" x 2"

2шт.

20

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/2", EL, Clevis

2шт.

21

14816360

CLEVIS

1" Dia. x 4-1/2", EL, Clevis

2шт.

22

218-594

TEE,3/4"-16, 37 Degree

3/4" JICM

2шт.

23

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

6шт.

24

25890100

KIT

1" Dia. x 2-3/4", EL

8шт.

25

25600734

HYDRAULIC HOSE,0.38" ID x 124.50", SAE 100R17

0.38" ID x 124.50", SAE 100R17

1шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

28

424-632

BOLT,Hex, 3/8" - 16 x 2", Gr 2

1шт.

29

495-21106

WASHER,1"

Standard

2шт.

30

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 6", Tie

1шт.

31

25600691

HYDRAULIC HOSE,9.65mm ID x 2514.6mm L, SAE 100R17

- 38-1/2 - 45-1/2 Machines 0.38" ID x 99.00", SAE 100R17

2шт.

31

25600734

HYDRAULIC HOSE,0.38" ID x 124.50", SAE 100R17

46-1/2 - 48-1/2 Machines 0.38" ID x 124.50", SAE 100R17

2шт.

32

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

- 38-1/2 - 40-1/2 Machines 0.38" ID x 93.00", SAE 100R17

2шт.

32

25600646

HYDRAULIC HOSE,0.38" ID x 118.00", SAE 100R17

- 42-1/2 - 48-1/2 Machines 0.38" ID x 118.00", SAE 100R17

2шт.

33

25340301

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 762mm Stroke

4 x 30

2шт.

For Machines With Serial Number 620000 & After

1шт.

33

25340301

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 762mm Stroke

4" x 30"

2шт.

For Machines With Serial Number 523649 & Before

1шт.

34

87423771

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 203.2mm Stroke

3-1/2" x 8", Rephase, Monarch

2шт.

84255910R

REMAN-HYD CYLINDER

TIGER-MATE®, Reman For New P/N 87423771

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

34

84255910

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

Replaces 87423771, Eagle

2шт.

84255910R

REMAN-HYD CYLINDER

TIGER-MATE®

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

35

25600691

HYDRAULIC HOSE,9.65mm ID x 2514.6mm L, SAE 100R17

- 38-1/2 - 40-1/2 Machines 0.38" ID x 99.00", SAE 100R17

2шт.

35

25600734

HYDRAULIC HOSE,0.38" ID x 124.50", SAE 100R17

42-1/2 - 48-1/2 Machines 0.38" ID x 124.50", SAE 100R17

2шт.

37

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle, Purple

4шт.

38

25320040

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke

2" x 4", 3000 PSI

1шт.

For Machines With Serial Number 620000 & After

1шт.

38

25320040

CYLINDER ASSY.,Double Acting, 28.7mm Rod, 101.6mm Stroke

2" x 4", 3000 PSI

1шт.

For Machines With Serial Number 523649 & Before

1шт.

38

25833050

SEAL KIT

2" x 4", 3000 psi

1шт.

38

25803050

KIT

2" x 4", 2500 psi

1шт.

39

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

0.38" ID x 78.00", SAE 100R17

2шт.

40

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

2шт.

41

25407500

VALVE PRESSURE RELIE

Sequence

1шт.

42

06200127

PLATE

1шт.

43

25707534

ADAPTER

3/4" SAEM x 3/4" JICF

4шт.

44

18534237

DECAL

Main Lift

1шт.

45

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

3шт.

46

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 24, Tie

1шт.

47

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

0.38" ID x 30.00", SAE 100R17

1шт.

48

25600614

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R17

0.38" ID x 36.00", SAE 100R17

1шт.

49

25600734

HYDRAULIC HOSE,0.38" ID x 124.50", SAE 100R17

0.38" ID x 124.50", SAE 100R17

1шт.

50

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4" SAEM x 3/4" JICM

1шт.

51

25707534

ADAPTER

3/4" SAEM x 3/4" JICF

2шт.
