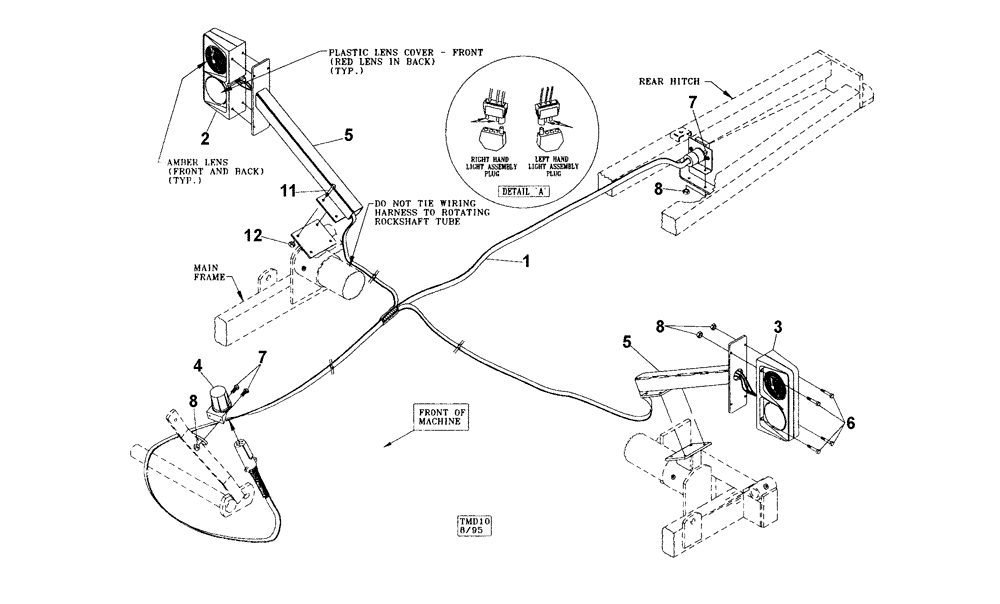

Запчасти Case IH TIGER-MATE (04-01) - WARNING & TAIL LIGHT KIT (FOR MACHINES WITH SERIAL NUMBER #620044 & AFTER) (04) - ELECTRICAL SYSTEMS

1

27601251

WIRE HARNESS

1шт.

2

27601212

LIGHT ASSY.

RH

1шт.

3

27601213

LIGHT ASSY.

LH

1шт.

4

27601214

HOLDER

Plug Storage

1шт.

5

06200210

SUPPORT

Light

2шт.

5

06200220

BRACKET

Light

2шт.

6

16004055

BOLT

Hex., 1/4"-20 x 1 1/4", G5

8шт.

7

NSS

NOT SOLD SEPARAT

NC, Hex Bolt, 1/4"-20 x 3/4"

4шт.

8

NSS

NOT SOLD SEPARAT

1/4" , NC, Hex Bolt., Lock

12шт.

9

NSS

NOT SOLD SEPARAT

11", Plastic Hose Tie, (Not Shown)

1шт.

10

NSS

NOT SOLD SEPARAT

Plastic Hose Tie, 28" Not Shown

1шт.

11

NSS

NOT SOLD SEPARAT

NC, Hex Bolt., 5/16"-18 x 1"

8шт.

12

NSS

NOT SOLD SEPARAT

NC, Hex Bolt., Lock, 5/16"

8шт.
