(09-14) - SPIKE TOOTH HARROW

Запчасти Case IH TIGER-MATE (09-14) - SPIKE TOOTH HARROW (09) - CHASSIS/ATTACHMENTS

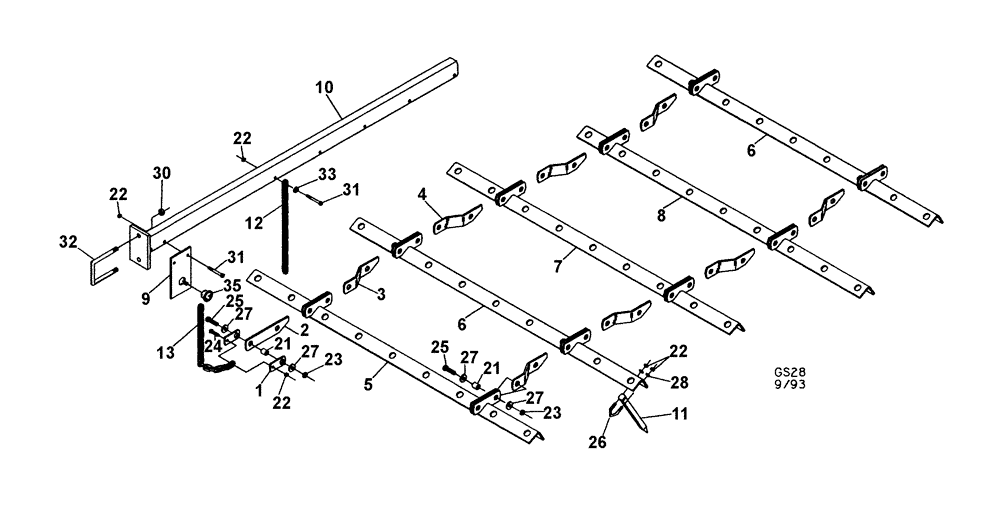

Схема запчастей Case IH TIGER-MATE - (09-14) - SPIKE TOOTH HARROW (09) - CHASSIS/ATTACHMENTS
7
21
35
25
31
28
7
4
26
33
23
23
9
27
11
2
13
10
22
2
24
25
22
12
8
27
25
21
33
22
30
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

06260066

LINK

Connecting

4шт.

2

06260067

LINK

Straight

2шт.

3

06260068

LINK

RH

4шт.

4

06260069

LINK

LH

4шт.

5

06260061

CHANNEL

6 Spike, 1st Bar

1шт.

5

06260071

CHANNEL

7 Spike, 1st Bar

1шт.

5

06260091

CHANNEL

9 Spike, 1st Bar

1шт.

5

06260111

CHANNEL

11 Spike, 1st Bar

1шт.

6

06260062

CHANNEL

6 Spike, 2nd & 5th Bar

2шт.

6

06260072

CHANNEL

7 Spike, 2nd & 5th Bar

2шт.

6

06260092

CHANNEL

9 Spike, 2nd & 5th Bar

2шт.

6

06260112

CHANNEL

11 Spike, 2nd & 5th Bar

2шт.

7

06260063

CHANNEL

6 Spike, 3rd Bar

1шт.

7

06260073

CHANNEL

7 Spike, 3rd Bar

1шт.

7

06260093

CHANNEL

9 Spike, 3rd Bar

1шт.

7

06260113

CHANNEL

11 Spike, 3rd Bar

1шт.

8

06260064

BAR

6 Spike, 4th Bar

1шт.

8

06260074

CHANNEL

7 Spike, 4th Bar

1шт.

8

06260094

CHANNEL

9 Spike, 4th Bar

1шт.

8

06260114

CHANNEL

11 Spike, 4th Bar

1шт.

9

06260020

PLATE

Chain Tow

2шт.

10

06260010

CHANNEL

Spike

2шт.

11

33407513

SHOVEL

Harrow, Spike

1шт.

12

22004221

CHAIN

Lift, 1/4" x 22-1/2"

10шт.

13

22004341

CHAIN

Pull, 1/4" x 30-1/2"

2шт.

21

02323002

BUSHING

Heat Treated

20шт.

22

NSS

NOT SOLD SEPARAT

Hex Nut., 3/8"-16

1шт.

23

NSS

NOT SOLD SEPARAT

Hex Nut., 1/2"-13, NC

20шт.

24

16006065

BOLT

Hex., 3/8"-16 x 1 1/2", NC, G5

2шт.

25

16008075

BOLT

Hex., 1/2"-13 x 1 3/4", NC, G5

20шт.

26

16306050

U-BOLT

3/8" x 1-1/16" x 2-1/8"

1шт.

27

NSS

NOT SOLD SEPARAT

1/2" Flat Washer

40шт.

28

NSS

NOT SOLD SEPARAT

Lock Nut, 3/8"

1шт.

30

NSS

NOT SOLD SEPARAT

NC, Hex Nut., 5/8"-11

4шт.

31

16006125

BOLT

3/8"-16 x 3",NC, G5

14шт.

32

16310009

U-BOLT

BOLT "U" 5/8" x 4" x 4-1/2"

2шт.

33

NSS

NOT SOLD SEPARAT

Flat Washer, 3/8"

10шт.

35

30000170

LUG

5/16" Dia.

21шт.
