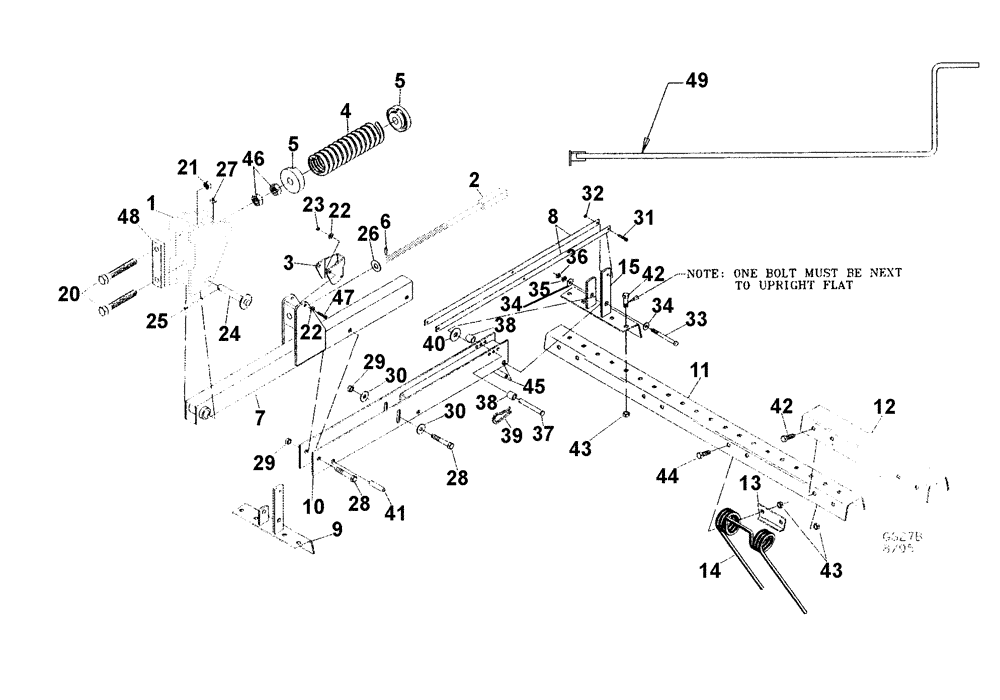

Запчасти Case IH TIGER-MATE (09-13) - COIL TINE HARROW 1995 & AFTER PRODUCTION (09) - CHASSIS/ATTACHMENTS

1

06250304

TINE

Bracket

2шт.

2

06250347

THREADED ROD

2шт.

3

06250331

BRACKET

Adjustment

2шт.

4

24143900

SPRING

Compression

2шт.

5

20090102

SPRING BOX

Casting

2шт.

6

NSS

NOT SOLD SEPARAT

Spring Pin, 1/8" x 1"

2шт.

7

06250318

TUBE

2шт.

8

06250358

LINK

Tine

4шт.

9

06250150

CHANNEL

Mount

4шт.

10

06250328

LINKAGE

Pivot

2шт.

11

06250041

CHANNEL

4 Tine

3шт.

11

06250051

CHANNEL

5 Tine

3шт.

11

06250061

CHANNEL

6 Tine

3шт.

11

06250071

CHANNEL

7 Tine

3шт.

12

06250180

CHANNEL

Splice

1шт.

13

06250200

CLAMP

1шт.

14

33404416

TINE

Coil

1шт.

15

06250155

CHANNEL

Rear

2шт.

20

16010205

BOLT

Hex, 5/8" x 5" NC, GD 5

4шт.

21

NSS

NOT SOLD SEPARAT

Lock Nut, NC 5/8" NC

4шт.

22

NSS

NOT SOLD SEPARAT

Lock Nut, 5/16"

2шт.

23

NSS

NOT SOLD SEPARAT

Lock Nut, 5/16",NC

2шт.

24

14816340

CLEVIS PIN

1" x 4", EL

2шт.

25

NSS

NOT SOLD SEPARAT

Cotter Pin 1/4" x 1-1/2"

2шт.

26

17612000

BUSHING

3/4" Ga

2шт.

27

NSS

NOT SOLD SEPARAT

Grease Zerk

2шт.

28

NSS

NOT SOLD SEPARAT

NC, Cap Screw, 1/2" x 3"

4шт.

29

NSS

NOT SOLD SEPARAT

NC, Hex Nut., 1/2"

4шт.

30

NSS

NOT SOLD SEPARAT

Flat Washer, 1/2"

4шт.

31

NSS

NOT SOLD SEPARAT

NC, Cap Screw, 3/8" x 1-3/4"

6шт.

32

NSS

NOT SOLD SEPARAT

NC, Hex Lock Nut, 3/8"

6шт.

33

16006165

SCREW

3/8" x 4" NC, Gd 5

6шт.

34

NSS

NOT SOLD SEPARAT

Flat Washer, 3/8"

12шт.

35

NSS

NOT SOLD SEPARAT

Lock Nut, 3/8"

6шт.

36

NSS

NOT SOLD SEPARAT

Hex Nut., 3/8",NC

6шт.

37

14810290

HEADED PIN

3/8, x 4.4, EL, Clevis

2шт.

38

06250210

BUSHING

Stop

4шт.

39

NSS

NOT SOLD SEPARAT

Hair Pin, 1/8" x 2"

2шт.

40

NSS

NOT SOLD SEPARAT

Flat Washer 5/8"

6шт.

41

06250170

SPACER

Pivot

4шт.

42

NSS

NOT SOLD SEPARAT

NC, Cap Screw 1/2" x 1 - 1/4"

1шт.

43

NSS

NOT SOLD SEPARAT

NC 1/2", Hex Lock Nut

1шт.

44

16008065

BOLT

Hex, 1/2" x 1 - 1/2",Gd 5

1шт.

45

NSS

NOT SOLD SEPARAT

Washer 3/4"

2шт.

46

NSS

NOT SOLD SEPARAT

NC 3/4", Hex Lock Nut

4шт.

47

NSS

NOT SOLD SEPARAT

HHCS, 5/16" x 1 - 1/2", G2

2шт.

48

06250333

WASHER

Flat

2шт.

49

06250395

CRANK

Adjustment

1шт.
