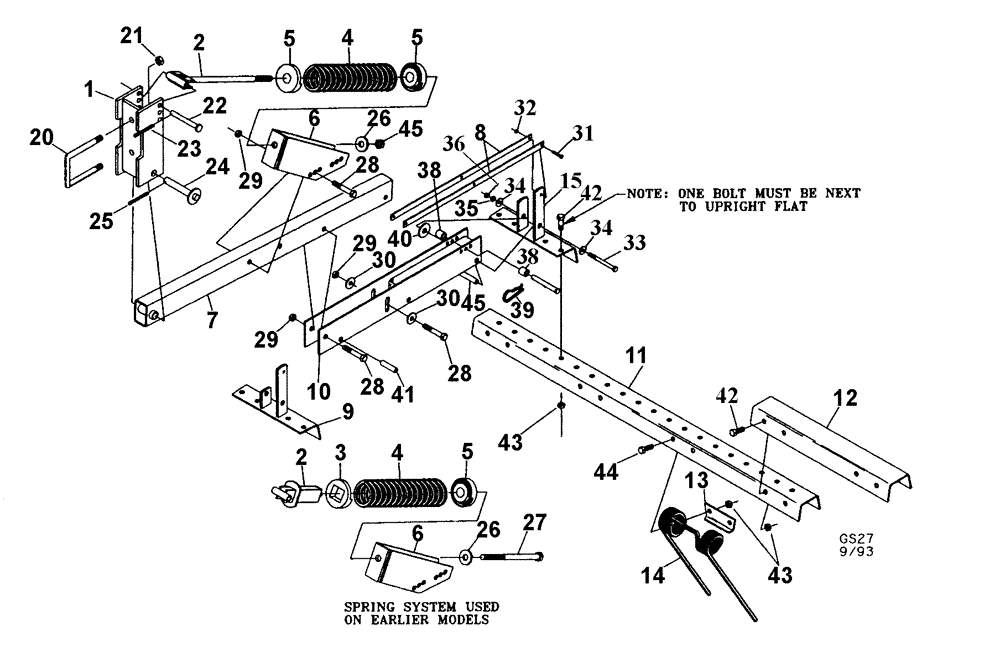

Запчасти Case IH TIGER-MATE (09-12) - COIL TINE HARROW PRE-1995 (09) - CHASSIS/ATTACHMENTS

1

06250100

BRACKET

Mounting

2шт.

2

06250220

SPRING BOX

Holder, Square

2шт.

2

06250140

SPRING BOX

Holder, Used On Earlier Models

2шт.

3

20090110

SPRING BOX

Holder

2шт.

4

24143900

SPRING

Compression

2шт.

5

20090100

HOLDER

Spring Casting

2шт.

6

06250110

BRACKET

Spring Support

2шт.

7

06250120

TUBE

2шт.

8

06250160

LINK

Tine

4шт.

9

06250150

CHANNEL

Mount

4шт.

9

06250150

CHANNEL

Mount, Thru 1993 Models

6шт.

10

06250130

LINKAGE

Pivot

2шт.

11

06250041

CHANNEL

4 Tine

3шт.

11

06250051

CHANNEL

5 Tine

3шт.

11

06250061

CHANNEL

6 Tine

3шт.

11

06250071

CHANNEL

7 Tine

3шт.

12

06250180

CHANNEL

Splice

1шт.

13

06250200

CLAMP

1шт.

14

33404416

TINE

Coil

1шт.

15

06250155

CHANNEL

Rear Mount

2шт.

20

16310009

U-BOLT

BOLT "U" 5/8" x 4" x 4-1/2"

2шт.

21

NSS

NOT SOLD SEPARAT

Lock Nut, 5/8" X 4" X 4-1/2"

4шт.

22

14808361

CLEVIS

1/2" x 4-1/16", EL, Pin

2шт.

23

NSS

NOT SOLD SEPARAT

1/8" x 1-1/2", Cotter Pin

2шт.

24

14812324

CLEVIS

3/4" x 4", EL, Pin

2шт.

25

NSS

NOT SOLD SEPARAT

Cotter Pin, 1/4" x 1-1/2" (14700801s

2шт.

26

17411011

WASHER,17.2mm ID x 32mm OD x 4.37mm Thk

Thick, 11/16" ID x .16"

2шт.

27

16010225

SCREW

5/8" x 5-1/2" NC Bolt Gd. 5, Used On Earlier Models

2шт.

28

NSS

NOT SOLD SEPARAT

NC, Cap Screw, 1/2" x 3"

8шт.

29

NSS

NOT SOLD SEPARAT

NC, Hex Nut., 1/2"

8шт.

30

NSS

NOT SOLD SEPARAT

Flat Washer, 1/2"

4шт.

31

NSS

NOT SOLD SEPARAT

NC, Cap Screw, 3/8" x 1-3/4"

6шт.

32

NSS

NOT SOLD SEPARAT

NC Hex Nut., Lock, 3/8"

6шт.

32

86992211

NUT

1/4", NC, Hex, Lock, 1989 Model

6шт.

33

16006165

SCREW

3/8" x 4" NC, Gd5

6шт.

34

NSS

NOT SOLD SEPARAT

Flat Washer, 3/8"

12шт.

35

NSS

NOT SOLD SEPARAT

Lock Nut, 3/8"

6шт.

36

NSS

NOT SOLD SEPARAT

3/8" NC Hex Nut

6шт.

37

14810290

HEADED PIN

5/8" x 4.4", EL, Clevis

2шт.

37

14810270

CLEVIS

5/8" x 3-1/4", EL, Pin, 1990-1993 Models

2шт.

37

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2" x 3-5/8", EL, 1989 Model

2шт.

38

06250210

BUSHING

Stop

4шт.

38

06250210

BUSHING

Stop, 1990-1993 Models

2шт.

38

06250190

BUSHING

Stop, 1989 Model

2шт.

39

NSS

NOT SOLD SEPARAT

1/8" x 2", Hair Pin

2шт.

40

NSS

NOT SOLD SEPARAT

5/8" Flat Washer

6шт.

41

06250170

SPACER

Pivot

4шт.

41

06250170

SPACER

Pivot, Thru 1993

6шт.

42

NSS

NOT SOLD SEPARAT

NC, Cap Screw, 1/2" x 1-1/4"

1шт.

43

NSS

NOT SOLD SEPARAT

NC, Hex Lock Nut

1шт.

44

16008065

BOLT

Hex., 1/2"-13 x 1 1/2",NC, G5

1шт.

45

06250195

BUSHING

Pivot

2шт.
