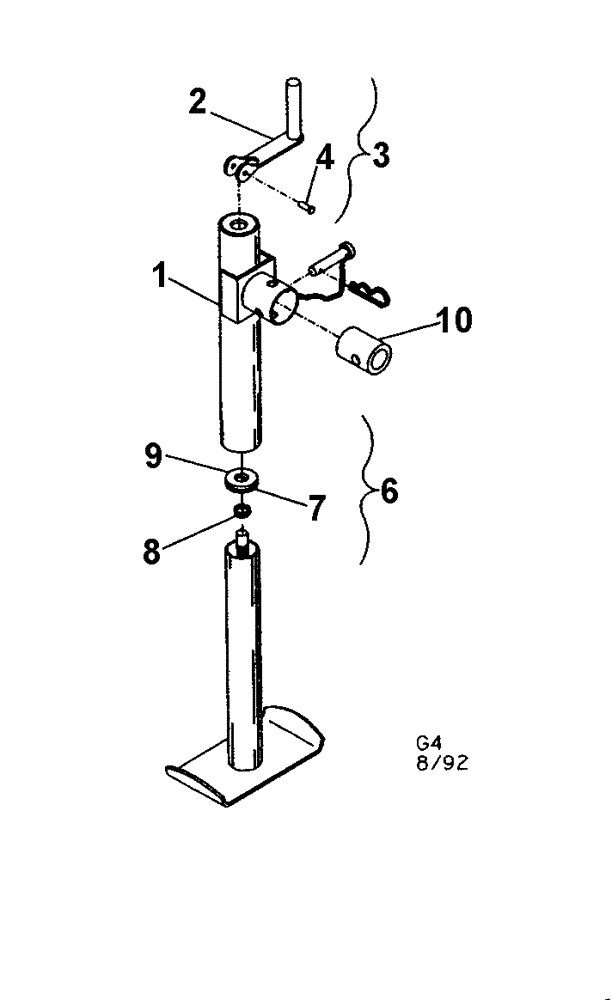

Запчасти Case IH TIGER-MATE (09-11) - JACK (09) - CHASSIS/ATTACHMENTS

1

32252000

JACK ASSY.

5000

1шт.

1

32220000

JACK

2000 replaced by 32230000

1шт.

2

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

3

32230100

PACKAGE

Hancle Replacement, Inc. 2, & 4 - 5

1шт.

4

NSS

NOT SOLD SEPARAT

Standard Bolt 1/4" x 1"

1шт.

5

NSS

NOT SOLD SEPARAT

Lock Nut 1/4"

1шт.

6

32230200

COULTER

Inner Ram Kit, 5000, Inc. 7, 8 & 9

1шт.

7

NSS

NOT SOLD SEPARAT

Thrust Washer

1шт.

6

32230300

REPAIR KIT

Inner Ram Kit, 3000, Inc. 7, 8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

Felt Washer

2шт.

9

NSS

NOT SOLD SEPARAT

Thrust Bearing

1шт.

10

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting

1шт.
