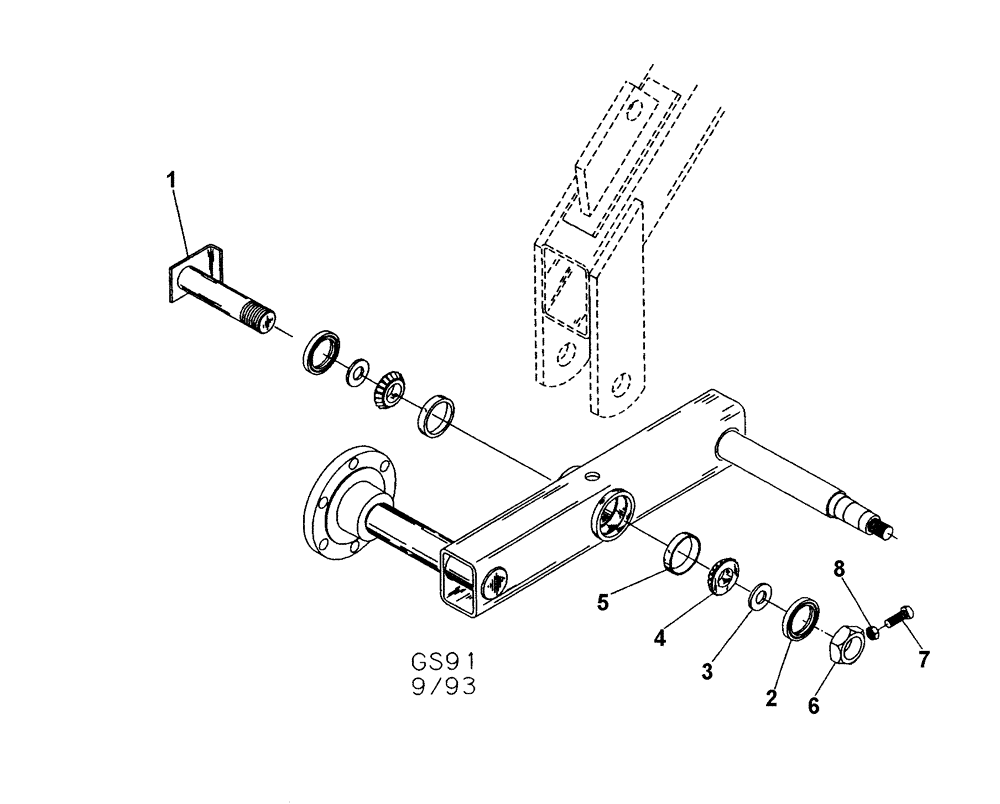

Запчасти Case IH TIGER-MATE (09-10) - WALKING BEAM SERVICE KIT (09) - CHASSIS/ATTACHMENTS

1

06401040

BEARING ASSY

Walking service

1шт.

1

06400290

SPECIAL PIN

Axle

1шт.

2

21932090

SEAL

Bore 2.094", CR20952

2шт.

3

06201420

SPACER

Seal

2шт.

4

21871500

ROLLER BEARING,1.5" ID x 2.56" OD x 0.71"

Bore 1.50", Timken # LM29749

2шт.

5

21882561

BEARING, CUP,1.5005" ID x 2.5635" OD x 0.71"

2.56" OD, Timken # LM29710

2шт.

6

14032409

NUT

Jam, 1-1/2", NC, Hex

1шт.

7

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

NC, 3/8" x 1" Square Head Set

1шт.

8

14030601

JAM NUT

NC Hex.3/8", Jam

1шт.
