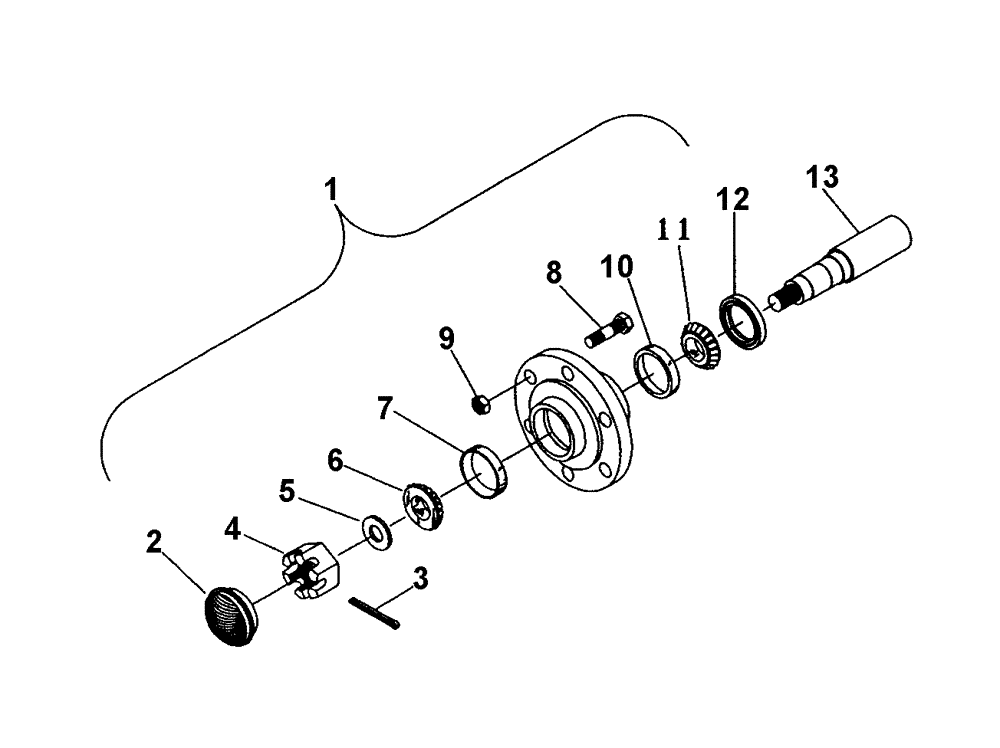

Запчасти Case IH TIGER-MATE (09-09) - W545 HUB & SPINDLE (09) - CHASSIS/ATTACHMENTS

1

28015501

HUB ASSY.

W545

1шт.

2

28480330

DUST CAP

1шт.

3

14700403

COTTER PIN

1/8 x 1-1/2, Obsolete

1шт.

4

14051202

SLOTTED NUT

3/4" , NF

1шт.

5

17112000

WASHER

3/4", SAE

1шт.

6

21872170

BEARING CONE

Outer, L44649

1шт.

7

21881980

BEARING, CUP

Outer, L44610

1шт.

8

14080802

NUT

1/2", NF, Wheel

5шт.

9

16408083

STUD

1/2" x 1-7/8", NF, Lug Bolt

5шт.

10

21882360

TAPERED BEARING

Inner Cup, L68111

1шт.

11

21871384

TAPERED BEARING

Inner Cone, L68149

1шт.

12

21931752

OIL SEAL

17146

1шт.

13

28015501

HUB ASSY.

Spindle

1шт.
