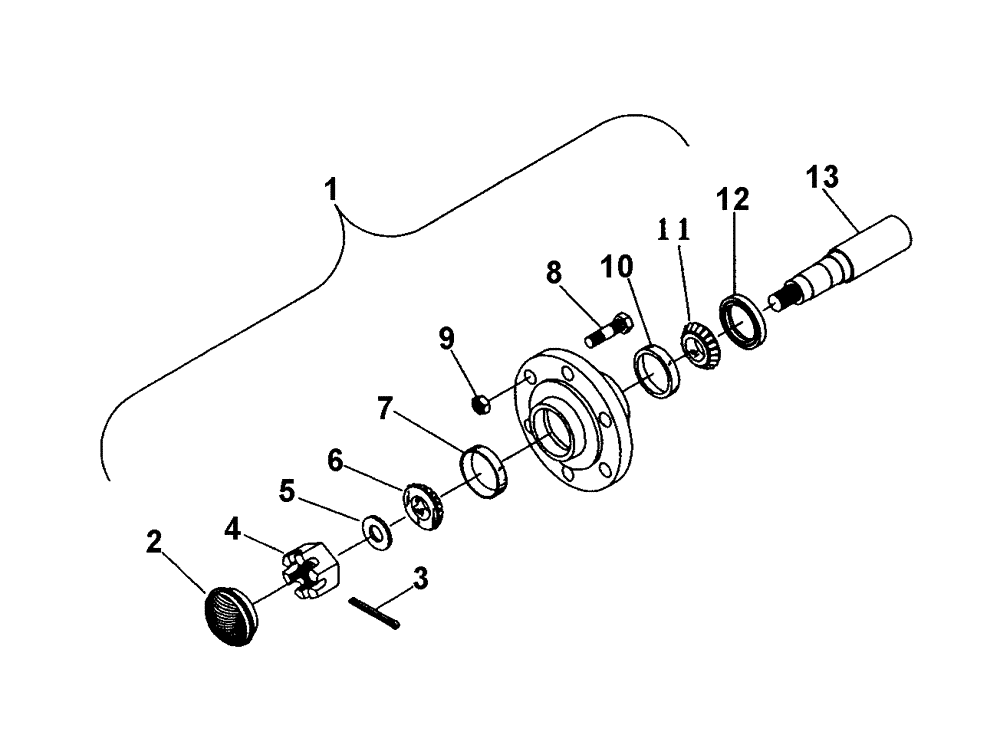

Запчасти Case IH TIGER-MATE (09-08) - STABILIZER WHEEL HUB (09) - CHASSIS/ATTACHMENTS

1

28122250

HUB ASSY.

5 Bolt, 1990 & Before, Start Serial: 021282

1шт.

2

28480330

DUST CAP

1шт.

3

14700403

COTTER PIN

1/8 x 1-1/2, Obsolete

1шт.

4

14051202

SLOTTED NUT

3/4, NF

1шт.

5

17112000

WASHER

3/4", SAE

1шт.

6

21872170

BEARING CONE

Outer, L44649

1шт.

7

21881980

BEARING, CUP

Outer, L44610

1шт.

8

14080802

NUT

1/2", NF, Drive In

5шт.

9

16408063

LUG

1/2", NF Drive in, Bolt

5шт.

9

16408083

STUD

Bolt, 1/2" X 1-7/8" NF

1шт.

10

21881980

BEARING, CUP

Inner, L44610

1шт.

10

21882360

TAPERED BEARING

L68111, Inner

1шт.

11

21872170

BEARING CONE

Inner, L44649

1шт.

11

21871384

TAPERED BEARING

L68149, Inner

1шт.

12

21931275

SEAL

DICO 8998

1шт.

12

21931752

OIL SEAL

L17146

1шт.

13

28322251

SIDE LAMP ASSY

Spindle, Obsolete

1шт.

13

28015501

HUB ASSY.

Spindle

1шт.
