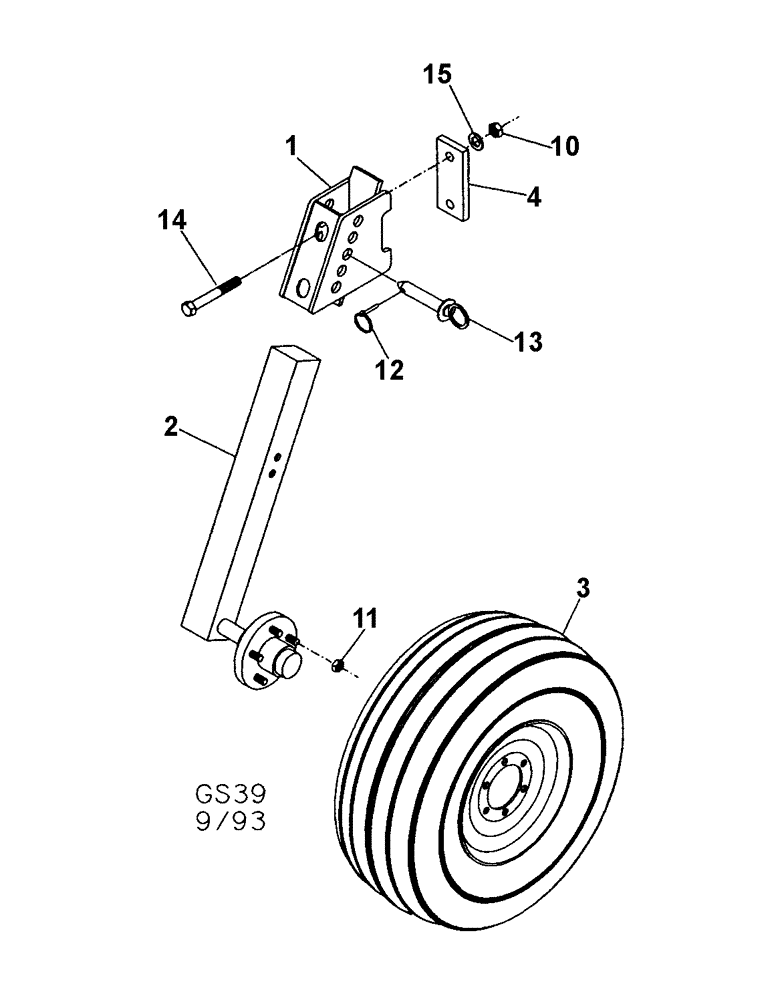

Запчасти Case IH TIGER-MATE (09-07) - WING STABILIZER WHEEL (09) - CHASSIS/ATTACHMENTS

1

06222020

BRACKET

Stabilizer Mounting

1шт.

2

06222030

BRACKET

Stabilizer Wheel Tube

1шт.

3

10008100

WHEEL ASSY.

20.5" x 8", Tire

1шт.

3

10106101

LAND WHEEL

10 x 6, Wheel Only, Not Shown

1шт.

4

05021000

PLATE

Upper Shank

1шт.

10

NSS

NOT SOLD SEPARAT

3/4", NC, Hex, Nut, Gd. 2

2шт.

11

14080802

NUT

1/2", NF, Tapered Lug

5шт.

12

14710814

SMALL PIN

1/4" x 1-3/4", Klik

1шт.

13

14816348

PIN,25.4mm OD x 133.35mm L

5/8" x 3-1/8"

1шт.

14

16012225

BOLT

3/4" x 5-1/2", NC, Cap, Gd 5

2шт.

15

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

2шт.
