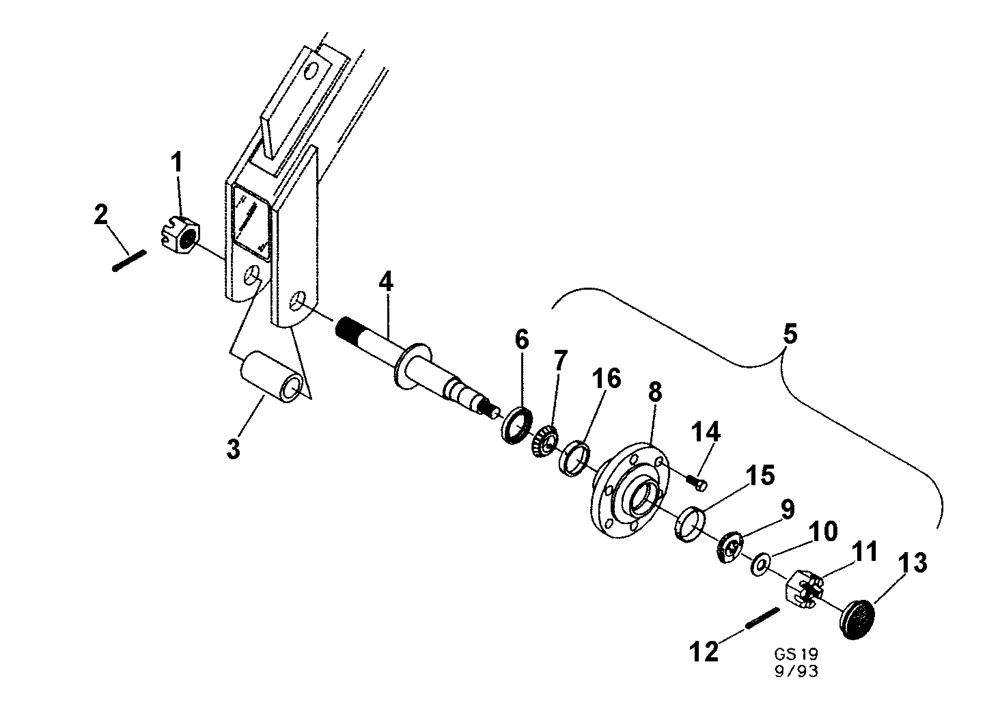

Запчасти Case IH TIGER-MATE (09-05) - 709 SINGLE AXLE (09) - CHASSIS/ATTACHMENTS

1

14052401

NUT

1-1/2", NC, Slotted

2шт.

2

NSS

NOT SOLD SEPARAT

1/4" x 2" Cotter Pin

2шт.

3

06201450

SPACER

Tube

2шт.

4

28370962

SPINDLE

Weld

2шт.

5

28070962

HUB ASSY.

Spindle, 709

1шт.

6

21931500

OIL SEAL

CR15190,1.50" ID x 2.62" OD

2шт.

7

21871380

BEARING CONE

Bore 1.38", LM48548

2шт.

8

28270900

HUB ASSY.

With Bearing Cup, Q-709

2шт.

9

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

Bore 1.25" , LM67048

2шт.

10

17014002

WASHER

7/8"

2шт.

11

NSS

NOT SOLD SEPARAT

Slotted Nut, 7/8"

2шт.

12

NSS

NOT SOLD SEPARAT

Cotter Pin 5/32" x 1-1/2"

2шт.

13

28477700

HUB CAP

2шт.

14

16408053

SPECIAL BOLT

Lug, 1/2" x 1-5/32"

12шт.

15

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" OD, Timken LM67010

1шт.

16

21882560

BEARING, CUP

Timken LM48510, 2.56" OD

1шт.
