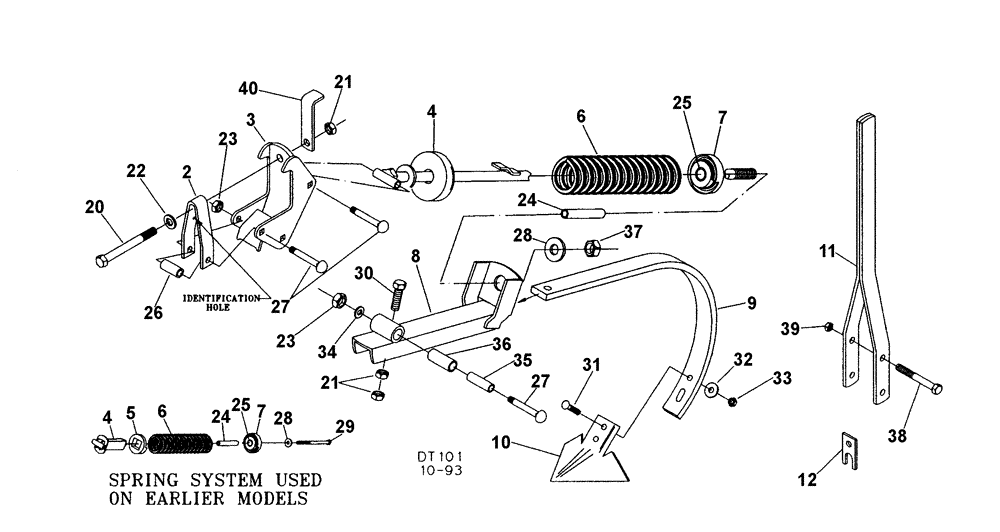

Запчасти Case IH TIGER-MATE (09-04) - SHANK (09) - CHASSIS/ATTACHMENTS

1

06210000

SHANK

Mount Assembly, Does Not Incl 9 - 12, 31 - 33, & 38 - 39

1шт.

1

06200009

SHANK

Assembly, Does Not Inc. 10, & 31 - 33

1шт.

2

06210150

BRACKET

1шт.

3

06210100

SHANK

Mount

1шт.

4

06210400

SPRING BOX

Holder

1шт.

4

06210300

SPRING BOX

Holder, Used On Earlier Models

1шт.

5

20090110

SPRING BOX

Holder, Used On Earlier Models

1шт.

6

24143891

COIL SPRING

Compression

1шт.

7

20090101

HOLDER

Inc. #25

1шт.

8

06210200

CHANNEL

1шт.

9

33017584

SHANK

1шт.

10

33200007

SWEEP

7

1шт.

10

33200009

SWEEP

9

1шт.

10

33200017

SWEEP

7, Low Crown

1шт.

11

06200040

LEVER ASSY.

Spring Compression

1шт.

12

06200042

SPACER

Plate

1шт.

20

16010245

BOLT

5/8" x 6", NC, Cap, Gd 5

1шт.

21

NSS

NOT SOLD SEPARAT

Hex Nut, 5/8"-11

3шт.

22

NSS

NOT SOLD SEPARAT

Flat Washer 5/8"

1шт.

23

NSS

NOT SOLD SEPARAT

Hex, Lock Nut, 1/2"

3шт.

24

06210370

BUSHING

1шт.

25

06210350

BUSHING

1шт.

26

06210170

TUBE,0.546" ID, 0.84" OD, 1.88" Length

1шт.

27

16108144

CARRIAGE BOLT,1/2" - 13 x 3 5/8", Gr 5

1/2 x 3-5/8, NC

3шт.

28

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16 x 1-3/8. Special

1шт.

29

16900832

BOLT

1/2 x 8, NC, Hex, Gd 5, Used On Earlier Models

1шт.

30

16010085

BOLT

5/8"-11 x 2", NC, G5

1шт.

31

16207060

PLOW BOLT

7/16" x 1-1/2", NC

2шт.

32

NSS

NOT SOLD SEPARAT

7/16", Flat Washer

2шт.

33

NSS

NOT SOLD SEPARAT

Hex, Nut, 7/16"-14, NC G5

2шт.

34

17208001

LOCK WASHER

1/2"

1шт.

35

06210250

TUBE,0.532" ID, 0.747" OD, 2.5" Length

3/4" OD, Heat Treated

1шт.

36

44007510

BUSHING,19.43mm ID x 25.78mm OD x 61.92mm L

3/4" ID, Connex, HT

1шт.

37

14020801

NUT

1/2", NC Heavy Duty, Hex

1шт.

38

16008201

BOLT

1/2" x 5, NC, Hex

2шт.

39

14000801

NUT,1/2"-13, G5

NUT, 1/2"-13, G5

2шт.

40

06220126

CLAMP BRACKET

Hose Guide

2шт.
