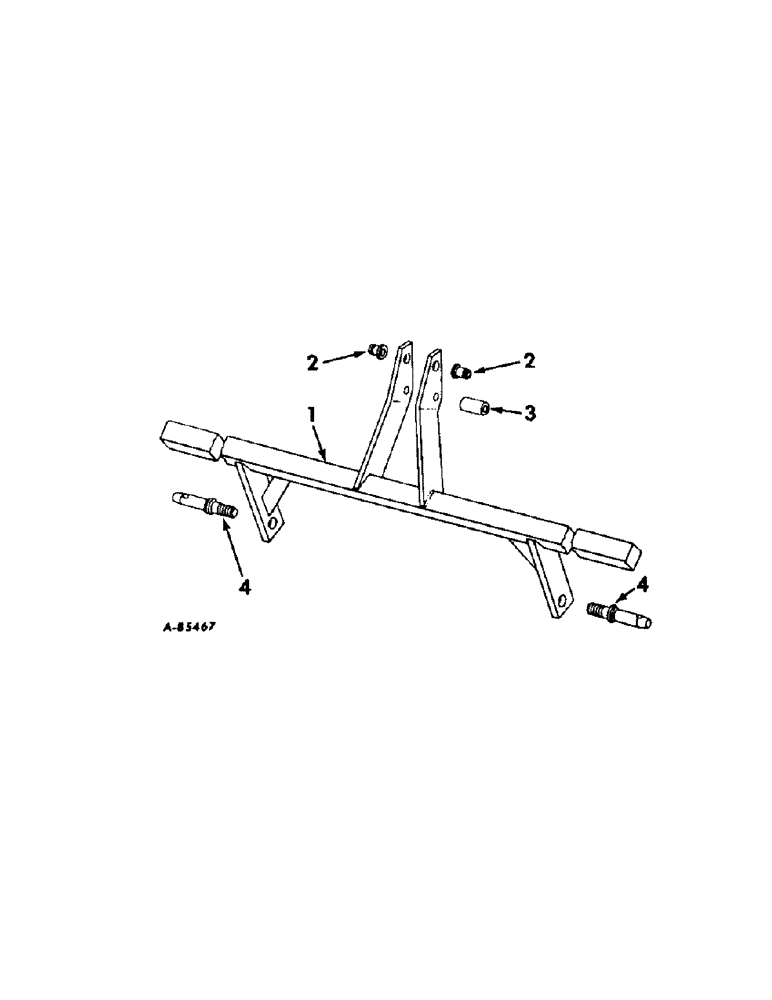

Запчасти Case IH INTERNATIONAL (A-56[A]) - REAR SECTIONS, SINGLE TOOL BAR REAR SECTION MAIN FRAME

1

483850R91

FRAME ASSY, main

1шт.

2

481074R1

BUSING, hitch bracket, category I, hitch

2шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, , upper arm bushing #100, Ext

2шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z pltd

2шт.

3

462425R1

SPACER

mast

1шт.

17724R1

BOLT, 3/4 x 4 in. mach

1шт.

220081

NUT

3/4 in.

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

4

472790R2

STUD

lower link, category II hitch

1шт.

427359

NUT,1 1/8"-12, G5

1-1/8 UNF C-Z pltd

2шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 in. C-Z pltd

2шт.

4

470511R1

STUD

lower, category I hitch

1шт.

426767

NUT,7/8"-14, G5

7/8UNF C-Z pltd

2шт.

131047

WASHER,7/8"

7/8"

1шт.
