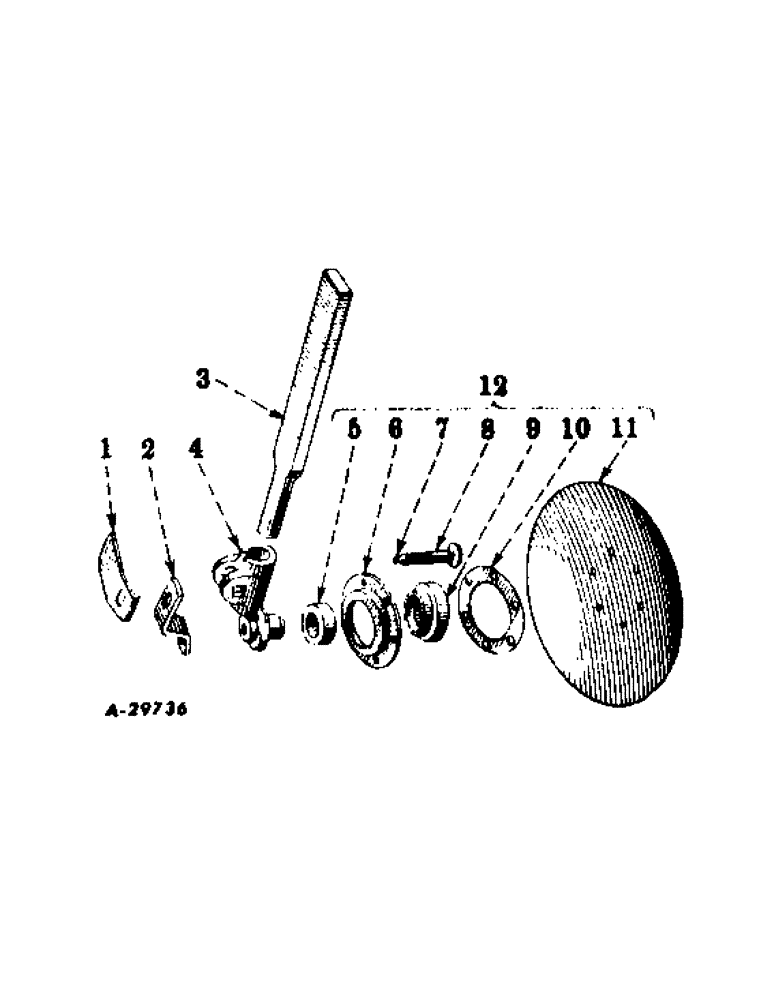

Запчасти Case IH INTERNATIONAL (A-54) - REAR SECTIONS, DISK WEEDERS AND SCRAPER, BALL BEARING

1

517690R1

BLADE, scraper

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

Q398

WASHER

.344 x .875 x .056 pln

1шт.

2

517689R1

SUPPORT, scraper blade

1шт.

3

517684R1

STANDARD, 1-1/2 x 9/16 in.

1шт.

3

521064R2

SUPPORT ASSY.

STANDARD, 1-1/2 x 5/8 in.

1шт.

4

517683R3

SUPPORT

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 in. sq-nk crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

5

SA6219

RUBBER SEAL

dust, between weeder support and bearing

1шт.

6

517685R1

RETAINER

HUB, ball bearing

1шт.

7

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, straight 3/16 in. drive type lubrication

1шт.

8

517687R2

BOLT,Carriage, 1/2" - 13 x 2 1/2"

disk hub, 1/2 x 2-1/2 in. spec crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

ST616

BALL BEARING,0.75" ID x 2.377" OD x 0.625"

BEARING, ball

1шт.

10

SA6222

GASKET

standard, between disk and bearing hub

1шт.

11

521970R21

DISK, 12 in. dia

1шт.

11

517686R31

DISC

DISK, 10 in. dia

1шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 in. rd-hd

6шт.

12

517688R92

DISC

DISK ASSEMBLY, 10 in. dia

1шт.

12

521972R92

DISC

DISK ASSEMBY, 12 in. dia

1шт.
