(A-51[B]) - REAR SECTIONS, DEER TONGUES, OFFSET BREAKOFF

Запчасти Case IH INTERNATIONAL (A-51[B]) - REAR SECTIONS, DEER TONGUES, OFFSET BREAKOFF

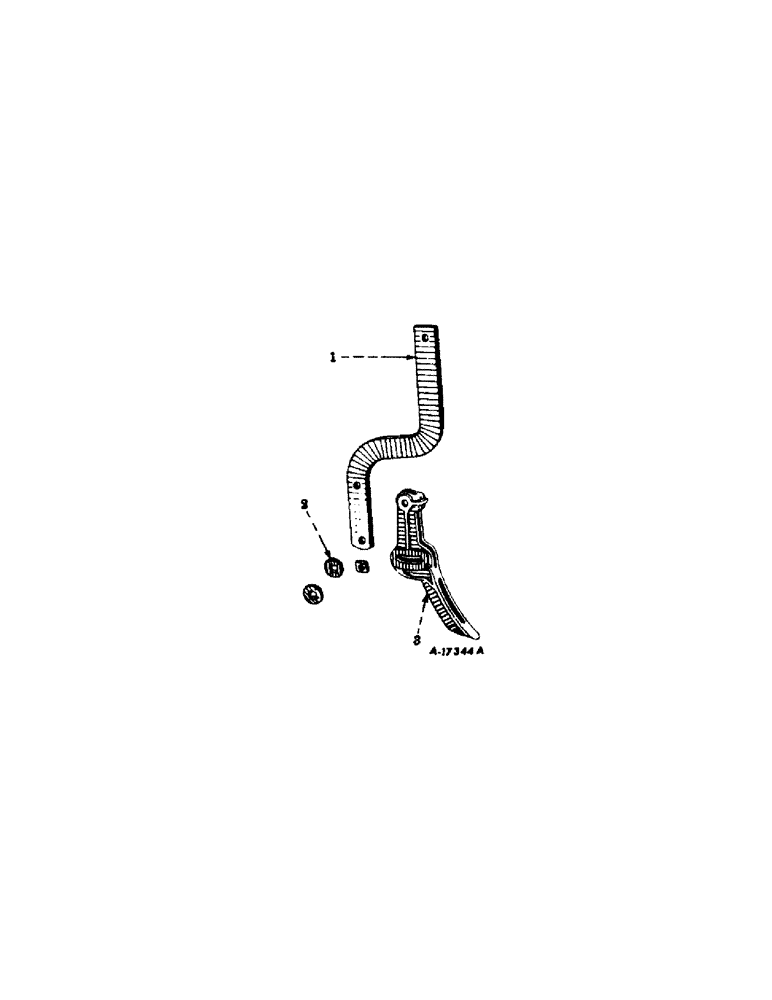

Схема запчастей Case IH INTERNATIONAL - (A-51[B]) - REAR SECTIONS, DEER TONGUES, OFFSET BREAKOFF
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

521061R1

STANDARD, offset, 1-1/2 x 5/8 in.

1шт.

1

511729R1

STANDARD, offset, 1-1/2 x 9/16 in.

1шт.

2

5693

LOCK NUT

WASHER, corrugated

1шт.

3

521089R1

BREAK-OFF, for 1-1/2 x 5/8 in. standard

1шт.

3

PO701B

BREAK-OFF for 1-1/2 x 9/16 in. standard

1шт.

Z211

PIN, break-off, wood

1шт.

15071R1

BOLT,Short NK, 3/8"-16 x 2", G2

3/8 x 2 in. sq-nk

1шт.

102635

NUT,3/8"-16, G5

2шт.
