(A-04) - REAR SECTIONS, TOOL BAR AND COUPLING BEAM

Запчасти Case IH INTERNATIONAL (A-04) - REAR SECTIONS, TOOL BAR AND COUPLING BEAM

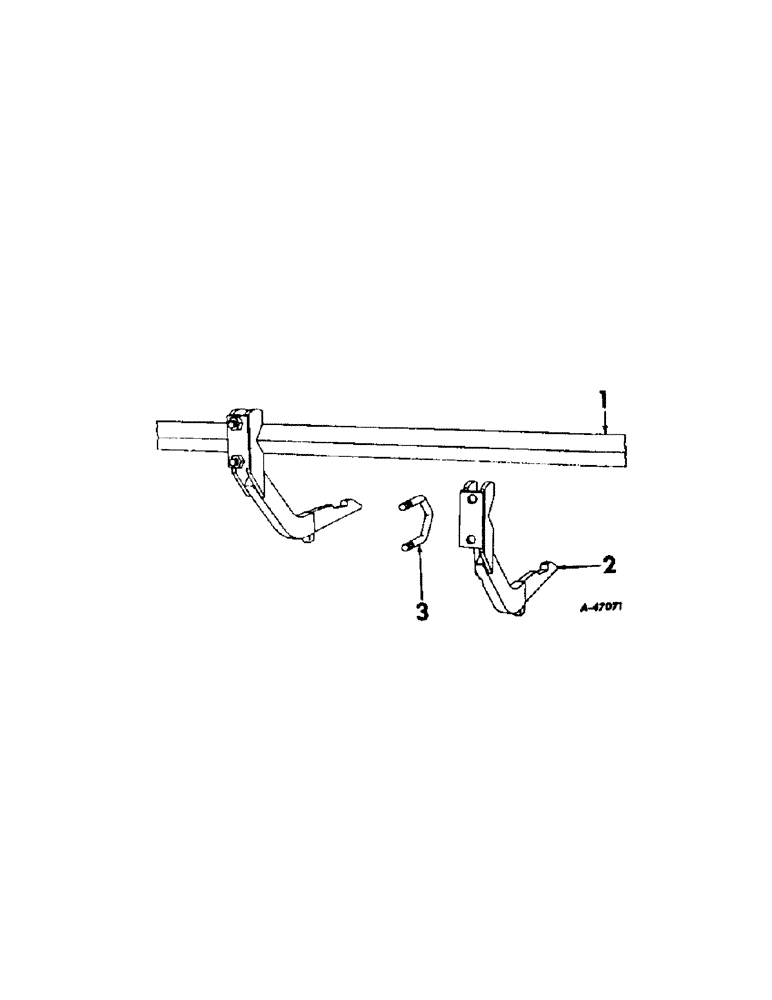

Схема запчастей Case IH INTERNATIONAL - (A-04) - REAR SECTIONS, TOOL BAR AND COUPLING BEAM
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

523463R91

TOOL BAR, main, 2-1/4 in. sq. 90 in. long

1шт.

1

523462R91

TOOL BAR, main, 2-1/4 in. sq. 124 in. long, special

1шт.

2

523455R91

BEAM, coupling

1шт.

3

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, attaching

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

467750R1

WASHER

25/32 x 1-1/2 in. x 11 ga C-Z

2шт.
