(A-51[A]) - REAR SECTIONS, DIAMOND POINTS

Запчасти Case IH INTERNATIONAL (A-51[A]) - REAR SECTIONS, DIAMOND POINTS

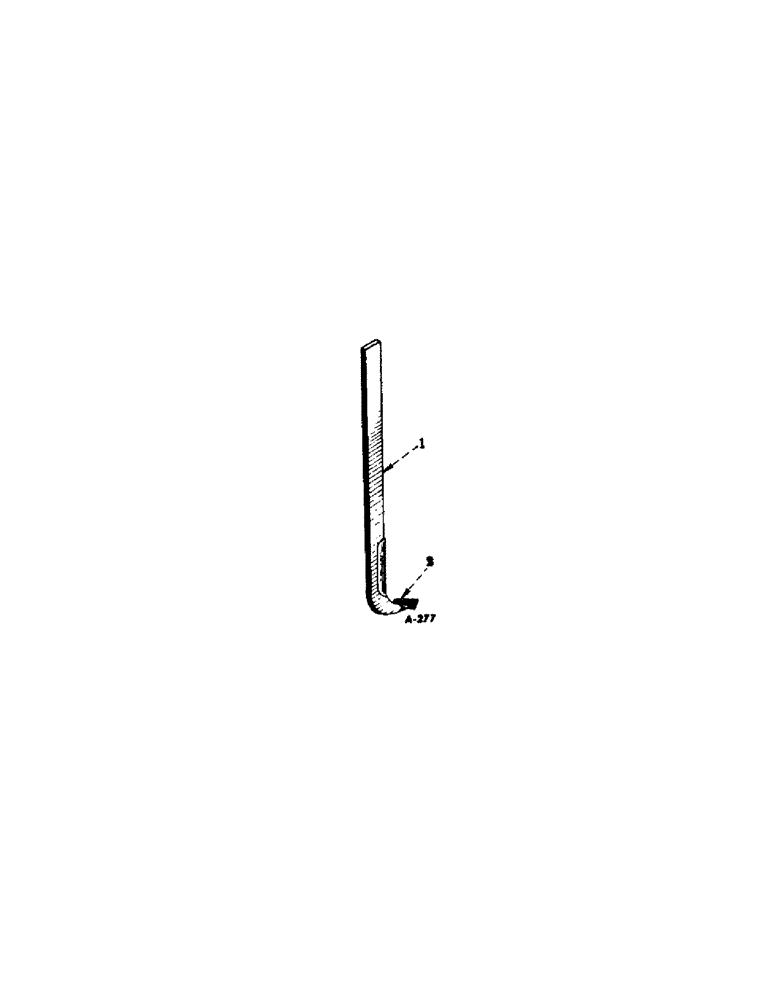

Схема запчастей Case IH INTERNATIONAL - (A-51[A]) - REAR SECTIONS, DIAMOND POINTS
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

26868B

SUPPORT ASSY.

STANDARD, 1-1/2 x 9/16 in.

1шт.

1

30736B

SUPPORT ASSY.

STANDARD, 2 x 5/8 in.

1шт.

1

521067R1

SUPPORT ASSY.

STANDARD, 1-1/2 x 5/8 in.

1шт.

2

PO26869

SHOVEL

POINT, diamond

1шт.

104169

RIVET, 1/4 x 1 in. 90 deg csk-hd

1шт.

104170

RIVET

1/4 x 1-1/8 in. csk-hd

1шт.

Выбрано товаров: 6
