Запчасти Case IH INTERNATIONAL (A-47[A]) - REAR SECTIONS, SPRING TEETH, DOUBLE

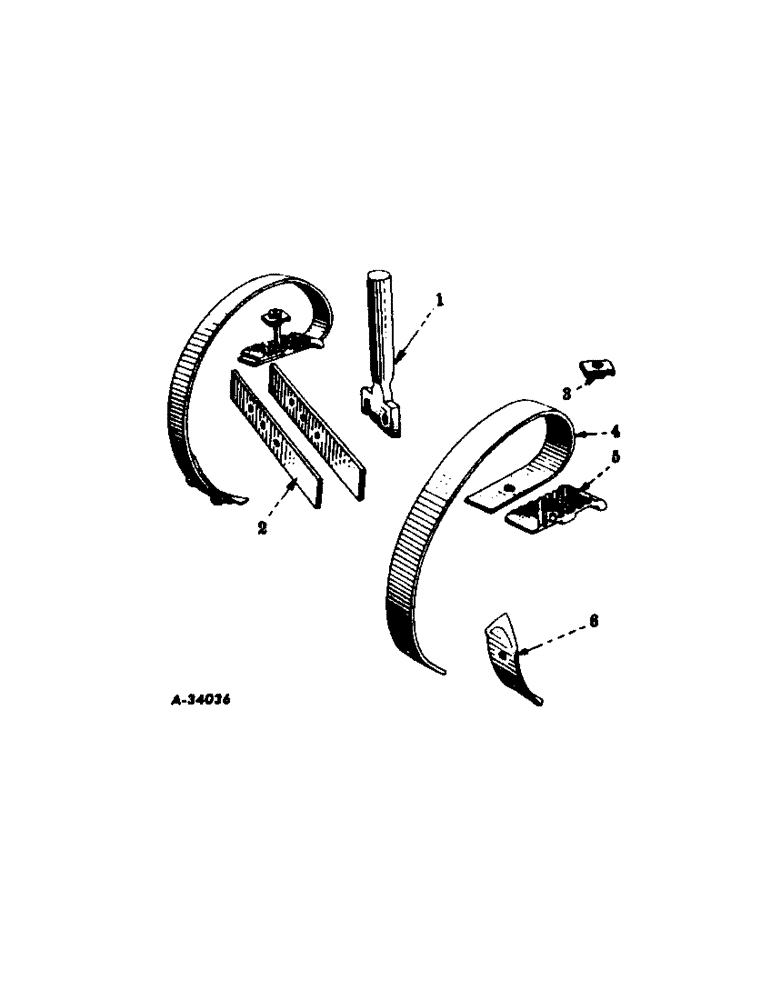

Схема запчастей Case IH INTERNATIONAL - (A-47[A]) - REAR SECTIONS, SPRING TEETH, DOUBLE
1
3
6
2
4
5

Артикул

Название

Примечание

Количество

1

28365BB

STANDARD, 1-1/4 in. dia

1шт.

2

29883B

BAR, frame

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2 x 1-3/4 in. mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

1293B

CLAMP

spring tooth bracket

1шт.

4

28361B

SPRING

TOOTH, spring

1шт.

5

1294B

BRACKET

spring tooth

1шт.

17649R1

BOLT, 7/16 x 3-1/4 in. mach

1шт.

NLS

NO LONGER SERVICED

7/16 in.

1шт.

6

25332B

SHOVEL

double point

1шт.

15554R1

BOLT,#3 Hd, 3/8" - 16 x 1"

3/8 x 1 in. no. 3 plow

2шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 in. no. 3 plow

2шт.

Выбрано товаров: 13
