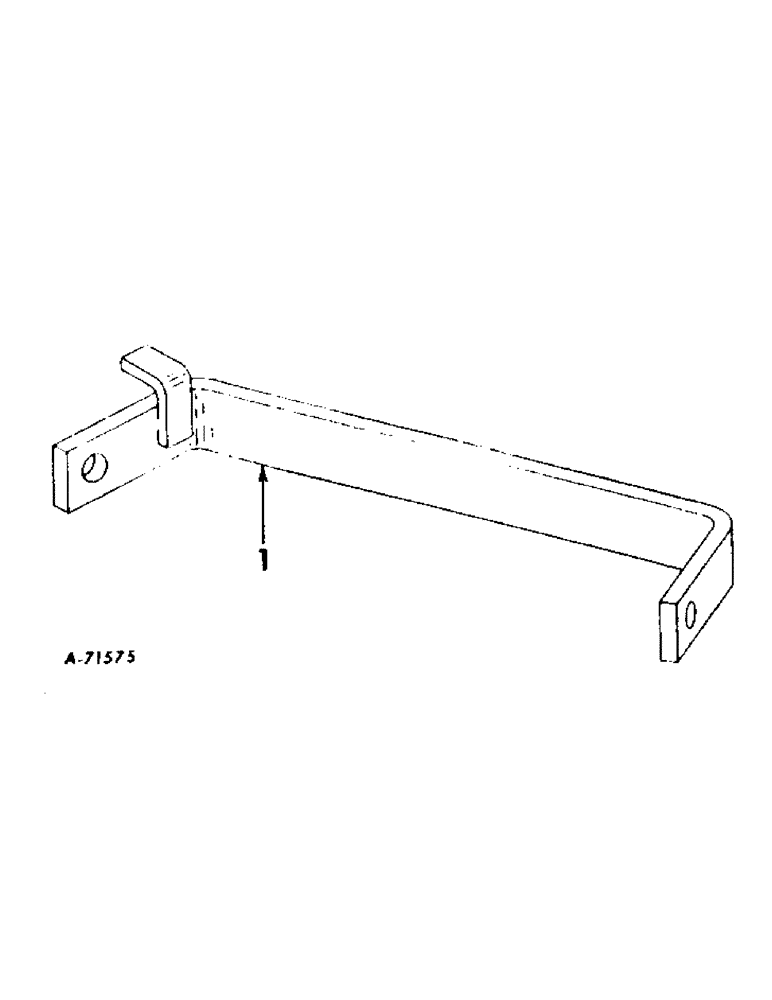

Запчасти Case IH INTERNATIONAL (A-46) - REAR SECTIONS, STABILIZER BAR

1

466035R11

BAR ASSEMBLY, stabilizer, for Farmall 404 tractors with category I hitch

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4 x 2-1/4 in. cap

2шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4 x 2-3/4, NC, gr 5 to - FIGURE DOESN'T EX

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

1

466034R11

BAR ASSEMBLY, stabilizer, for Farmall 504 tractors with category I hitch

1шт.

220081

NUT

3/4 in.

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

3/4 x 2-1/2 in. cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

1

471686R11

BAR ASSEMBLY, stabilizer, note

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

2шт.

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

SCREW, 3/4 x 2-3/4 in. cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

380580R91

PIN

ASSEMBLY, upper link, note

1шт.

380582R1

BUSHING

upper link, note

1шт.
