(A-45[A]) - REAR SECTIONS, JOCKEY ARCH, 28 TO 42 IN. ROWS

Запчасти Case IH INTERNATIONAL (A-45[A]) - REAR SECTIONS, JOCKEY ARCH, 28 TO 42 IN. ROWS

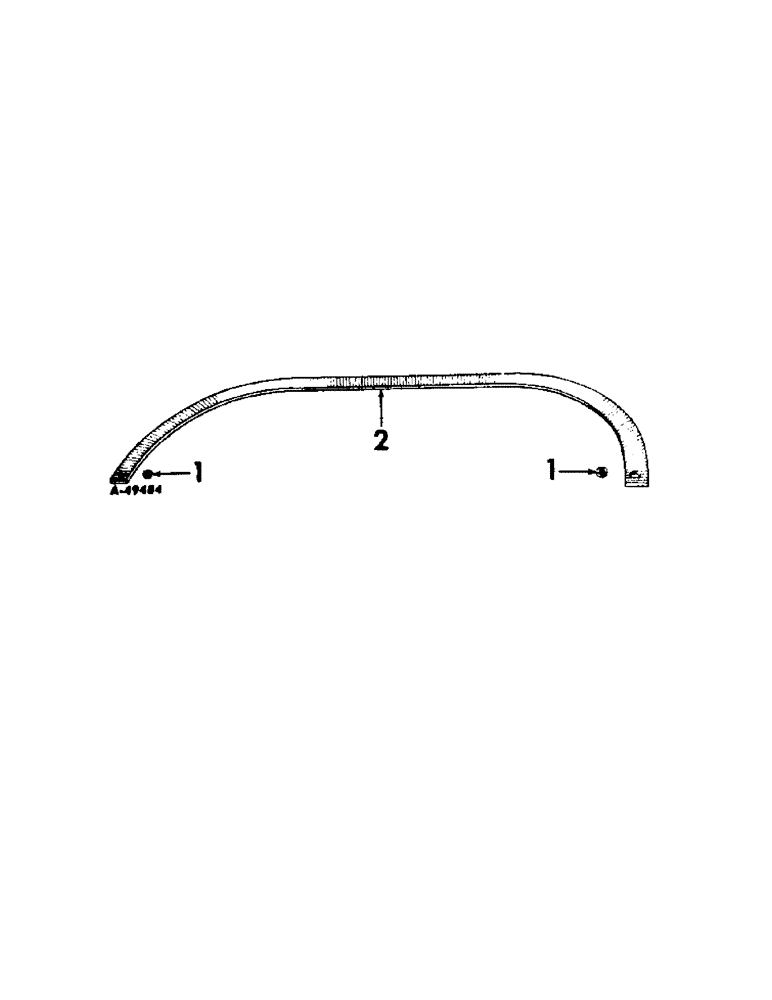

Схема запчастей Case IH INTERNATIONAL - (A-45[A]) - REAR SECTIONS, JOCKEY ARCH, 28 TO 42 IN. ROWS
2
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

513974R1

BUSHING

jockey arch

2шт.

2

524848R1

ARCH, jockey

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

PO10535

WASHER

17/32 x 1-1/4 in. x 11 ga

2шт.

Выбрано товаров: 6
