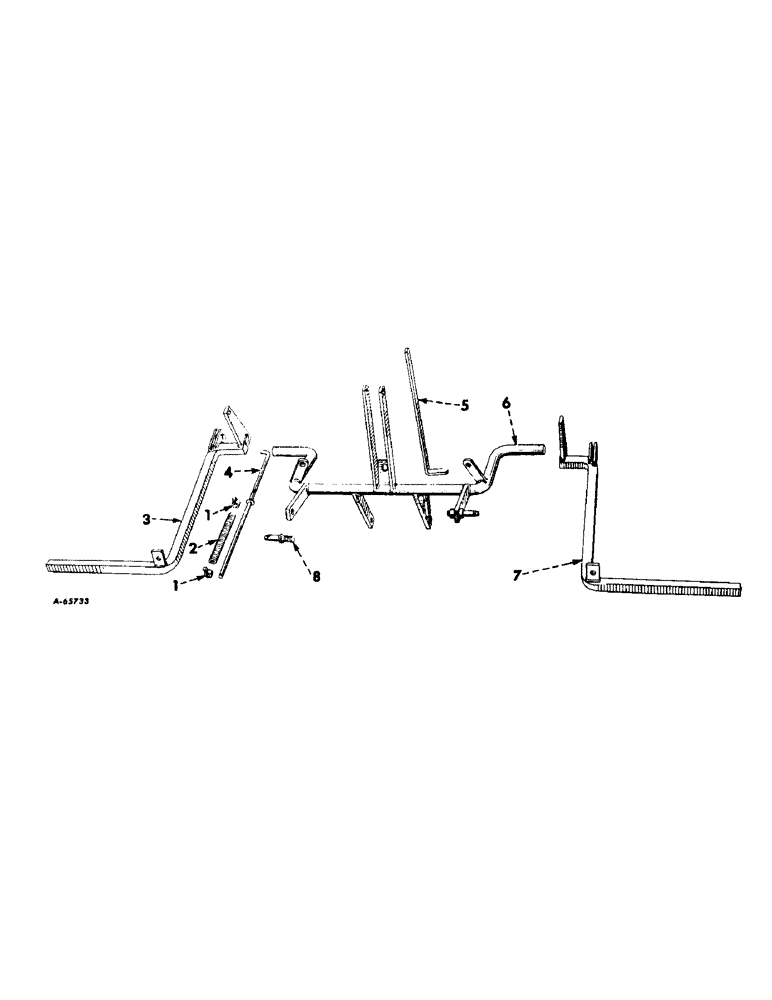

Запчасти Case IH INTERNATIONAL (A-44) - REAR SECTIONS, MAIN FRAME AND OUTER TOOL BAR

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

1шт.

2

PO23

SPRING

pressure rod

1шт.

3

524845R11

TOOL BAR, LH outer

1шт.

4

524820R11

ROD, lift and pressure

63шт.

4

471679R11

ROD, lift and pressure

63шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

524849R1

STAND, support

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

6

466028R91

FRAME, main, 36 to 42 in. rows

63шт.

6

471687R92

FRAME, main, 36 to 42 in. rows

63шт.

6

466033R92

FRAME, main, 28 to 42 in. rows

63шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

7

524846R11

TOOL BAR, RH outer

1шт.

8

525896R1

STUD

lower link

63шт.

426767

NUT,7/8"-14, G5

7/8UNF C-Z pltd

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

8

470511R1

STUD

lower link, category 1 hitch

63шт.

426767

NUT,7/8"-14, G5

7/8UNF C-Z pltd

1шт.

131047

WASHER,7/8"

7/8"

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 in. x .065 ga

1шт.

8

472790R2

STUD

lower link, category 11 hitch

63шт.

427359

NUT,1 1/8"-12, G5

1-1/8 in. UNF C-Z pltd

1шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 in. C-Z pltd lock

1шт.
