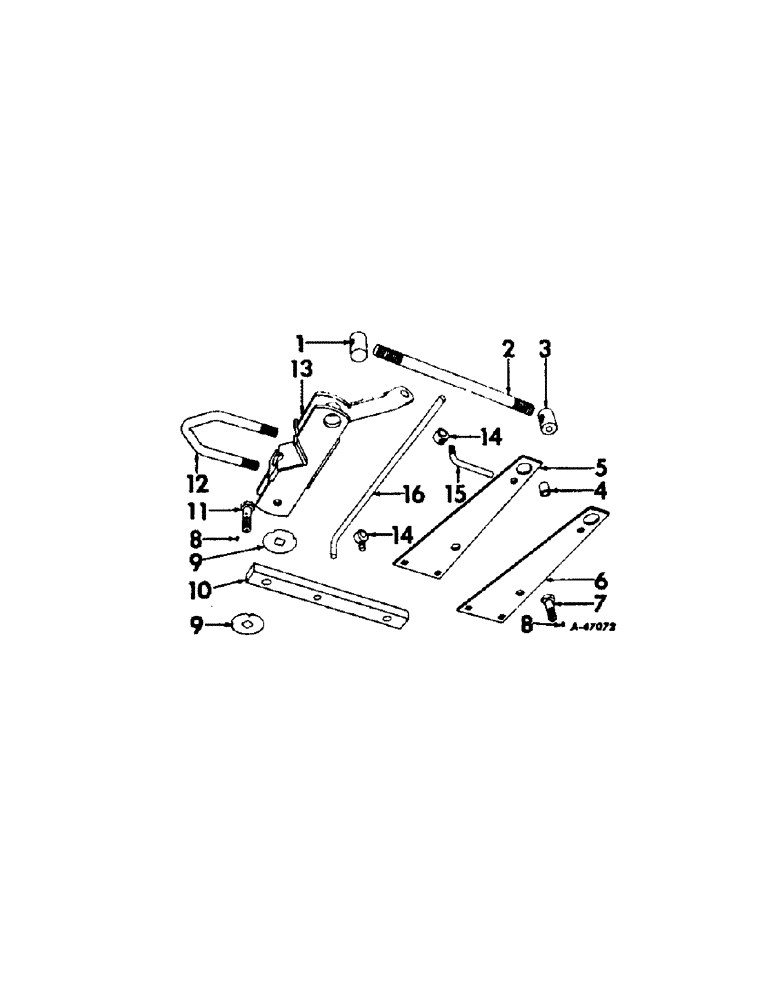

Запчасти Case IH INTERNATIONAL (A-04[B]) - REAR SECTIONS, PARALLEL LINK PLATES AND HEAD BRACKET

1

522509R1

BAR

SWIVEL, upper parallel link front LH thd

1шт.

2

523448R1

ROD

upper parallel

1шт.

3

522510R1

BAR

SWIVEL, upper parallel link rear, RH thd

1шт.

19286R1

BOLT, 1/2 x 3/4 in. cd-pltd mach

1шт.

4

522537R1

SPACER

tool bar attaching plate

1шт.

5

522521R1

PLATE, tool bar attaching, not tapped

1шт.

6

522520R1

PLATE, tool bar attaching, tapped RH

1шт.

523060R1

BOLT, 1/2 x 2-1/4 in. heat-treated crg

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 in. C-Z mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

522544R2

BOLT

lower parallel link rear pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/8 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4 in. straight lubrication

1шт.

9

522532R1

RETAINER

WASHER, lower parallel link bearing

1шт.

10

523456R1

LINK, lower parallel

1шт.

11

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower parallel link front pivot

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

12

522498R1

BOLT,U, 3/4" - 10 x 6 5/16"

U-BOLT, attaching

1шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

13

523451R91

BRACKET, head

1шт.

14

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

15

522499R1

BOLT, pressure rod clamping

1шт.

16

523449R1

ROD, pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.
