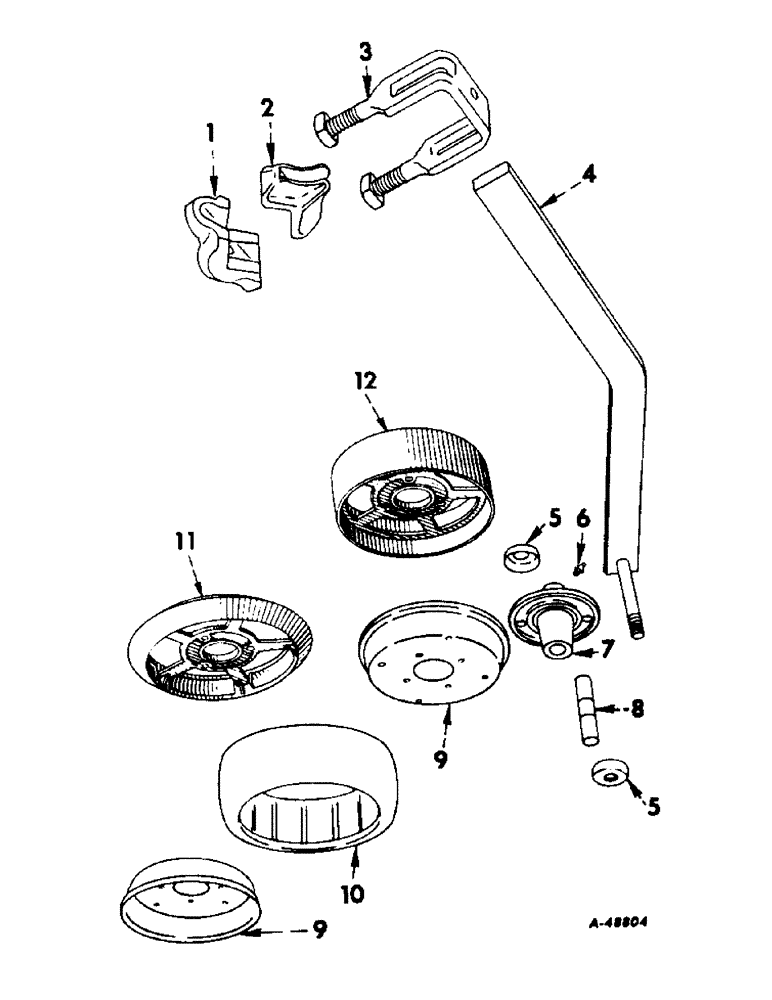

Запчасти Case IH INTERNATIONAL (A-41) - REAR SECTIONS, GAUGE WHEELS

1

518859R1

CLAMP

CAP, gauge wheel standard

1шт.

2

PO2988A

BLOCK, gauge wheel standard

1шт.

3

524166R11

U-BOLT W/NUTS, gauge wheel standard clamp

1шт.

4

523927R91

STANDARD ASSEMBLY, left

1шт.

4

523928R91

STANDARD ASSEMBLY, right

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/8 in. slt-hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

5

522371R1

WASHER

COLLAR, gauge wheel sand

1шт.

6

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive straight lubrication

1шт.

7

519029R21

HUB

gauge wheel

1шт.

8

519893R1

BUSHING

axle

1шт.

9

516491R2

RIM

wheel, zero-pressure tire

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 in. C-Z pltd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 in. C-Z pltd mach

4шт.

120376

NUT,5/16"-18, G5

8шт.

134238

WASHER

11/32 x 1 in. x 16 ga

1шт.

10

516492R1

TYRE/TIRE

TIRE, zero-pressure, 4.00 x 12 in.

1шт.

11

1688B

WHEEL, V-tire

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 type 1

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

12

1750B

WHEEL, flat tire

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 type 1

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.
